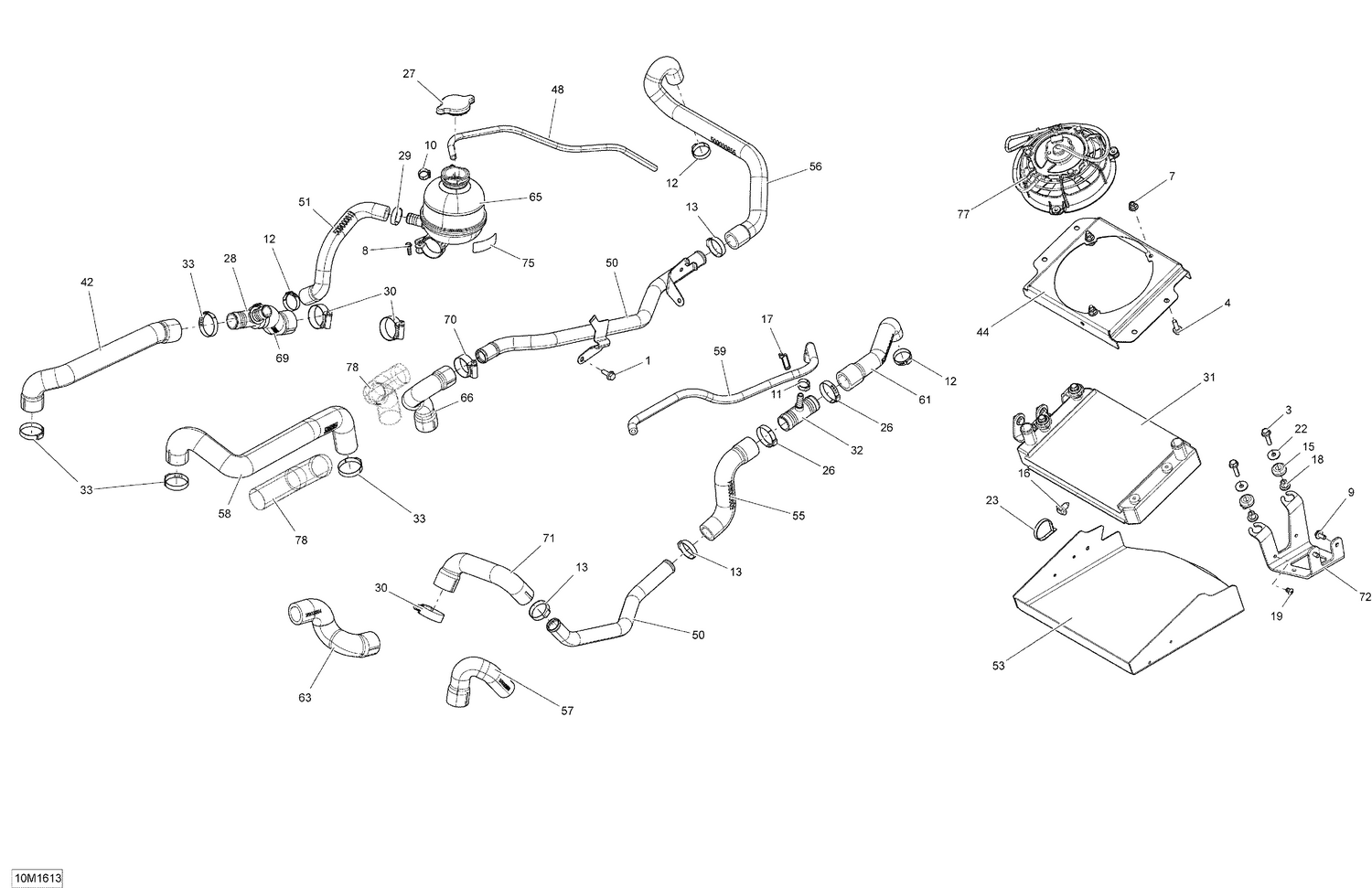

01- Cooling System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 9 | 250000574 | Hex. Flange Screw M6 X 12 |
| 10 | 293650025 | Oetiker Gear Clamp |
| 11 | 293650047 | Crimp Clamp, 15.3-706R |
| 13 | 293650141 | Oetiker Clamp |
| 15 | 709000582 | Grommet This part replaces 293720053. |
| 16 | 293730040 | Mount Dart |
| 17 | 293750002 | Tie Wrap 142 mm |
| 18 | 293900100 | Bushing |
| 19 | 390909100 | Avex Rivet |
| 22 | 250200082 | Flat Washer |
| 23 | 414115200 | Tie-Rap 180 mm |
| 26 | 509000162 | Gear Clamp |
| 27 | 509000180 | Radiator Pressure Cap |
| 28 | 509000372 | T-Fitting |
| 29 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 30 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 31 | 509000488 | Radiator |
| 32 | 509000510 | T-Fitting |
| 33 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 42 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 44 | 509000714 | Fan Support |
| 48 | 509000775 | Hose |
| 50 | 509000800 | Water Pipe |
| 51 | 509001063 | Filling Hose This part replaces 509000811. |
| 53 | 509000835 | Air Inlet Deflector |
| 54 | 509000836 | Engine Outlet Hose |
| 55 | 509000854 | Radiator Hose |
| 56 | 509000855 | Radiator Hose |
| 57 | 509000858 | Engine Outlet Hose |
| 58 | 509000859 | Radiator Hose |
| 59 | 509000860 | Breather Hose |
| 61 | 509000862 | Radiator Hose |
| 63 | 509000864 | Engine Inlet Hose |
| 64 | 509000875 | Cooling Tank |
| 65 | 509000881 | Cooling Tank |
| 66 | 509000888 | Engine Outlet Hose |
| 68 | 509000913 | Engine Outlet Hose |
| 69 | 509000921 | Radiator Hose |
| 70 | 509000931 | Gear Clamp |
| 71 | 509000932 | Engine Outlet Hose |
| 72 | 509000933 | Support |
| 73 | 509000934 | Support |
| 75 | 516005904 | Warning Decal |
| 77 | 709200573 | Fan |
