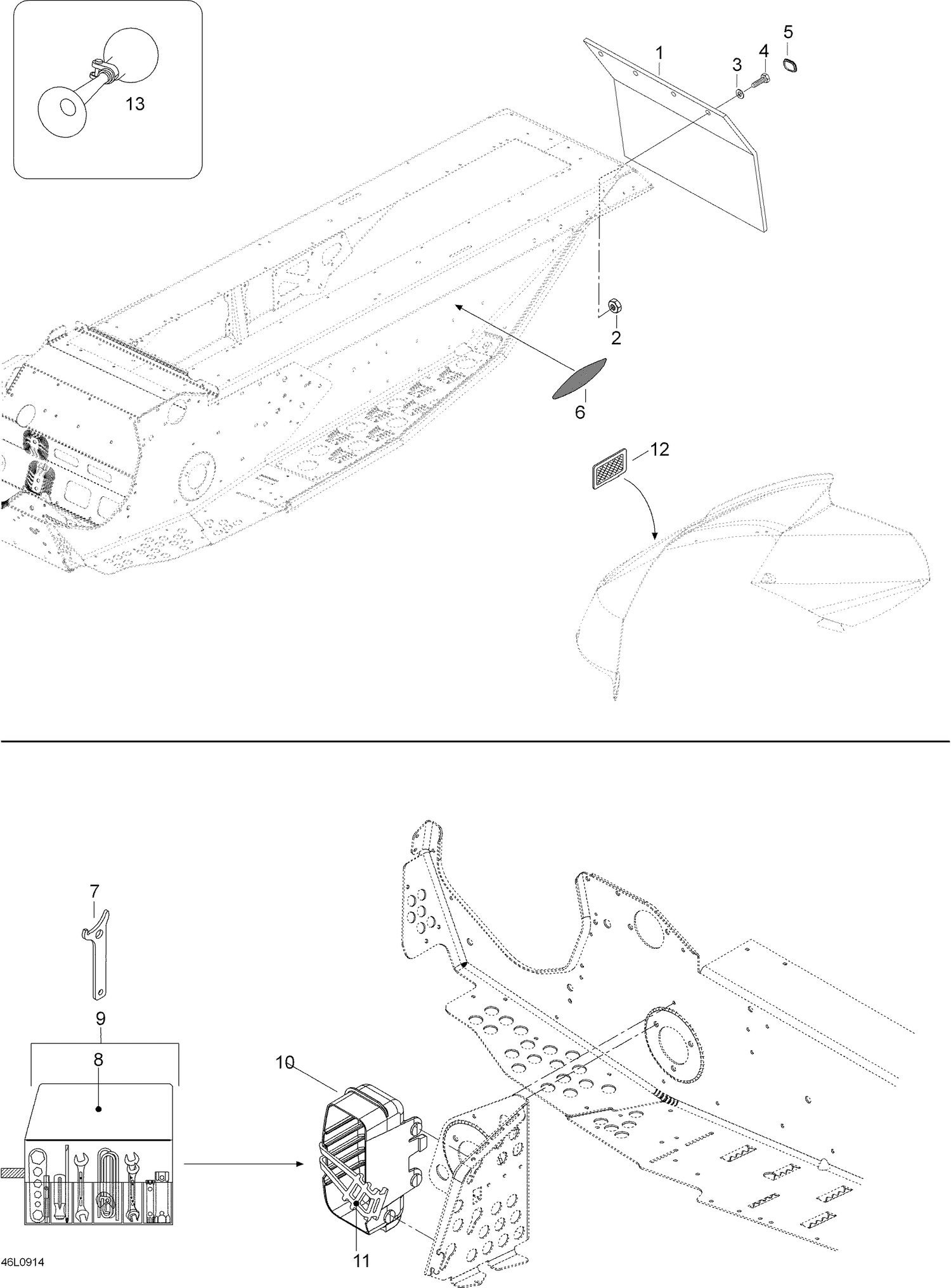

09- Utilities
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5246131 | Snow guard |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 3 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 4 | 40078 | SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 | 415073300 | Cap |
| 6 | 605621001 | Hella 8RA 343.160-027 |
| 7 | 529000035 | Wrench adjuster |
| 9 | 520000552 | Tool box |
| 10 | 520000322 | TRUNK - Call your local BRP dealership |
| 11 | 570069700 | LATCH - Call your local BRP dealership |
| 12 | 21118 | Reflector, Bright |
