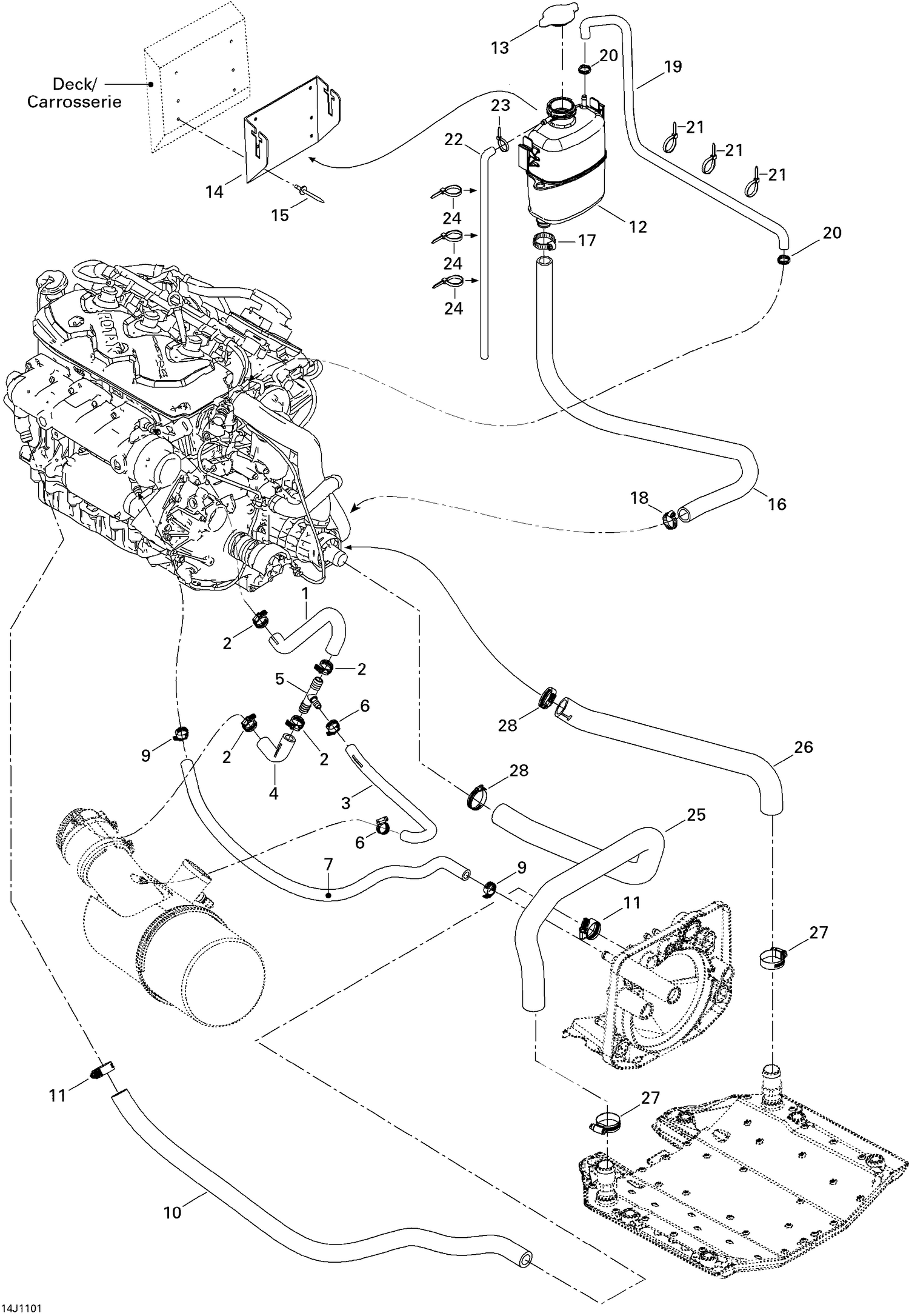

01- Cooling System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 2 | 293650172 | Tridon Gear Clamp |
| 3 | 276000246 | Formed Hose |
| 4 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 5 | 293710116 | T-Fitting |
| 6 | 293650171 | Tridon Gear Clamp |
| 7 | 219704394 | Was 276000001 Hose 12.5 mm |
| 9 | 293650172 | Tridon Gear Clamp |
| 10 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 11 | 293650051 | Tridon Gear Clamp |
| 12 | 276000086 | Coolant Tank |
| 13 | 276000100 | Pressure Cap |
| 14 | 276000287 | COOLANT TANK BRACKET - Call your local BRP dealership |
| 15 | 293150039 | Pop Rivet 3/16" |
| 16 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 17 | 293650051 | Tridon Gear Clamp |
| 18 | 293650019 | Tridon Gear Clamp |
| 19 | 219704357 | Was 275500549 Hose 1/4" |
| 20 | 293650025 | Oetiker Gear Clamp |
| 21 | 293750002 | Tie Wrap 142 mm |
| 22 | 219704410 | Polyurethane Hose 10000Mm Long |
| 23 | 293750001 | Tie Wrap 94 mm |
| 24 | 293750002 | Tie Wrap 142 mm |
| 25 | 276000490 | LH Radiator Hose This part replaces 276000250. |
| 26 | 276000248 | RH Radiator Hose |
| 27 | 293650045 | Tridon Gear Clamp |
