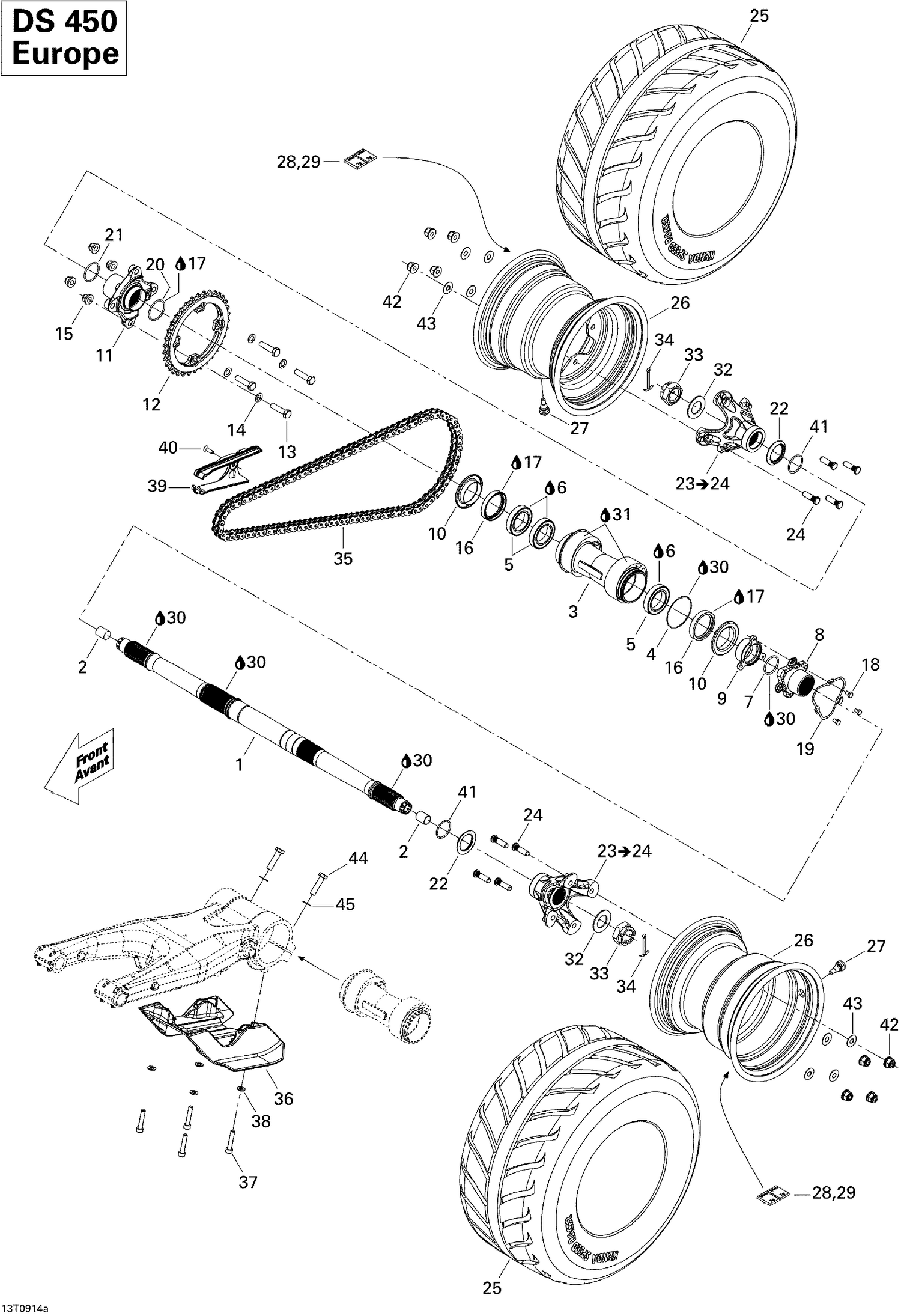

| Ref | Part Number | Description |
|---|
| 1 |
705501079 |
DRIVE AXLE - Call your local BRP dealership This part replaces 705500643. |
| 2 |
293730044 |
CAP - Call your local BRP dealership |
| 3 |
705500644 |
CHAIN TIGHTENER - Call your local BRP dealership |
| 4 |
293300115 |
O-Ring |
| 5 |
293350053 |
Ball Bearing |
| 6 |
413703100 |
Loctite 609, 10 ml |
| 7 |
293300089 |
O-RING - Call your local BRP dealership |
| 8 |
705500646 |
Brake Disc Hub |
| 9 |
705500649 |
NUT M40 - Call your local BRP dealership |
| 10 |
705500648 |
Wear Ring |
| 11 |
705501161 |
Wheel Hub This part replaces 705500650. |
| 12 |
715000643 |
Sprocket Kit, 34 Teeth |
| 13 |
207004036 |
Hex. Screw M10 X 40 |
| 14 |
250200084 |
Flat Washer |
| 15 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 16 |
293250164 |
Oil Seal |
| 17 |
293550010 |
Synthetic Grease, 400 G |
| 18 |
207161034 |
HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 19 |
705500669 |
LOCK WASHER - Call your local BRP dealership |
| 20 |
293300099 |
O-RING - Call your local BRP dealership |
| 21 |
705500108 |
RING RETAINER - Call your local BRP dealership |
| 22 |
705500663 |
SUPPORT RING - Call your local BRP dealership |
| 24 |
250000138 |
WHEEL STUD - Call your local BRP dealership |
| 25 |
705500970 |
TIRE_20X11R9 REAR - Call your local BRP dealership |
| 26 |
705500668 |
RIM_9 INCH X 8,5 - Call your local BRP dealership |
| 27 |
705400193 |
Rim Valve With Cap |
| 28 |
705502106 |
Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 29 |
705500824 |
ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership |
| 30 |
293550062 |
Graisse *Grease This part replaces 293550019. |
| 31 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 32 |
250200087 |
FLAT WASHER - Call your local BRP dealership |
| 33 |
250100093 |
Hex. Castlellated Nut M27 |
| 34 |
250400028 |
COTTER PIN - Call your local BRP dealership |
| 35 |
705501060 |
CHAIN - Call your local BRP dealership |
| 36 |
705500660 |
Rear Skid Plate |
| 37 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 |
| 38 |
234081410 |
Flat Washer 8 mm |
| 39 |
705501422 |
Chain Slider This part replaces 705500659. |
| 40 |
205862034 |
Socket Head Screw M6, Scotch Grip |
| 41 |
705500065 |
RING RETAINER - Call your local BRP dealership |
| 42 |
250100105 |
Flange Nut M10 |
| 43 |
250200080 |
Flat Washer |
| 44 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
