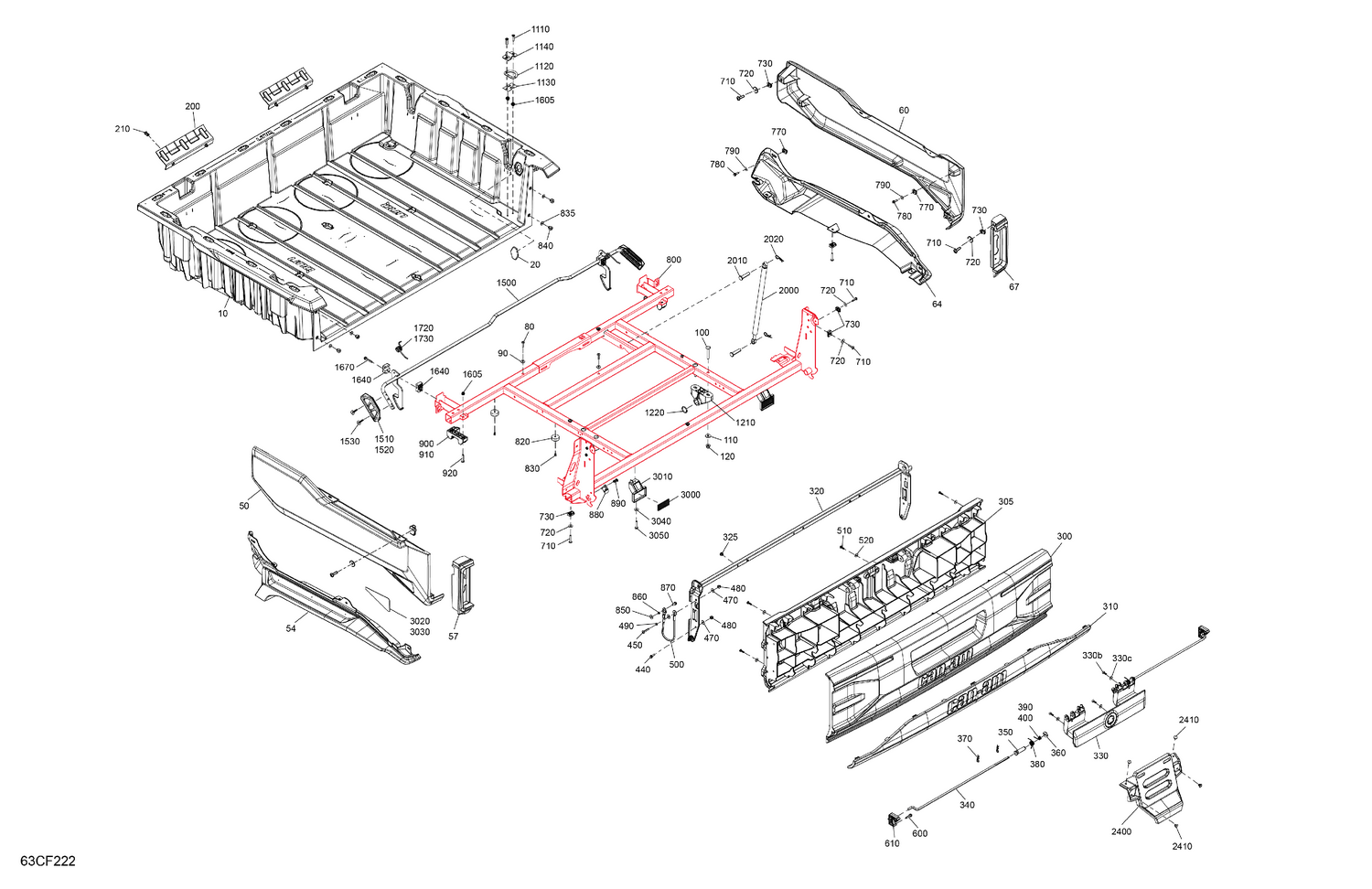

| Ref | Part Number | Description |
|---|
| 10 |
715011298 |
Open Carrier |
| 50 |
708305152 |
Loft Green, LH Open Carrier Trim |
| 54 |
708304815 |
LH Rear Mud Guard |
| 57 |
708304690 |
LH Taillight Trim |
| 60 |
708305157 |
Loft Green, RH Open Carrier Trim |
| 64 |
708304816 |
RH Rear Mud Guard |
| 67 |
708304691 |
RH Taillight Trim |
| 80 |
250000807 |
Torx Truss Screw M6 X 25 |
| 90 |
234062670 |
Stainless Steel Flat Washer |
| 100 |
207786044 |
Carriage Bolt M8 X 60 |
| 110 |
234082670 |
Stainless Steel Flat Washer |
| 120 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 200 |
708304610 |
Deflector |
| 210 |
293150230 |
Tuflok Plastic Rivet |
| 300 |
708304429 |
Tailgate Panelext |
| 305 |
708304431 |
Interior Tailgate Panel |
| 310 |
708304621 |
Loft Green, Lower Tailgate Trim |
| 320 |
708304434 |
Tailgate Support |
| 325 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 330b |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 330c |
250200025 |
Washer M5 |
| 340 |
708304570 |
Latch Rod |
| 350 |
708304564 |
Bushing Hinge |
| 360 |
708301653 |
Washer |
| 370 |
269800431 |
Hairpin Cotter |
| 380 |
705009468 |
Spring |
| 390 |
705009470 |
Spring |
| 400 |
705009471 |
Spring |
| 440 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 450 |
207663554 |
Hex. Flange Screw M6 X 35 |
| 470 |
234062670 |
Stainless Steel Flat Washer |
| 480 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 490 |
708300737 |
Bushing |
| 500 |
708301491 |
Cable |
| 510 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 520 |
250200025 |
Washer M5 |
| 600 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 610 |
708304062 |
Latch Stopper |
| 710 |
250000807 |
Torx Truss Screw M6 X 25 |
| 720 |
234062670 |
Stainless Steel Flat Washer |
| 730 |
250100208 |
Panel Nut M6 X 1.0 |
| 770 |
250100208 |
Panel Nut M6 X 1.0 |
| 780 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 790 |
234062670 |
Stainless Steel Flat Washer |
| 800 |
708304465 |
Open Carrier Frame |
| 820 |
708304601 |
Rubber Stopper |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 835 |
250200039 |
Flat Washer |
| 840 |
293830005 |
Rubber Bumper |
| 850 |
234062670 |
Stainless Steel Flat Washer |
| 860 |
708300737 |
Bushing |
| 870 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 880 |
708304661 |
Clip |
| 890 |
293150230 |
Tuflok Plastic Rivet |
| 900 |
708304535 |
Stopper |
| 910 |
708304536 |
Stopper |
| 920 |
250000867 |
Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1110 |
250001107 |
Torx Flat Head Screw T-30 S.Grip M6X25 |
| 1120 |
708302990 |
D-Ring |
| 1130 |
708302991 |
Tie-Down Ring Spring |
| 1140 |
708302992 |
Tie-Down Ring Bracket |
| 1210 |
708304537 |
Pivot Support |
| 1220 |
293300131 |
O-Ring |
| 1500 |
708304485 |
Latch Lever |
| 1510 |
708304483 |
LH Latch Handle |
| 1520 |
708304484 |
RH Latch Handle |
| 1530 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 1605 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 1640 |
708304823 |
Ring Half |
| 1670 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip |
| 1720 |
708305319 |
LH Torsion Spring |
| 1730 |
708305320 |
RH Torsion Spring |
| 2000 |
715007129 |
Gas Shock Absorber |
| 2010 |
250400098 |
Pin Clevis |
| 2020 |
414575600 |
Hair Pin |
| 2400 |
715011284 |
Trailer Warning Label |
| 2410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 3000 |
520001820 |
Red Reflector |
| 3010 |
708304813 |
Reflector Support |
| 3020 |
708304957 |
Red, LH Reflector |
| 3030 |
708304958 |
Red, RH Reflector |
| 3040 |
234062670 |
Stainless Steel Flat Washer |
