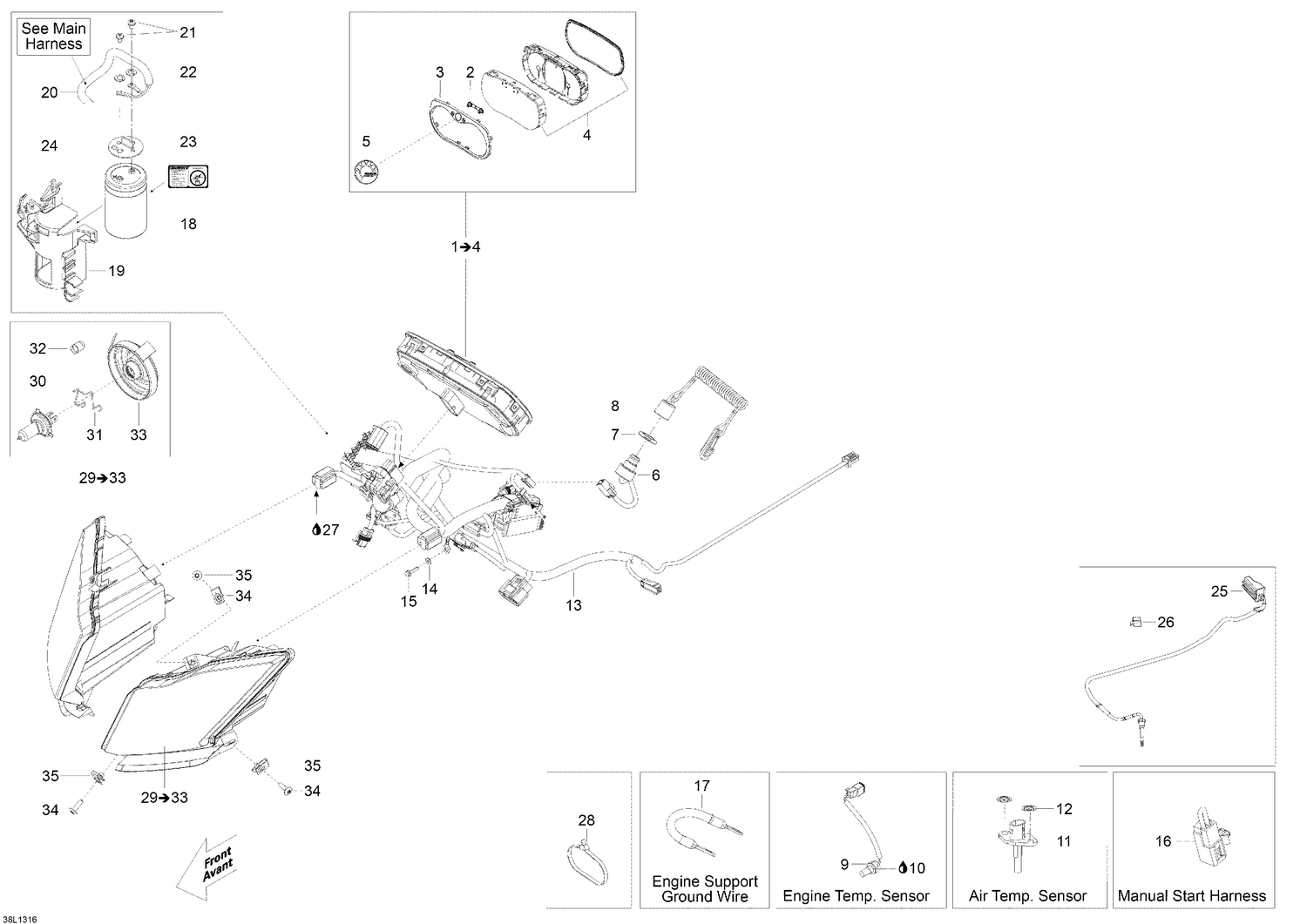

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129348 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 6 |
515177249 |
Dess Switch |
| 7 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 8 |
515178284 |
Dess. This part replaces 515177057. |
| 9 |
420664509 |
Temperature Senor This part replaces 515177471. |
| 10 |
Not |
Available As Spare Part - Loctite 592, Pipe Sealant, 50 ml |
| 11 |
515176366 |
Air Temperature Sensor |
| 12 |
389804300 |
Push Nut |
| 13 |
515177098 |
WIRING HARNESS_CHASSIS - Call your local BRP dealership |
| 14 |
234141601 |
Lock Washer 4 mm |
| 15 |
250000127 |
Torx Truss Screw M4 x 8 |
| 16 |
515176661 |
MANUAL START HARNESS - Call your local BRP dealership |
| 17 |
515177289 |
Ground Wire |
| 18 |
515177272 |
Capacitor This part replaces 515176349. |
| 19 |
515176607 |
Capacitor Support |
| 20 |
Not |
Available As Spare Part - Capacitor Harness |
| 21 |
250000462 |
Socket Head Screw M10 x 32 |
| 22 |
250200026 |
Lock Washer |
| 23 |
516005515 |
CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership |
| 24 |
515177193 |
Cap |
| 25 |
415130000 |
Single Thermocouple Module This part replaces 515177473. |
| 26 |
414227300 |
Clip |
| 27 |
619600021 |
Loctite 8104 (Dielectric Grease), 75ml |
| 28 |
293750001 |
Tie-Rap 94 mm |
| 28 |
293750008 |
Tie-Rap 368 mm |
| 28 |
414115200 |
Tie-Rap 180 mm |
| 30 |
515176274 |
Halogen Bulb, 60/55 W, 12 V |
| 31 |
Not |
Available As Spare Part - Bulb Holder |
| 32 |
515176141 |
Cap |
| 33 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 34 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
