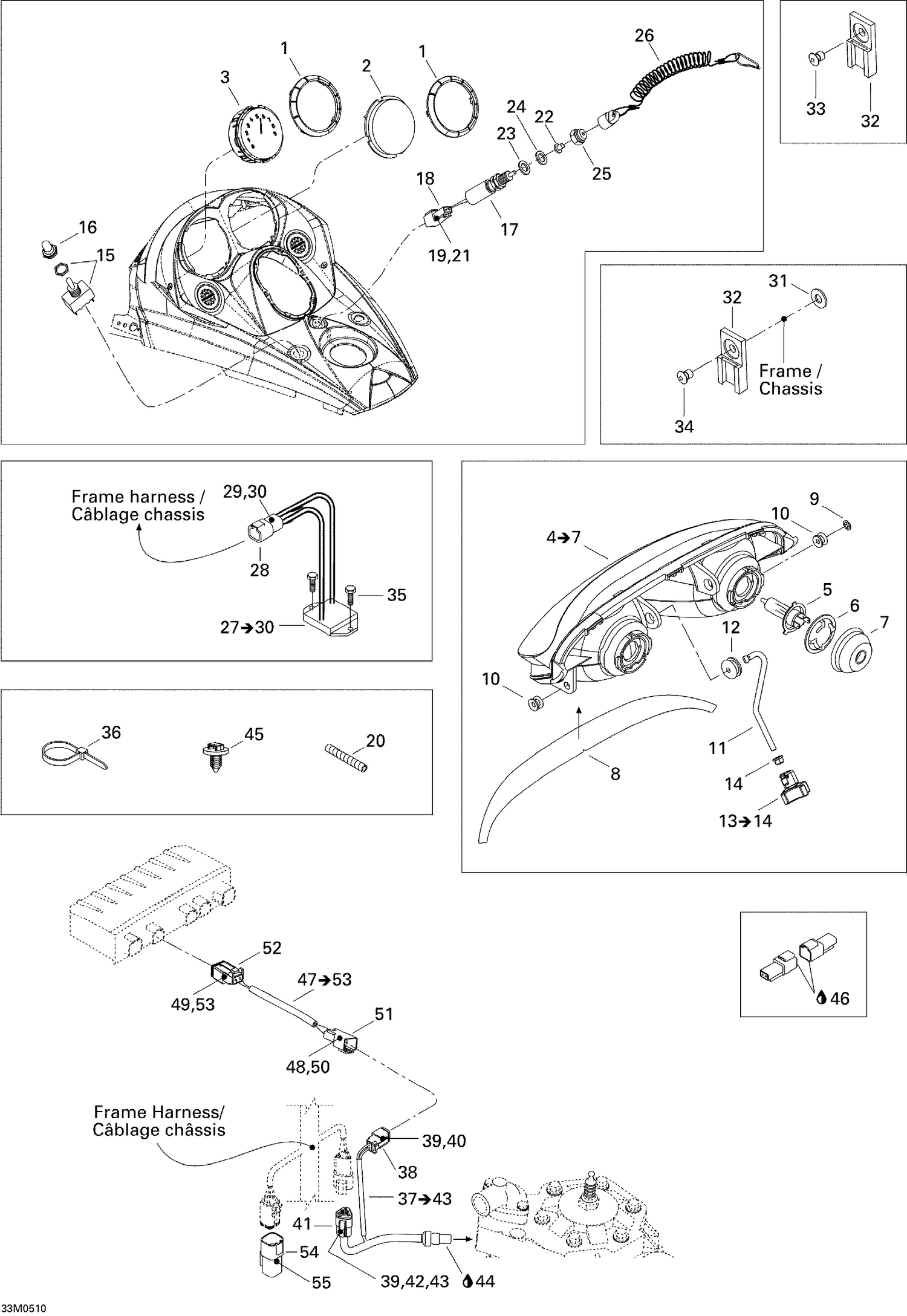

| Ref | Part Number | Description |
|---|
| 1 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 2 |
515175901 |
GAUGE HOLE COVER - Call your local BRP dealership |
| 3 |
515176265 |
Tachometer |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 7 |
515175911 |
COVER - Call your local BRP dealership |
| 8 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 9 |
732610072 |
Push Nut |
| 10 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 11 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 12 |
415100800 |
Grommet - Call your local BRP dealership |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
410107300 |
Switch (Heating Grip) |
| 16 |
515175281 |
Switch Cover |
| 17 |
515175653 |
Brake Switch |
| 18 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 19 |
409207500 |
Male Lock, 2 Circuits |
| 20 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 21 |
515175768 |
MALE TERMINAL - Call your local BRP dealership |
| 22 |
570151100 |
Plunger Cap |
| 23 |
250200032 |
Washer |
| 24 |
510004418 |
WASHER - Call your local BRP dealership |
| 25 |
415073500 |
Switch Nut |
| 26 |
515178292 |
Cap Ass'Y This part replaces 515167900. |
| 28 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 29 |
515175568 |
Male Terminal |
| 30 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 31 |
517225900 |
Flat Washer |
| 32 |
270000141 |
Clip This part replaces 515175917. |
| 33 |
293150037 |
Avdel Rivet 3/16" |
| 34 |
390410100 |
Pop Rivet 3/16” |
| 35 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 36 |
293750008 |
Tie Wrap 368 mm |
| 38 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 39 |
278000632 |
Female Terminal |
| 40 |
515175675 |
Female Lock, 2 Circuits |
| 41 |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 42 |
278000632 |
Female Terminal |
| 43 |
515175676 |
Female Lock, 3 Circuits |
| 44 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 45 |
293730040 |
Mount Dart This part replaces 293730018. |
| 46 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 48 |
278000631 |
Male Terminal |
| 49 |
278000632 |
Female Terminal |
| 50 |
409207500 |
Male Lock, 2 Circuits |
| 51 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 52 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 53 |
515175706 |
Female Lock, 2 Circuits |
| 54 |
515175668 |
Male Terminal Housing, 6 Circuits |
