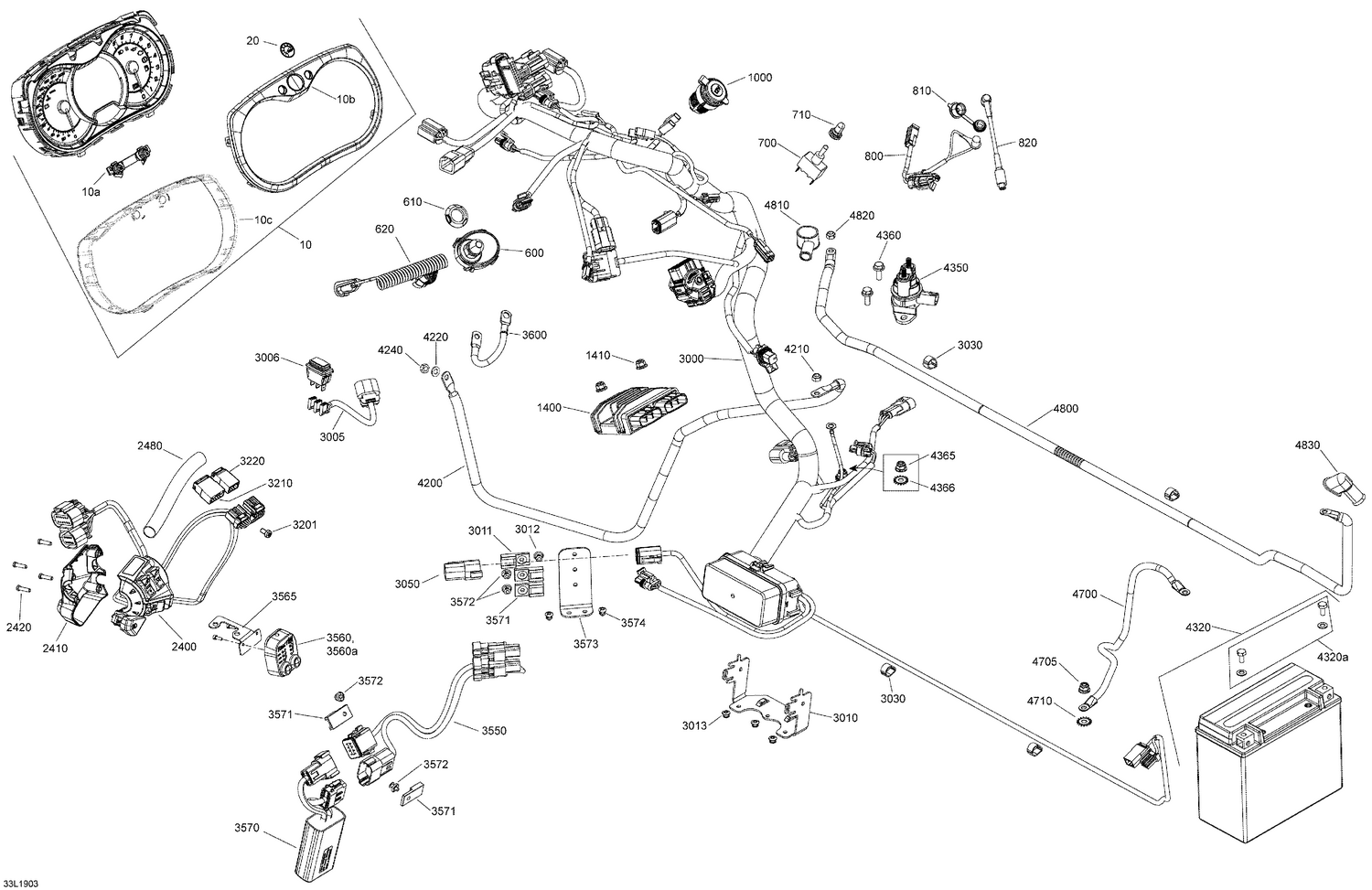

10- Electrical 59 Yeti - 600 ACE
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 415129349 | Class och tätning |
| 10b | 415129355 | Speedometer Button |
| 10c | 415129370 | Gauge Ring |
| 20 | 516006224 | BRP Logo, 20MM x 2MM |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 800 | 515177837 | Power outlet harness RCA (Opt.) |
| 810 | 572103300 | Cap |
| 820 | 515175851 | Extension harness RCA (Opt.) |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1400 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2400 | 515178198 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2480 | 415129879 | Corrugated Tube |
| 3000 | 515178451 | WIRING HARNESS ASSY - Call your local BRP dealership |
| 3005 | 515179615 | NEEDS DESCRIPTION This part replaces 515177568. |
| 3006 | 515177569 | ECO Rocker Switch |
| 3010 | 515178394 | Fusebox Support |
| 3011 | 270000141 | Clip |
| 3012 | 293150037 | Avdel Rivet 3/16" |
| 3013 | 390402200 | Pop Rivet 3/16 |
| 3030 | 293740059 | Velcro |
| 3050 | 710004904 | Connector Plug |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3210 | 515175662 | Male Terminal Housing, 8 Circuits |
| 3220 | 515175846 | Male Terminal Housing, 8 Circuits |
| 3600 | 515176883 | Ground Wire (110mm) |
| 4200 | 515176945 | Battery Wire |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4320a | 515176081 | Battery Bolt Kit |
| 4350 | 278003012 | Starter Relay |
| 4360 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 4365 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4366 | 250200041 | Lock Washer Serrated M6 |
| 4700 | 515176777 | Ground Cable |
| 4705 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4710 | 250200041 | Lock Washer Serrated M6 |
| 4800 | 515176778 | BATTERY WIRE - Call your local BRP dealership |
| 4810 | 570151000 | Cap protection, black |
| 4820 | 232561414 | Elastic Stop Nut M6 |
