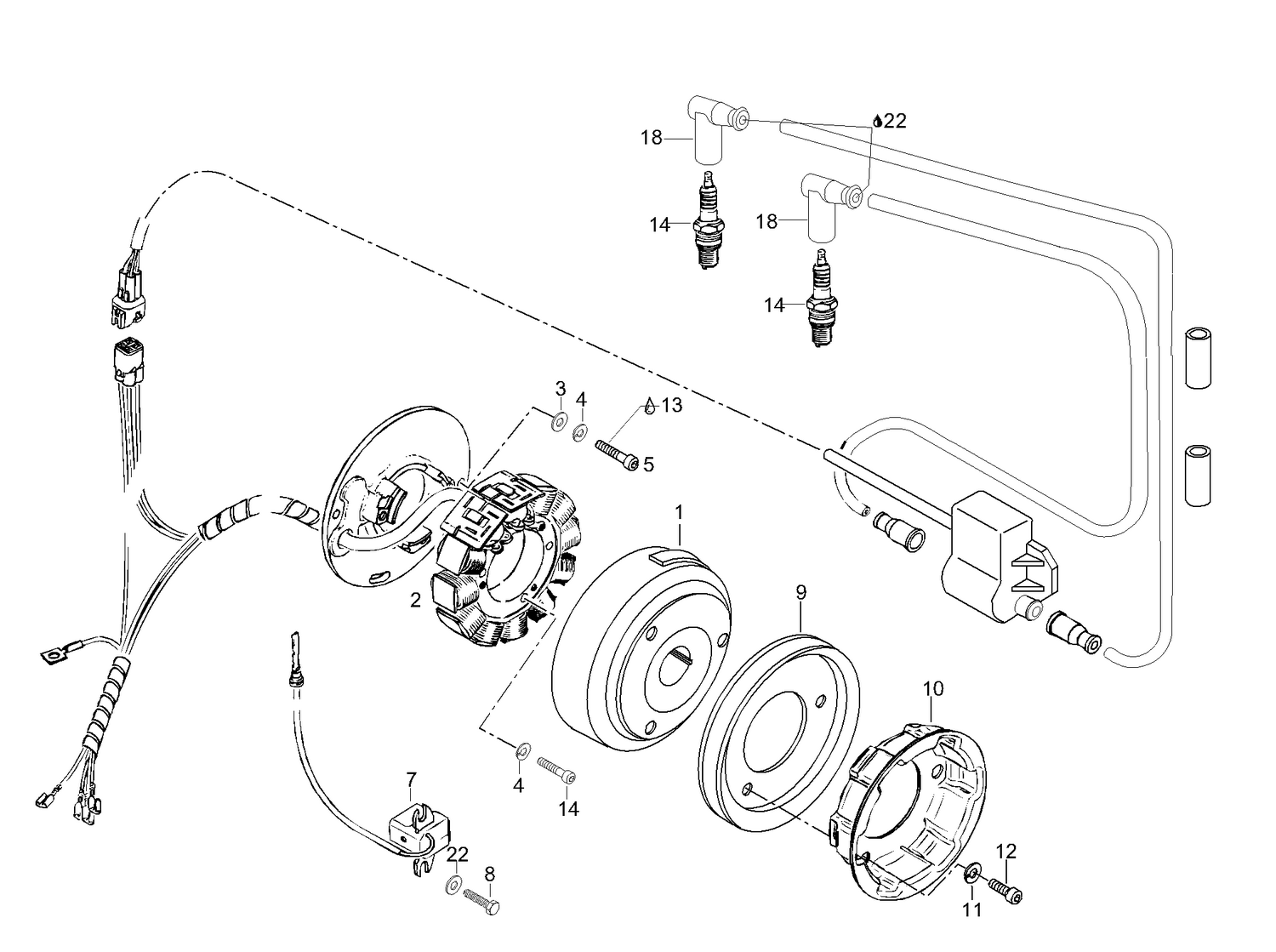

| Ref | Part Number | Description |
|---|
| 1 |
420996824 |
Magneto flywheel |
| 2 |
420886605 |
STATOR PLATE ASS?Y. 12V240W - Call your local BRP dealership This part replaces 420965450. |
| 3 |
420927574 |
Washer-5 This part replaces 420927571. |
| 4 |
20013 |
Spring washer |
| 5 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 7 |
420965763 |
PICK-UP ASS?Y - Call your local BRP dealership |
| 8 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 9 |
420980486 |
V-belt pulley |
| 10 |
420852414 |
Starting pulley |
| 11 |
420845311 |
Spring washer |
| 12 |
420841522 |
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership This part replaces 420841521. |
| 13 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 14 |
420940880 |
Allen screw M5x30 |
| 16 |
420960550 |
Protection cap |
| 17 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 420965529. |
| 18 |
420830962 |
Protection hose |
| 19 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 20 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 21 |
40030 |
Screw M6x20 |
| 22 |
20002 |
Washer |
