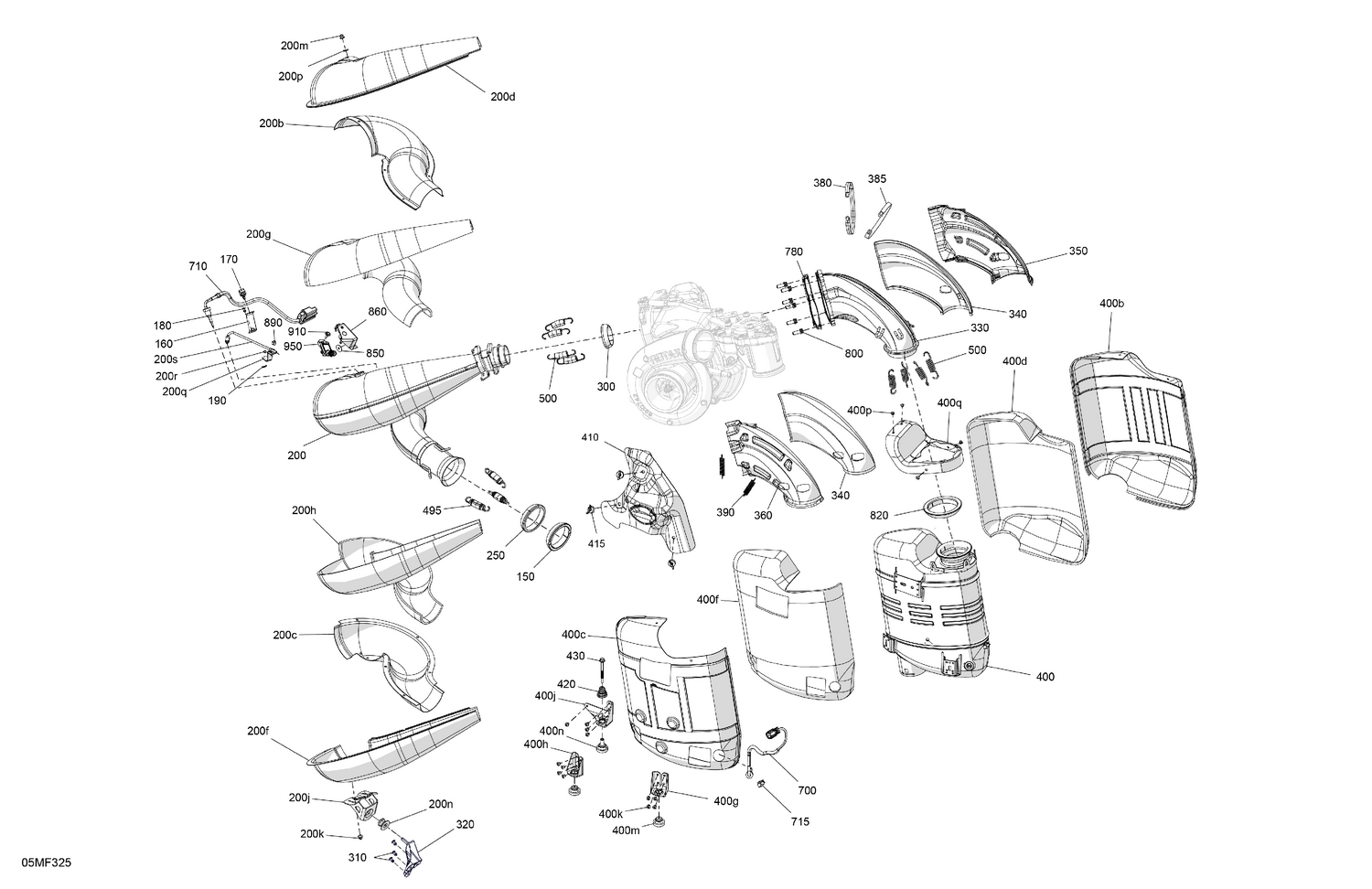

02- Engine - Exhaust
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 160 | 514055512 | Support |
| 170 | 515176795 | Tie Rap Mount (screwable) |
| 180 | 390909100 | Avex Rivet |
| 190 | 514055537 | Washer 3/16 |
| 200b | 514056283 | Shell |
| 200c | 514056282 | Shell |
| 200d | 514056421 | Rear Upper Shell |
| 200f | 514056141 | Rear Lower Aluminum Shell |
| 200g | 514056422 | Glass Wool |
| 200h | 514056352 | Glass Wool |
| 200j | 514055844 | Plate |
| 200k | 390909200 | Avex Rivet |
| 200m | 390909200 | Avex Rivet |
| 200n | 514056375 | Vibration Damper |
| 200p | 514055537 | Washer 3/16 |
| 200q | 514055846 | Support |
| 200r | 390909100 | Avex Rivet |
| 200s | 514055725 | Tube |
| 250 | 514055965 | Seal |
| 300 | 514054174 | Exhaust Gasket |
| 310 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 320 | 514056346 | Overmolded Exhaust Support |
| 330 | 514056157 | Manifold |
| 340 | 514056380 | Glass Wool |
| 350 | 514055747 | Front Shield |
| 360 | 514056161 | Rear Sheild |
| 380 | 514056144 | Retaining Strap |
| 385 | 514056145 | Retaining Strap |
| 390 | 514053643 | Spring |
| 400b | 514056114 | RH Deflector |
| 400c | 514056316 | LH Deflector |
| 400d | 514056356 | Glass Wool |
| 400f | 514056357 | Glass Wool |
| 400g | 514056193 | Exhaust Support |
| 400h | 514056082 | Exhaust Support |
| 400j | 514056083 | Exhaust Support |
| 400k | 293150293 | Pop Rivet 3/16 X ,425 |
| 400m | 514055203 | Stopper |
| 400n | 514056138 | Stopper Ass'y |
| 400p | 514056151 | Cap |
| 400q | 390402400 | Pop Rivet 3/16" |
| 410 | 514056605 | Acoustic Panel Ass'y |
| 415 | 502008752 | Stopper |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 495 | 514056058 | Spring |
| 500 | 514055198 | Spring |
| 700 | 514056266 | Exhaust Temperature Sensor |
| 710 | 515178170 | Module |
| 715 | 710010204 | Clip |
| 780 | 514056159 | Exhaust Gasket |
| 820 | 514055731 | Exhaust Gasket |
| 850 | 224060201 | Flat Washer |
| 860 | 514055723 | Sensor Support |
| 890 | 293650249 | Crimp Clamp |
| 910 | 250000725 | Screw M4 X 16 |
