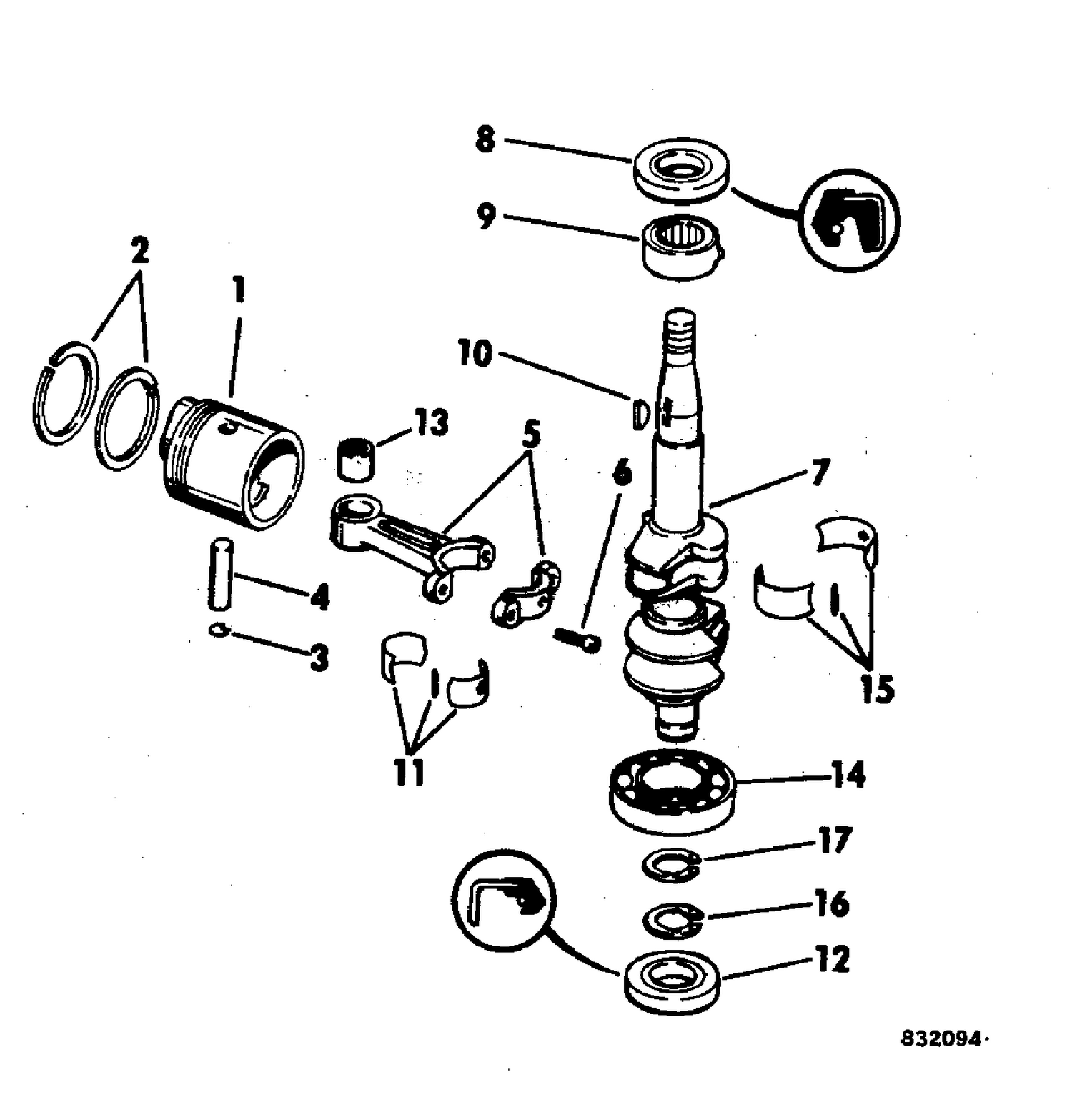

| Ref | Part Number | Description |
|---|
| 1 |
0390836 |
PISTON ASSY., .030 0.S |
| 1 |
0432741 |
PISTON & RING AY., Std. This part replaces 0390834. |
| 2 |
0383920 |
RING SET, |
| 2 |
0384312 |
RING SET , .030 o. S |
| 4 |
0323034 |
RETAINING RING |
| 5 |
0388694 |
CONNECTING ROD ASSY |
| 6 |
0324365 |
SCREW, Rod cap |
| 7 |
0328839 |
CRANKSHAFT |
| 9 |
0397586 |
BEARING ASSY., Needle This part replaces 0383278. |
| 10 |
0120395 |
KEY |
| 11 |
0396068 |
LINERS & NEEDLES, Rod This part replaces 0388766. |
| 12 |
0329086 |
SEAL, Crank, lower |
| 13 |
0389369 |
BEARING ASSY., Needle, wrist pin |
| 14 |
0391849 |
ROULEMENT À BILLES |
| 15 |
0388993 |
LINER ASSY., Center bearing |
| 16 |
0326904 |
NEEDLE BEARING ASSY. |
