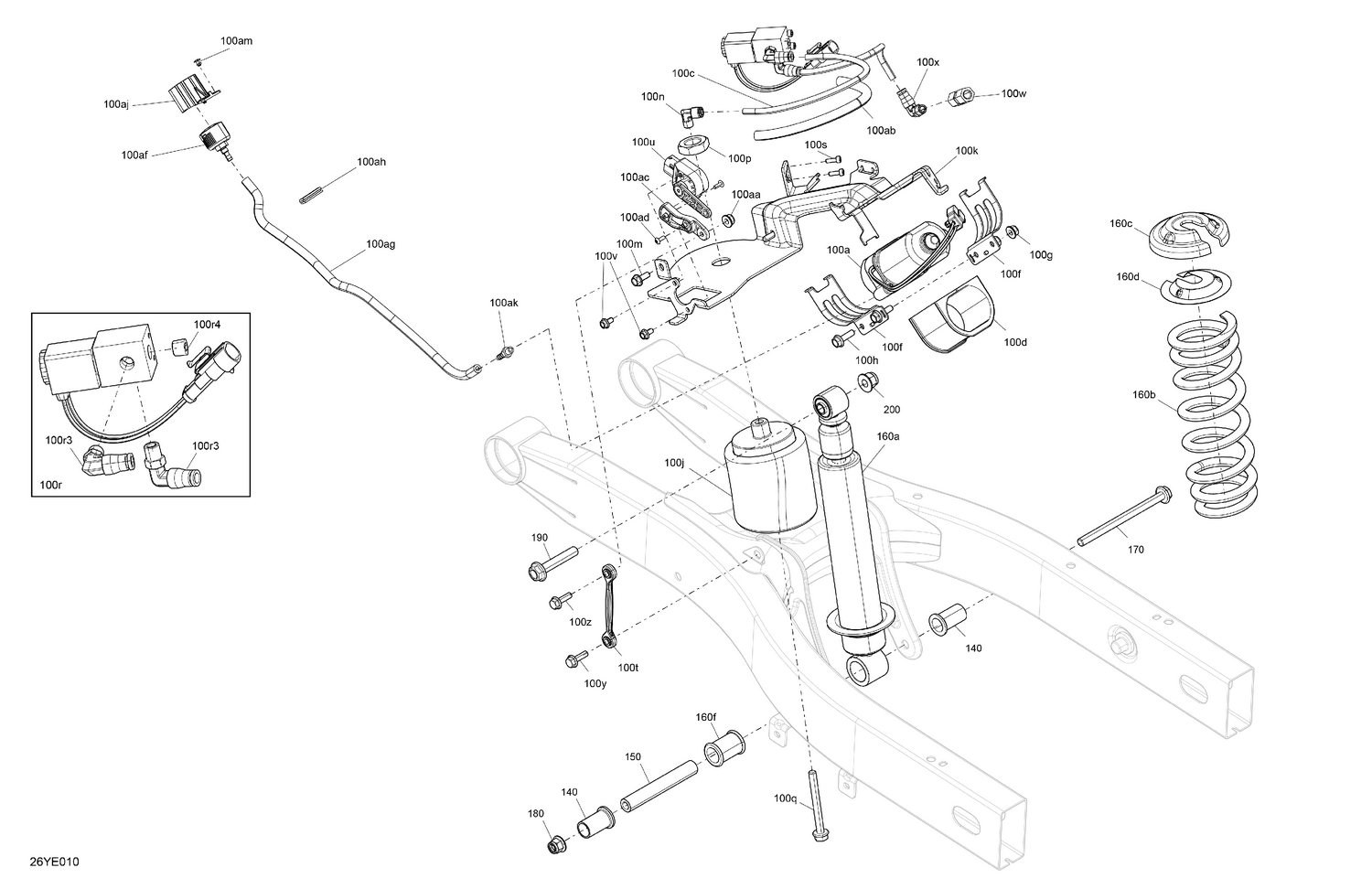

05- Suspension - Rear Shock
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 706005694 | Compressor |
| 100aa | 233061414 | Hex. Flange Nut M6 |
| 100ab | 219704425 | Tubing 6 Mm 3000Mm Long |
| 100ac | 706004639 | Lever |
| 100ad | 250001131 | Torx Truss PT K40 x 12 |
| 100af | 706005941 | Air Filter |
| 100ag | 706005955 | Hose |
| 100ah | 219704548 | Edge Cut Trim 1000Mm |
| 100aj | 706005956 | Rear Filter Support |
| 100ak | 293700059 | Screwed Pipe Fitting |
| 100am | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 100c | 706001211 | Hose 1/4 |
| 100d | 706000631 | Compressor Isolator |
| 100f | 503193103 | Compressor Bracket |
| 100g | 233061414 | Hex. Flange Nut M6 |
| 100h | 207662044 | Hex. Flange Screw M6 X 20 |
| 100j | 219800175 | Air Damper Kit |
| 100k | 706004660 | Shock Absorber Anchorage |
| 100m | 210261050 | Hex. Forming Screw M6 X 10 |
| 100n | 706001018 | Elbow 90° |
| 100p | 250100119 | Jam Nut M20 |
| 100q | 207687544 | Hex. Flange Screw M8 X 75 |
| 100r3 | 706000928 | Elbow 90° |
| 100r4 | 504151921 | Plug 1/8”-27 |
| 100s | 205041254 | Socket Head Screw M4 X 12 |
| 100t | 706202505 | Tie Rod |
| 100u | 710004740 | Suspension Sensor |
| 100v | 207551044 | Hex. Flange Screw M5 X 10 |
| 100w | 706000831 | Ckeck Valve |
| 100x | 706000928 | Elbow 90° |
| 100y | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 100z | 207662044 | Hex. Flange Screw M6 X 20 |
| 140 | 706000410 | Spacer |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001706 | Shock |
| 160b | 706001707 | Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160f | 503191609 | Urethane Cushion |
| 170 | 230604034 | Hex. Flange Screw M10 X 140 |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
