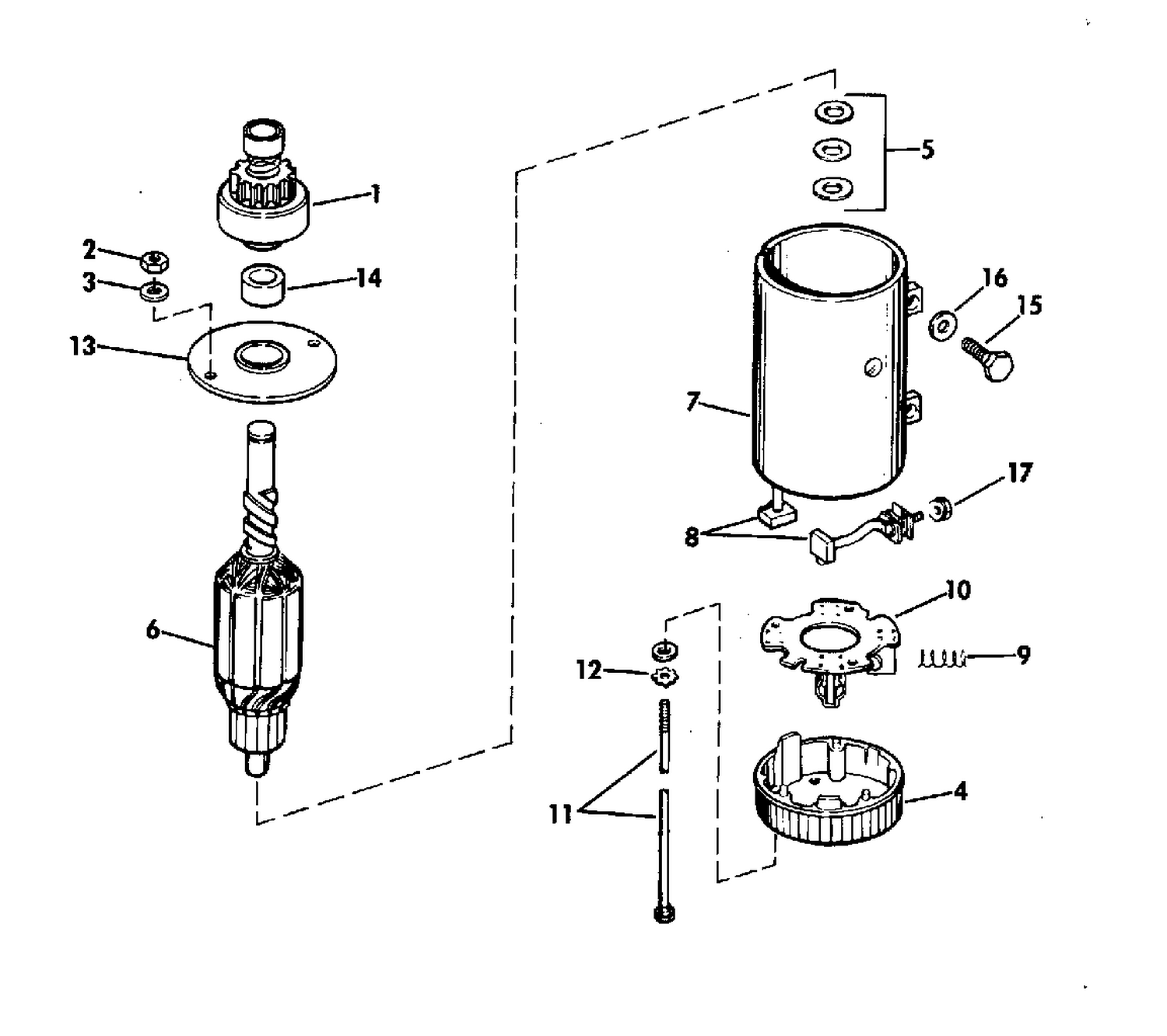

| Ref | Part Number | Description |
|---|
| 1 |
0383195 |
DRIVE ASSEMBLY |
| 3 |
0329241 |
RONDELLE This part replaces 0306482. |
| 4 |
0379966 |
HEAD ASSEMBLY, Commutator end |
| 5 |
0384306 |
THRUSH WASHER PKG. This part replaces 0383199. |
| 6 |
0383194 |
ARMATURE ASSEMBLY |
| 7 |
0383196 |
FRAME & FIELD ASSEMBLY, Complete |
| 9 |
0383891 |
SPRING SET This part replaces 0311128. |
| 10 |
0379967 |
BRUSH PLATE & HOLDER |
| 11 |
0383198 |
THROUGH BOLT PKG ASSEMBLY |
| 13 |
0383197 |
HEAD ASSEMBLY, Drive end |
| 15 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 15 |
0306423 |
BOLT |
| 0382306 |
0382306 |
STARTER MOTOR ASSEMBLY |
