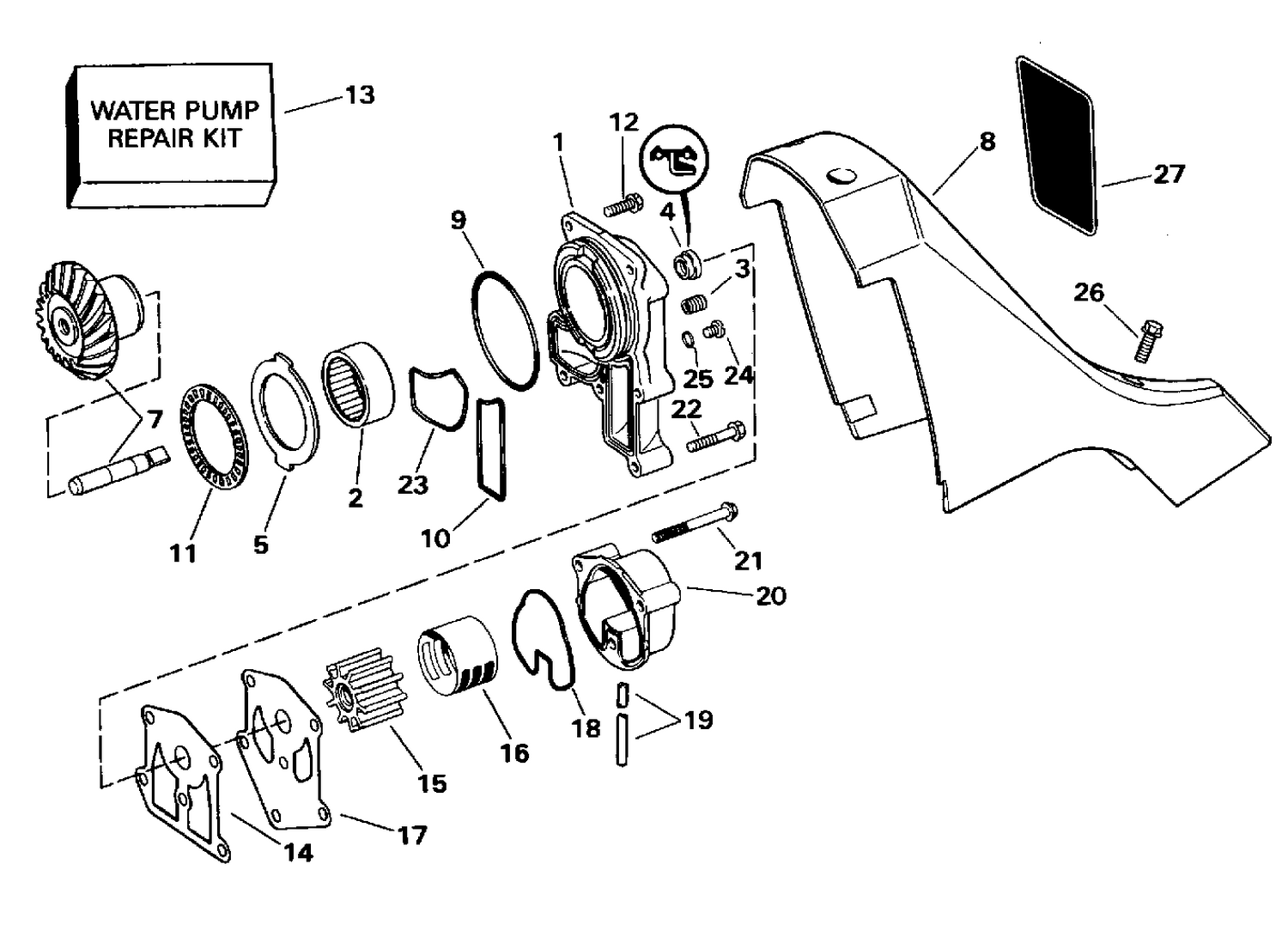

| Ref | Part Number | Description |
|---|
| 1 |
3854081 |
ADAPTOR SEAL & BEARING |
| 3 |
0910901 |
INSERT This part replaces 3852513. |
| 4 |
3853655 |
SEAL, Water pump adaptor |
| 5 |
3853432 |
WASHER, Thrust, drive gear |
| 7 |
3854006 |
GEAR & SHAFT, Water pump |
| 8 |
3854456 |
COVER, Gearcase, rear |
| 9 |
0911686 |
O-RING, Adaptor to gear housing This part replaces 3852530. |
| 10 |
3852964 |
SEAL, Adaptor to gear hsg., inlet |
| 12 |
0341013 |
SCREW, Cover This part replaces 3852454. |
| 13 |
3854661 |
WATER PUMP REPAIR KIT |
| 14 |
3853654 |
GASKET, Plate to adaptor |
| 15 |
3854072 |
IMPELLER, Water pump |
| 16 |
3853726 |
LINER, Water pump |
| 17 |
0915216 |
PLATE, Water pump This part replaces 3853472. |
| 18 |
3853473 |
SEAL, Water pump to plate |
| 19 |
3853531 |
VENT HOSE, Impeller housing |
| 20 |
3854071 |
IMPELLER HOUSING |
| 21 |
3855472 |
SCREW, Pipe to gimbal This part replaces 3852898. |
| 22 |
0908511 |
SCREW This part replaces 3852447. |
| 23 |
3852965 |
SEAL, Adaptor to gear hsg., outlet |
| 24 |
3852536 |
PLUG, Water drain |
| 25 |
0911311 |
O-RING, Plug This part replaces 3852523. |
| 26 |
3853428 |
SCREW, Anchor bracket |
