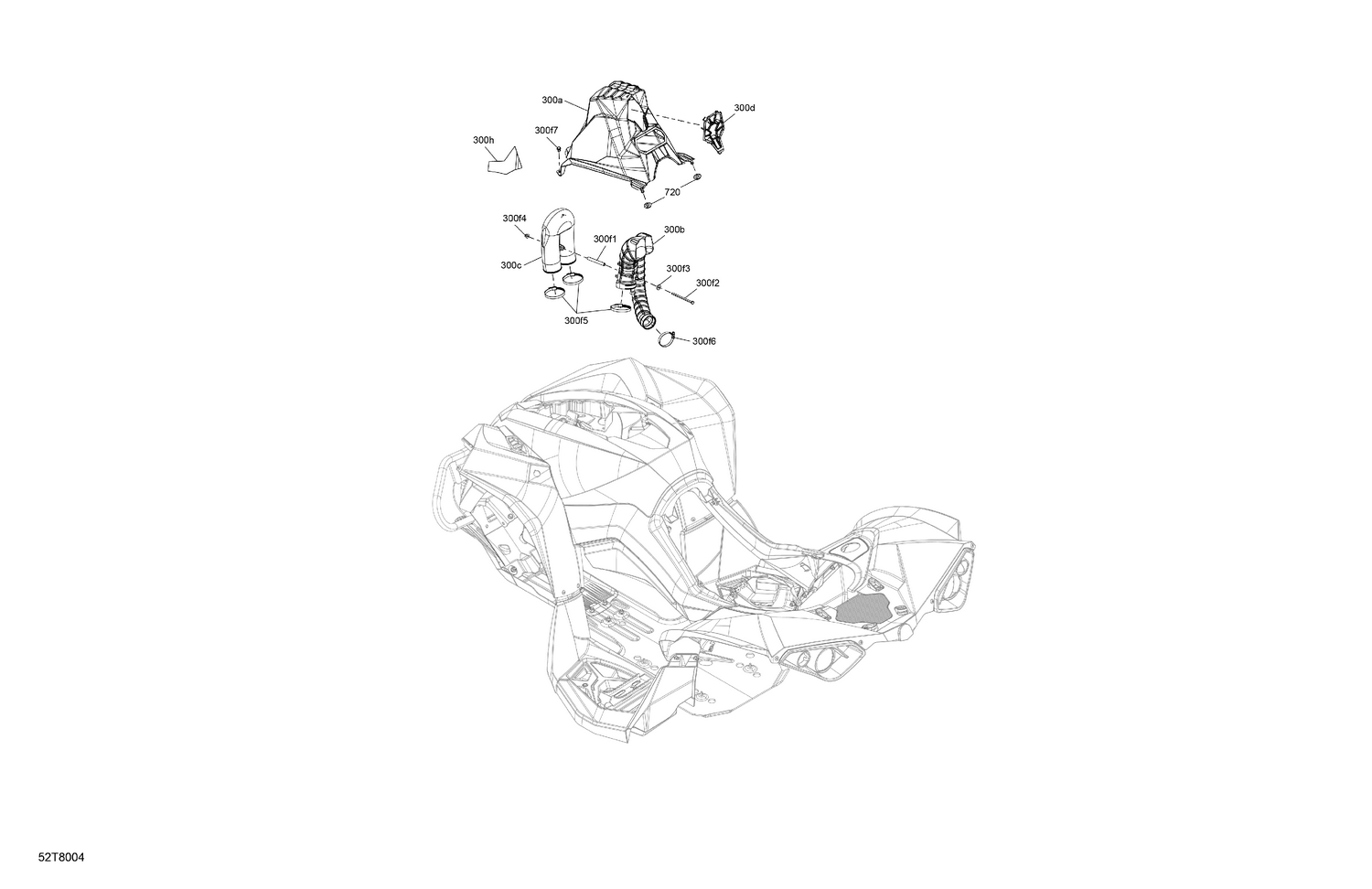

07- Body - Snorkel
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 300a | 705009685 | Hood XMR |
| 300b | 707001779 | Upper Air Inlet |
| 300c | 707001782 | Upper Air Outlet |
| 300d | 705010922 | Prefilter Screen |
| 300f1 | 293900122 | Bushing |
| 300f2 | 230060060 | Hex. Screw M6 X 100 |
| 300f3 | 250200115 | Flat Washer M6 |
| 300f4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300f5 | 293650091 | Norma Clamp |
| 300f6 | 293650077 | Norma Clamp |
| 300f7 | 293150230 | Tuflok Plastic Rivet |
| 300h | 704906509 | CAN-AM RED LH HOOD DECAL - Call your local BRP dealership |
