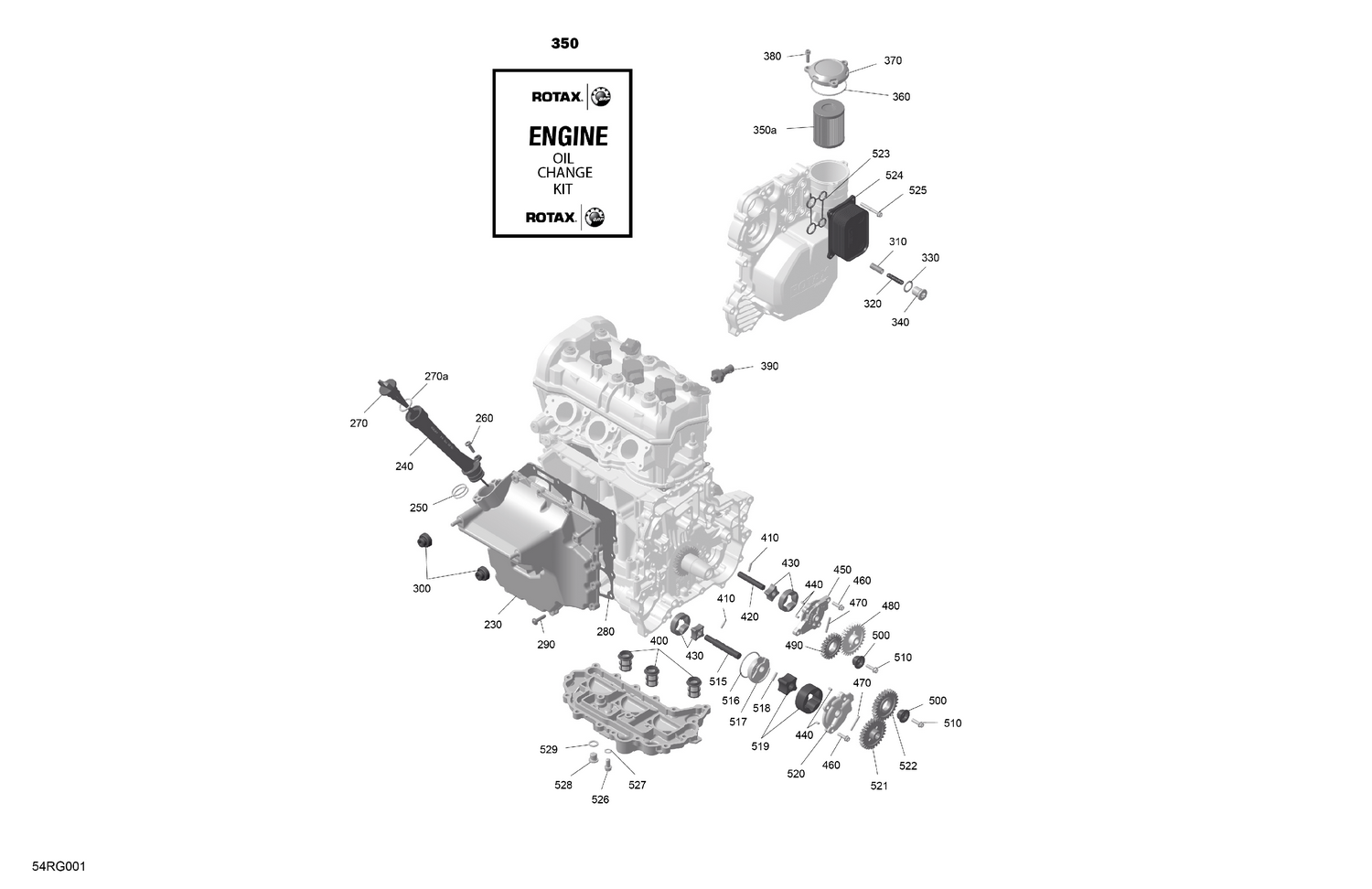

01- ROTAX - Engine Lubrication
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 230 | 420656707 | Oil Pump Cover |
| 240 | 420656901 | Oil Filler Tube |
| 250 | 420430440 | O-Ring |
| 260 | 420441386 | Torx Flange Screw M6 X 20 |
| 270a | 420631642 | O-Ring |
| 280 | 420431848 | Oil Sump Cover Gasket |
| 290 | 420841549 | Torx Flange Screw M6 X 25 |
| 300 | 420860150 | Rubber Grommet |
| 310 | 420256591 | Pressure Regulating Piston |
| 320 | 420239445 | Spring |
| 330 | 420430624 | Oil Pressure Regulator Gasket Ring |
| 340 | 420441372 | Plug Screw |
| 350 | 9779254 | Ski-Doo Oil Change Kit 0W40 900 ACE |
| 350 | 9779403 | Ski-Doo Change Oil Kit 0W40 |
| 350a | 420956124 | Oil Filter |
| 360 | 420230923 | O-Ring |
| 370 | 420612135 | Oil Filter cover |
| 380 | 420440207 | Torx Flange Screw M6 X 20 |
| 390 | 420256915 | Oil Pressure Switch |
| 400 | 420656680 | Oil Sieve |
| 410 | 420232731 | Needle Pin |
| 420 | 420820120 | Oil Pump Shaft |
| 430 | 420256348 | Oil Pump Rotor |
| 440 | 420929075 | Needle Pin |
| 450 | 420911080 | Oil Pump Cover |
| 460 | 420440207 | Torx Flange Screw M6 X 20 |
| 470 | 420232431 | Needle Pin |
| 480 | 420834882 | Oil Pump Gear, 29 Teeth |
| 490 | 420835400 | Gear 22 Teeths |
| 500 | 420947394 | Spacer |
| 510 | 420440207 | Torx Flange Screw M6 X 20 |
| 515 | 420837916 | Oil Pump Shaft |
| 516 | 420631830 | O-Ring |
| 517 | 420611950 | Oil Pump Cover |
| 518 | 420632221 | Needle Pin |
| 519 | 420256836 | Oil Pump Rotor |
| 520 | 420611980 | Oil Pump Cover |
| 521 | 420834887 | Oil Pump Gear, 28 Teeth |
| 522 | 420835321 | Idle Gear, 26 Teeth |
| 523 | 420431871 | Gasket |
| 524 | 420656698 | Oil Water Heat Exchanger |
| 525 | 420440324 | Torx Flange Screw M6 X 45 |
| 526 | 420440852 | Torx Flange Screw M8 X 16 |
| 527 | 420950141 | Sealing Ring |
| 528 | 420241701 | Plug Screw M12 x 1,5 |
