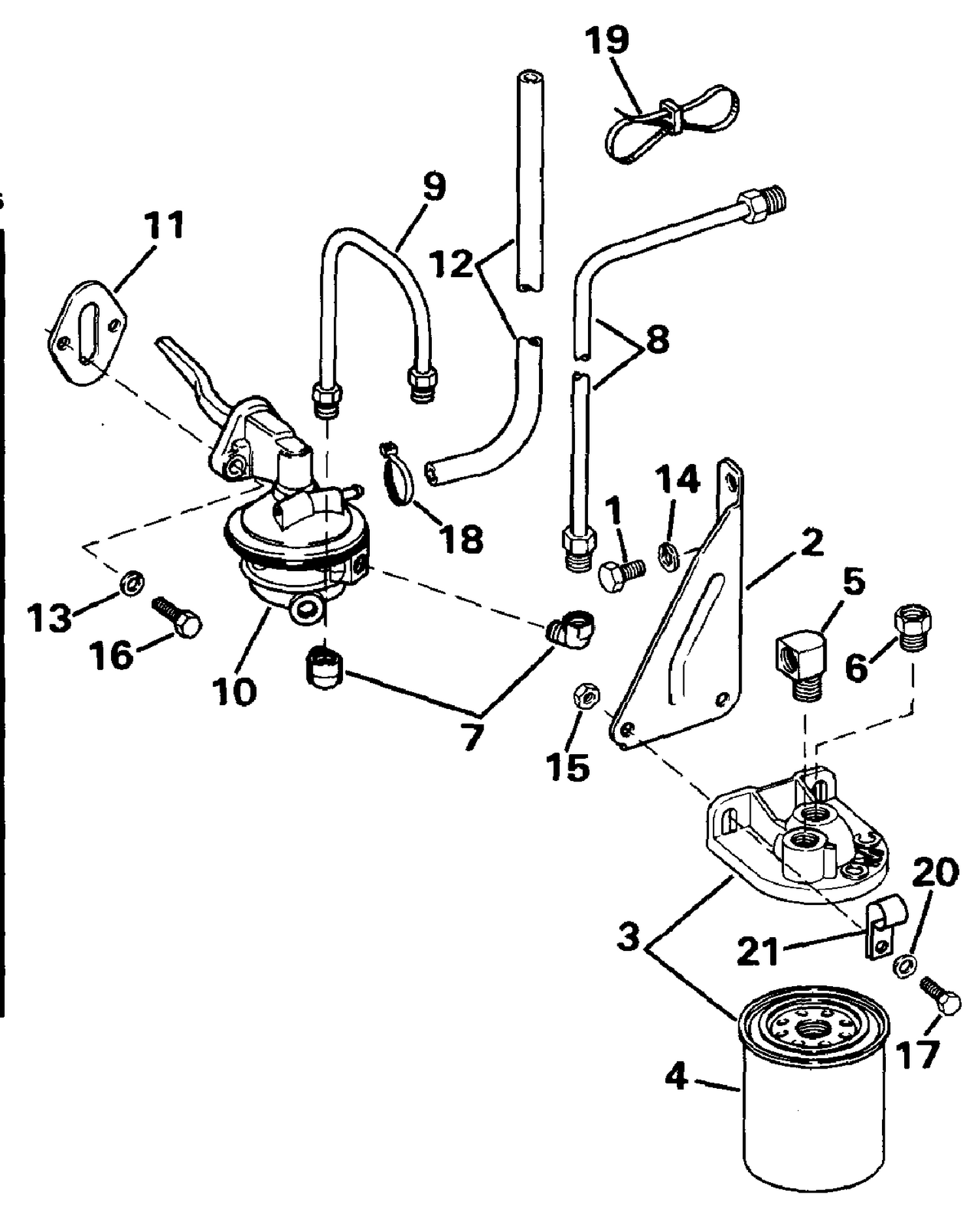

| Ref | Part Number | Description |
|---|
| 1 |
0311394 |
BOLT, Bracket to head |
| 2 |
0912409 |
BRACKET, Fuel filter |
| 3 |
0174176 |
FUEL FILTER & BRACKET ASSY |
| 5 |
0174179 |
ELBOW, Filter inlet |
| 6 |
0908951 |
FITTING, Filter outlet |
| 7 |
3852525 |
FITTING, Fuel pump This part replaces 0911455. |
| 8 |
0984548 |
FUEL LINE, Pump to carb. |
| 9 |
0984551 |
FUEL LINE, Filter to pump |
| 10 |
0984529 |
FUEL PUMP ASSY |
| 11 |
0311064 |
GASKET, Fuel pump |
| 12 |
0909938 |
HOSE, Fuel overflow |
| 13 |
0120177 |
L'WASHER, Alternator to brkt |
| 14 |
0303269 |
L'WASHER, Upper |
| 15 |
0314898 |
L'NUT, Stud, alt frt |
| 18 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
