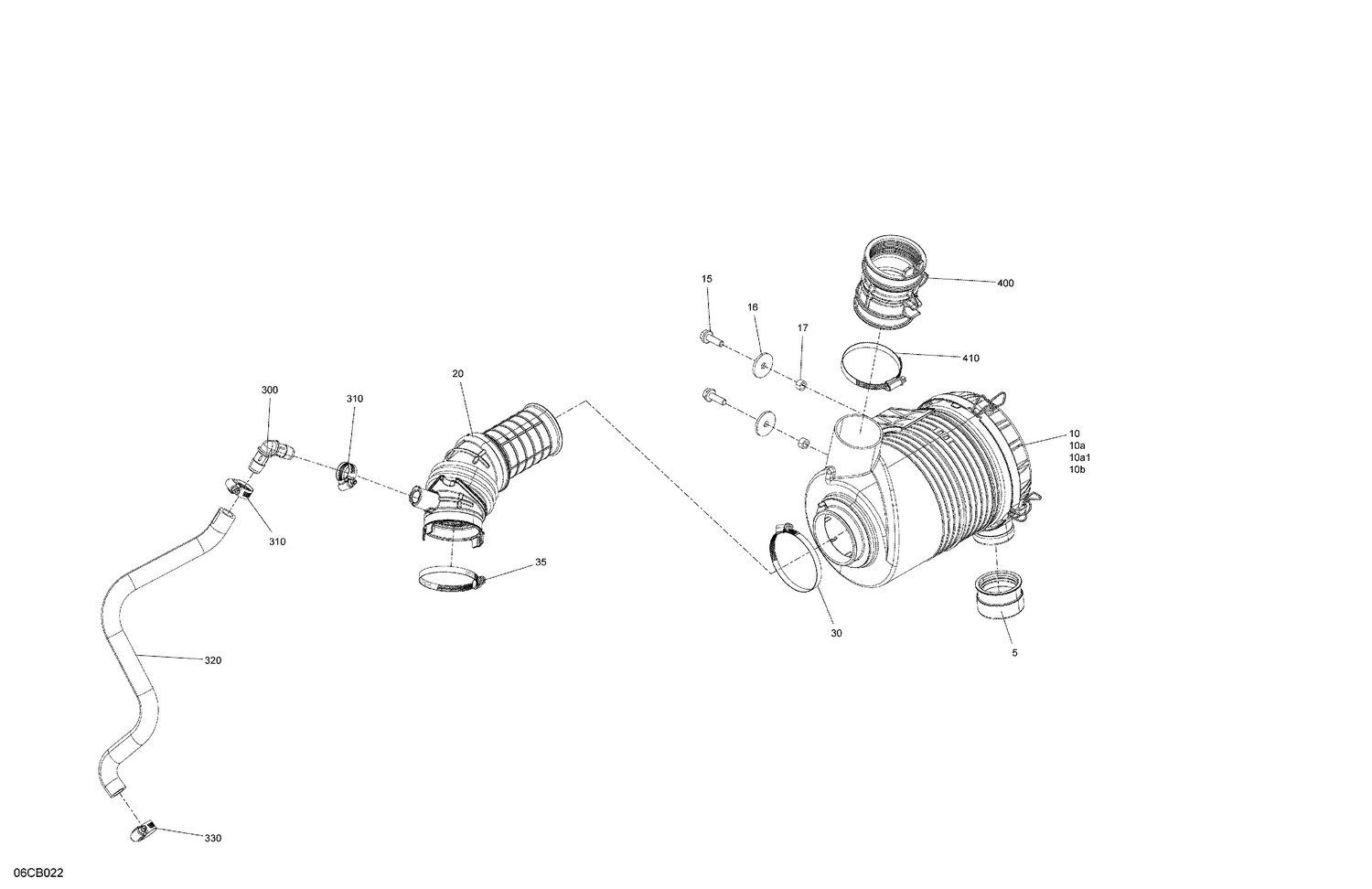

02- Engine - Air Intake - Evap
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 715003114 | Duct Bill Valve |
| 10a1 | 715900514 | O-Ring |
| 10b | 715900394 | Air Filter |
| 15 | 207682544 | Hex. Flange Screw M8 X 25 |
| 16 | 250200158 | Flat Washer M8 |
| 17 | 277000980 | Bushing |
| 20 | 707800834 | Intake Duct |
| 30 | 293650096 | Norma Clamp |
| 35 | 293650091 | Norma Clamp |
| 300 | 293710155 | Elbow Fitting 90 |
| 310 | 293650173 | Tridon Gear Clamp |
| 320 | 707801105 | Formed Crankcase Hose This part replaces 707800868. |
| 330 | 293650173 | Tridon Gear Clamp |
| 400 | 707800752 | Air Inlet Tube |
