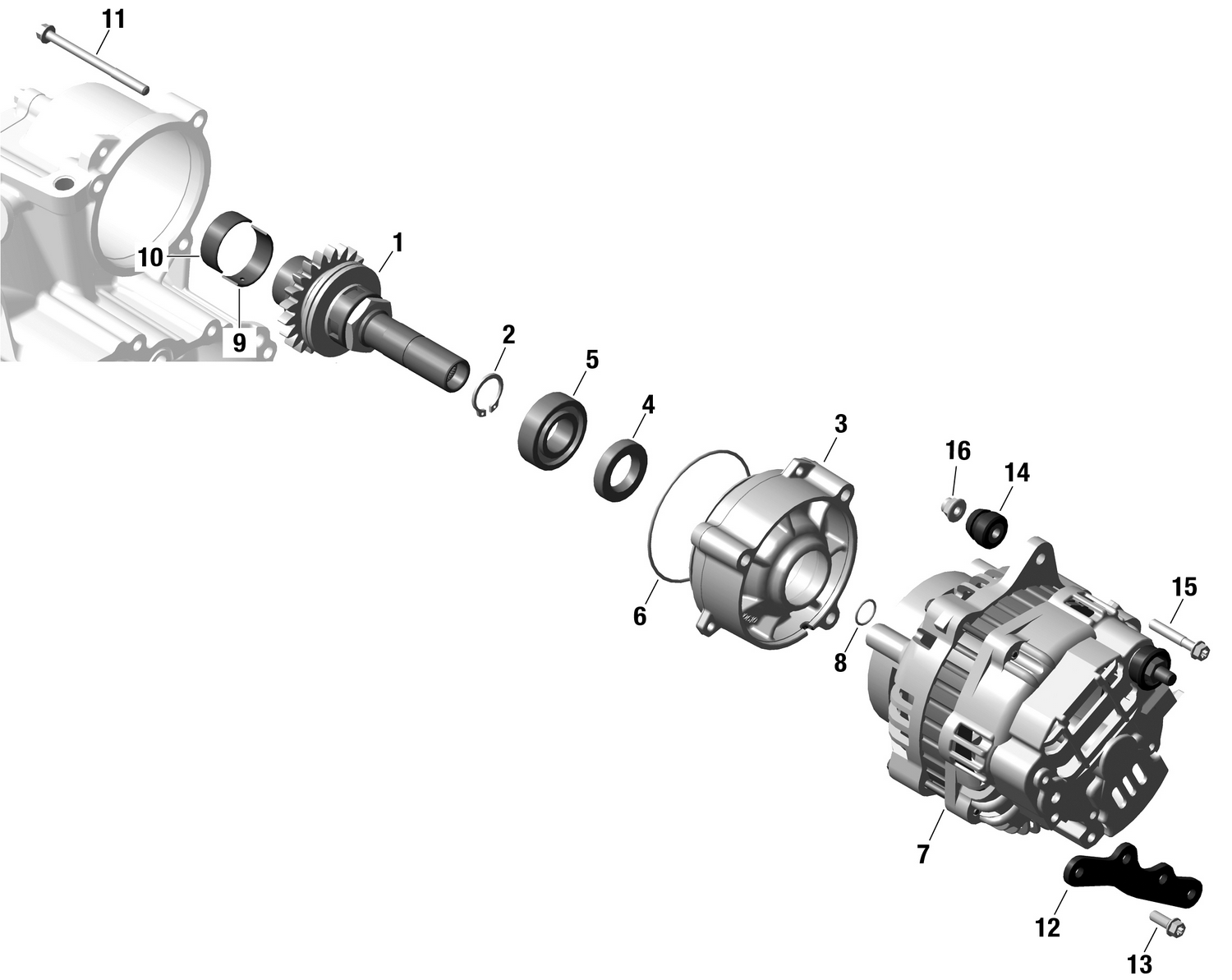

01- ROTAX - Generator
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420945665 | Retaining Ring |
| 3 | 420210613 | Generator Flange |
| 4 | 420930267 | Oil Seal |
| 5 | 420932660 | Ball Bearing |
| 6 | 420950490 | O-Ring |
| 8 | 420430603 | O-Ring |
| 9 | XXX | Not Available As Spare Parts |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 420440657 | Torx Flange Screw M6 X 75 |
| 12 | 420651711 | Alternator Support |
| 13 | 420440162 | Torx Flange Screw M6 X 16 |
| 14 | 420201170 | Isolator |
| 15 | 420440274 | Torx Flange Screw M6 X 35 |
