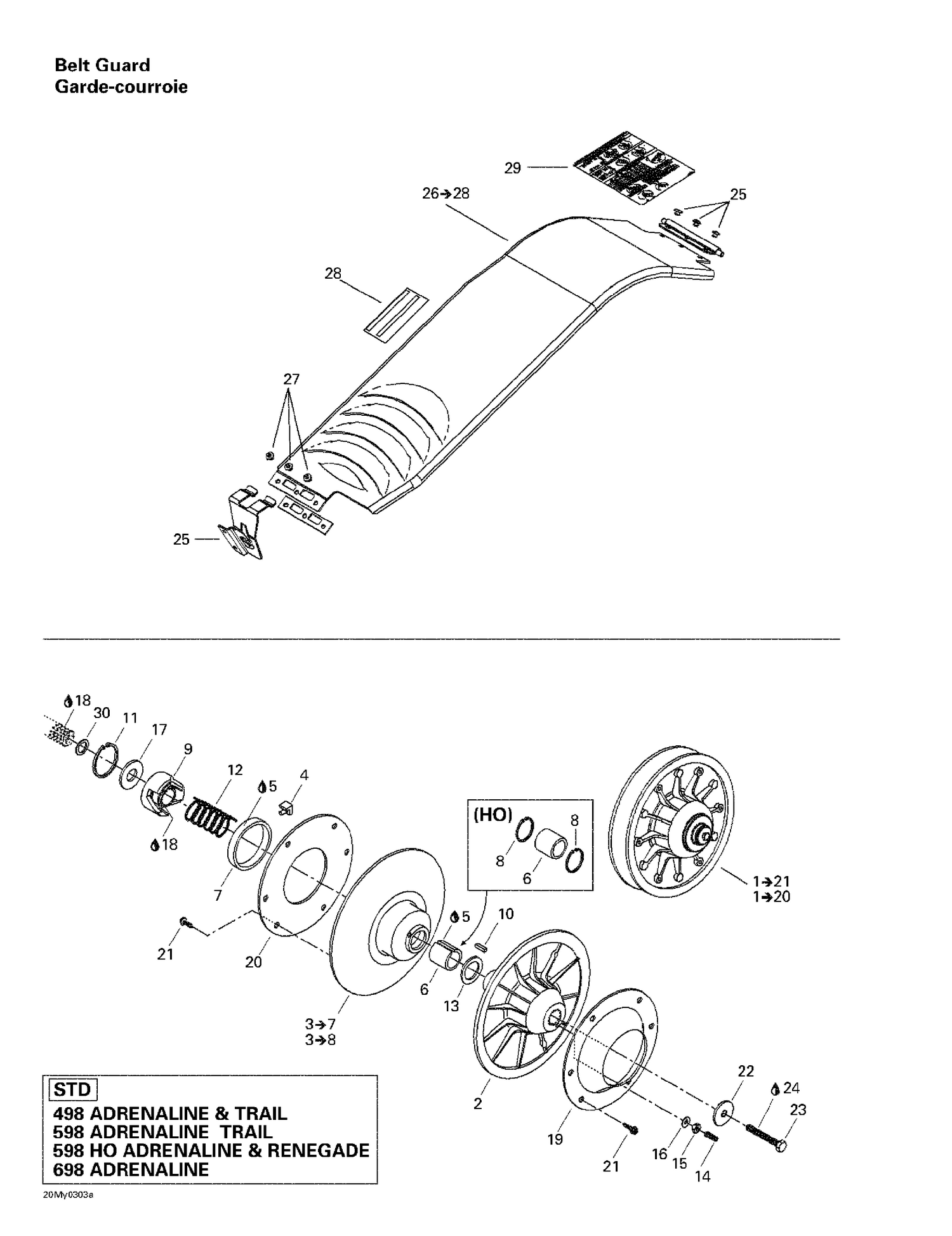

| Ref | Part Number | Description |
|---|
| 2 |
417126477 |
Fixed Flange |
| 4 |
414918000 |
CAM SLIDER SHOE - Call your local BRP dealership |
| 5 |
413703100 |
Loctite 609, 10 ml |
| 6 |
415011200 |
BUSHING - Call your local BRP dealership |
| 7 |
414876600 |
GARLOCK BUSHING - Call your local BRP dealership |
| 10 |
414820800 |
Key |
| 11 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 12 |
414558900 |
RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 13 |
504141900 |
Thrust Washer |
| 14 |
206263044 |
Socket Set Screw M6 X 30 |
| 15 |
232061414 |
Hex. Nut M6 |
| 16 |
420245370 |
WASHER - Call your local BRP dealership |
| 17 |
504141800 |
Washer |
| 18 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 22 |
517302322 |
Strength Washer |
| 23 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
417300001 |
Bracket |
| 27 |
390402200 |
Pop Rivet 3/16" |
| 28 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 29 |
516001639 |
Decal, Suspension Adjustment |
