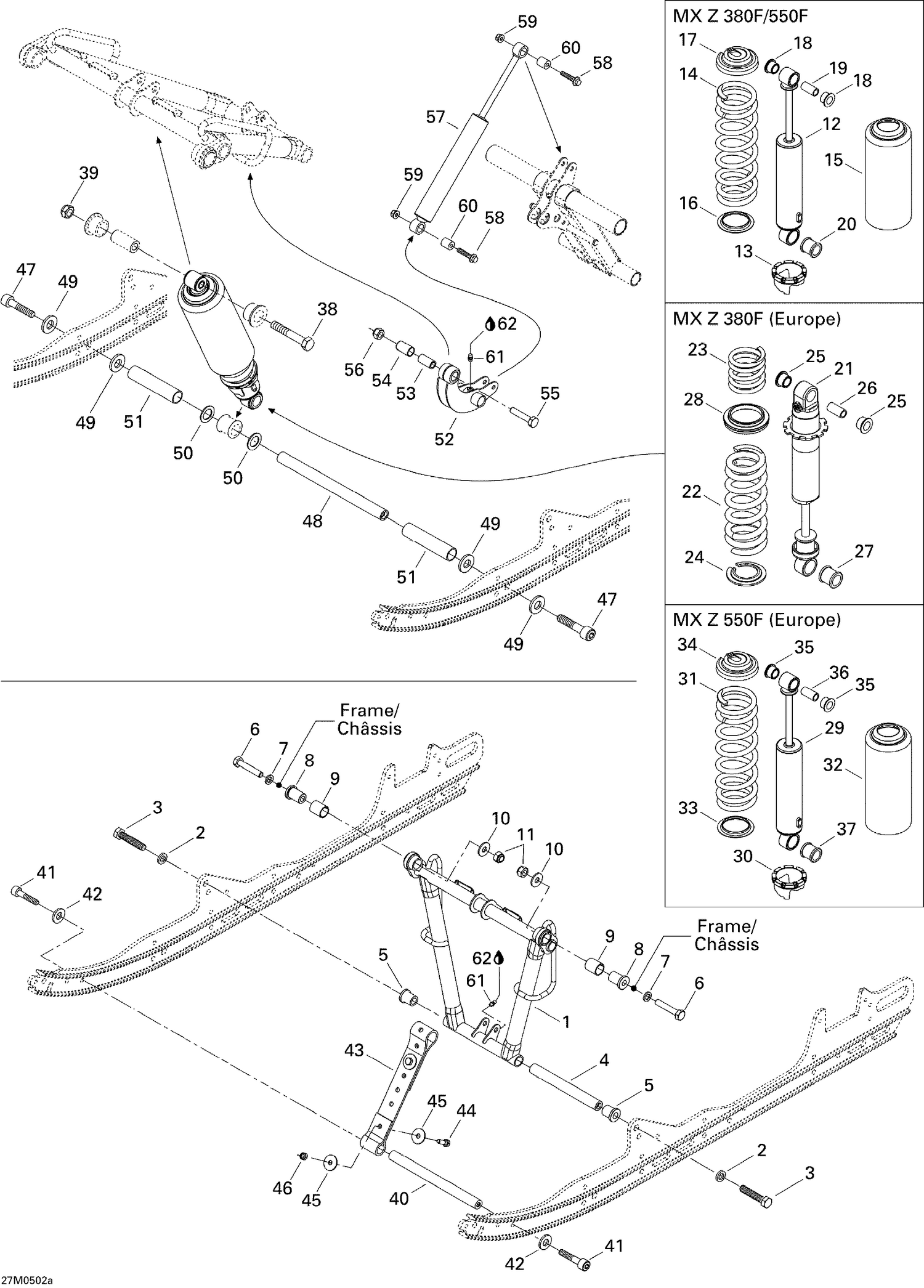

08- Front Arm MX Z 380F

08- Front Arm MX Z 380F

Parts (43)

RefPart NumberDescription
1 503191071 Front Arm
2 503189276 Washer
3 207226044 HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership
4 503189313 SHAFT - Call your local BRP dealership
5 503189323 CUSHION - Call your local BRP dealership
6 207005544 Hex. Screw M10 X 55
7 732900049 Washer
8 503190373 EXTENSION - Call your local BRP dealership
9 503190474 EXTENDED BUSHING - Call your local BRP dealership
10 250200014 Flat Washer M10 This part replaces 506151251.
11 233601416 Elastic Locking Nut M10 X 1.5
29 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 XXX Not Available As Spare Parts
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 XXX Not Available As Spare Parts
35 XXX Not Available As Spare Parts
36 XXX Not Available As Spare Parts
37 XXX Not Available As Spare Parts
38 207005044 Hex. Screw M10 X 1.5 X 50
39 233601416 Elastic Locking Nut M10 X 1.5
40 503189562 AXLE - Call your local BRP dealership
41 205503544 Socket Head Screw M10 X 35, Scotch Grip
42 503189564 Washer
43 503190782 STOPPER STRAP - Call your local BRP dealership
44 207682544 Hex. Flange Screw M8 X 25
45 224081301 Flat Washer
46 233281414 Hex. Flange Elastic Nut M8
47 205523544 Socket Head Screw M12 X 35, Scotch Grip
48 503189272 CENTER SHOCK SHAFT - Call your local BRP dealership
49 503189276 Washer
50 503189273 Washer
51 503189274 SPACER - Call your local BRP dealership
52 503189845 Rocker
53 503189388 Rocker Axle
54 503189626 CUSHION - Call your local BRP dealership
55 207005044 Hex. Screw M10 X 1.5 X 50
56 233601416 Elastic Locking Nut M10 X 1.5
58 207684044 Hex. Flange Screw M8 X 40
59 233281414 Hex. Flange Elastic Nut M8
60 414936000 Bushing
61 408200700 Grease Fitting
