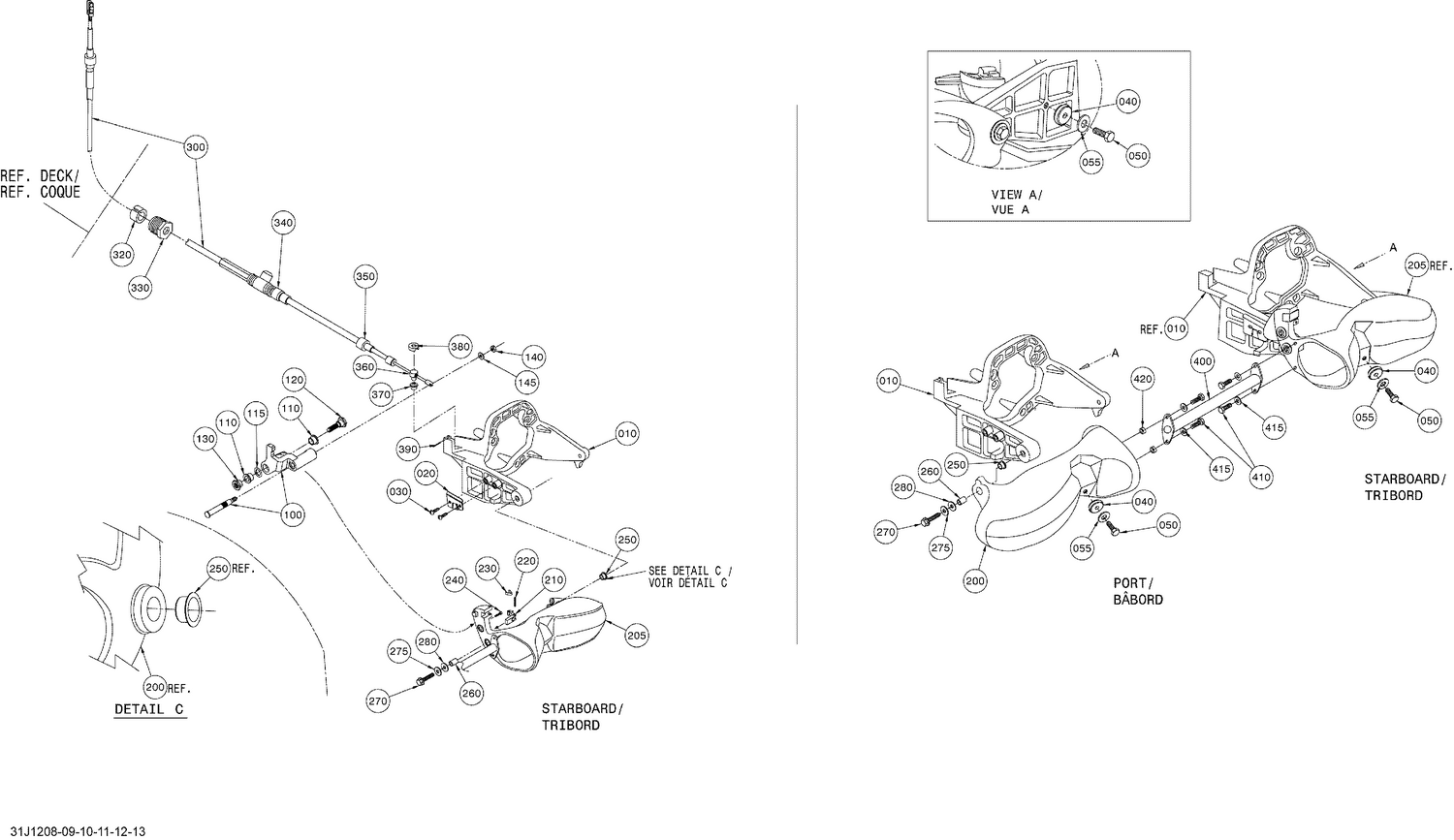

| Ref | Part Number | Description |
|---|
| 10 |
204170214 |
Reverse Gate Support |
| 20 |
271000485 |
STOP PAWL - Call your local BRP dealership |
| 30 |
204100270 |
SCREW-MACH.PAN HD.SLTD.10-24 X 1/2-SS - Call your local BRP dealership |
| 40 |
271001813 |
Anode Zinc |
| 50 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 55 |
234061600 |
Stainless Flat Washer M6 |
| 100 |
0460979 |
NEEDS DESCRIPTION This part replaces 204170230. |
| 110 |
0308532 |
Bushing This part replaces 204130036. |
| 115 |
204100237 |
WASHER, NYLON - Call your local BRP dealership |
| 120 |
204100124 |
SHOULDER SCREW - Call your local BRP dealership |
| 130 |
204100123 |
SHOULDER NUT - Call your local BRP dealership |
| 140 |
0460000 |
NUT-STOP ELASTIC 1 - Call your local BRP dealership This part replaces 204100034. |
| 145 |
234052600 |
Flat Washer 5 mm, Stainless |
| 200 |
268000106 |
Reverse Gate, Port Side |
| 205 |
268000107 |
Reverse Gate, Starboard |
| 210 |
204170220 |
HOOK - Call your local BRP dealership |
| 220 |
211400009 |
Pin |
| 230 |
271000431 |
Spring |
| 240 |
204100127 |
Socket Head Screw |
| 250 |
204130237 |
Bushing |
| 260 |
204170177 |
Sleeve |
| 270 |
204100163 |
Hex. Flange Screw 18 X 1.56 |
| 275 |
234082600 |
Flat Washer 8 mm, Stainless |
| 280 |
204100128 |
WASHER, NYLON - Call your local BRP dealership |
| 300 |
0460179 |
CABLE-REVERSE This part replaces 268000110. |
| 320 |
204130420 |
Slip Grommet - Call your local BRP dealership |
| 330 |
277001729 |
Steering Cable Lock This part replaces 277000784. |
| 340 |
277001583 |
End Piece This part replaces 277000846. |
| 350 |
277001582 |
Wiper Rod This part replaces 277000849. |
| 360 |
204130038 |
THREADED END PIECE - Call your local BRP dealership |
| 370 |
204130237 |
Bushing |
| 380 |
296000396 |
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212. |
| 390 |
204130040 |
Cotter Pin |
| 400 |
268000075 |
REVERSE ROD - Call your local BRP dealership |
| 410 |
207142060 |
SCREW HEX. M4 X 20 - Call your local BRP dealership |
| 415 |
234042600 |
Flat Washer 4 mm, Stainless |
