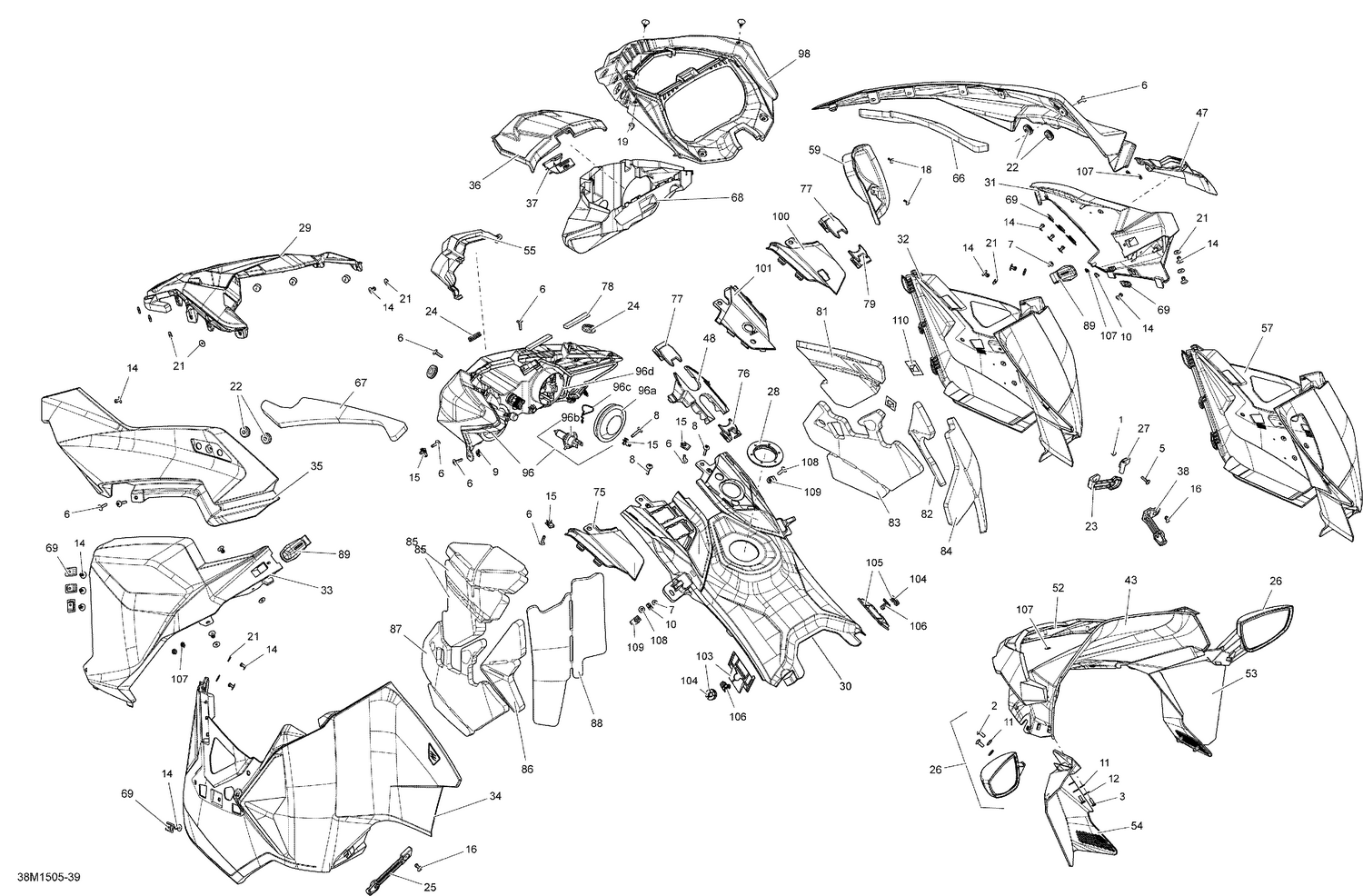

| Ref | Part Number | Description |
|---|
| 1 |
233251434 |
Flange Elastic Nut M5 |
| 2 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 3 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 5 |
250000792 |
Torx Screw M5 X 20 This part replaces 250000465. |
| 6 |
250000528 |
Torx Screw M5 X 20 |
| 7 |
250000565 |
Hexalob Screw M4 X 10 |
| 8 |
250000587 |
Torx Screw M5 X 26 |
| 9 |
250100035 |
Jack Nut M5 |
| 10 |
250100156 |
Weld Nut M4 |
| 11 |
250200024 |
Rubber Washer 5 mm |
| 12 |
250200025 |
Washer M5 |
| 14 |
293150104 |
Pop Rivet 3/16" |
| 15 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 16 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 18 |
250000725 |
Screw M4 X 16 |
| 19 |
XXX |
Not Available As Spare Parts |
| 21 |
517124300 |
Washer |
| 22 |
517307161 |
Grommet This part replaces 517302841. |
| 23 |
517303612 |
RH Panel Latch |
| 24 |
517303756 |
Grommet |
| 25 |
517303808 |
LH Panel Latch |
| 26 |
517305100 |
RH Mirror Ass'y |
| 26 |
517305101 |
LH Mirror Ass'y |
| 27 |
517304221 |
Latch Support |
| 28 |
517304518 |
Console Nut |
| 29 |
517304796 |
Deep Black, Center Hood |
| 30 |
517305910 |
ROADSTER RED REAR CONSOLE - Call your local BRP dealership |
| 31 |
517305341 |
ROADSTER RED RH PANEL - Call your local BRP dealership |
| 32 |
517304802 |
Deep Black, Panel Trim RH |
| 33 |
517305343 |
ROADSTER RED LH PANEL - Call your local BRP dealership |
| 34 |
517304805 |
Black, LH Flashing Panel |
| 35 |
517305243 |
HOOD RH B-293 - Call your local BRP dealership |
| 35 |
517305244 |
HOOD LH B-293 - Call your local BRP dealership |
| 36 |
517304912 |
Deep Black, Upper Storage Access Cover |
| 37 |
517304917 |
Cover Latch |
| 38 |
XXX |
Not Available As Spare Parts |
| 43 |
517304927 |
Windshield 345mm |
| 47 |
517304935 |
Deep Black, RH Panel Vent Grid |
| 48 |
517304970 |
Deep Black, Console Support |
| 52 |
860200944 |
Windshield Support Long, Yellow 2000 This part replaces 517305007. |
| 53 |
517305008 |
RH Air Deflector |
| 54 |
517305009 |
LH Air Deflector |
| 55 |
517305010 |
Headlight Trim Cap |
| 57 |
XXX |
Not Available As Spare Parts |
| 59 |
XXX |
Not Available As Spare Parts |
| 66 |
517305090 |
RH Rear Hood Foam |
| 67 |
517305091 |
LH Rear Hood Foam |
| 68 |
517305095 |
Deep Black, Trunk |
| 69 |
517305109 |
Rivet Plate |
| 75 |
517305143 |
Deep Black, LH Front Console |
| 76 |
517305147 |
Deep Black, Support Console Cap |
| 77 |
517305148 |
Deep Black, Support Console Cap |
| 78 |
517305157 |
Seal Joint |
| 79 |
XXX |
Not Available As Spare Parts |
| 81 |
517305196 |
RH Foam Upper |
| 82 |
517305197 |
RH Foam Central |
| 83 |
517305198 |
RH Foam Lower |
| 84 |
517305199 |
RH Foam Rear |
| 85 |
517305200 |
LH Upper Panel Foam |
| 86 |
517305201 |
LH Center Panel Foam |
| 87 |
517305202 |
LH Lower Panel Foam |
| 88 |
517305203 |
LH Rear Panel Foam |
| 89 |
517305279 |
Panel Latch |
| 96a |
219400070 |
Cap |
| 96b |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 96c |
219800282 |
Holder Bracket |
| 96d |
219800281 |
Spring |
| 98 |
517305511 |
Deep Black, Indicator Support |
| 100 |
XXX |
Not Available As Spare Parts |
| 101 |
517305548 |
CONSOLE FR B-160 - Call your local BRP dealership |
| 103 |
517305722 |
LH Panel Clip Ass'y, Black |
| 104 |
517305723 |
Ring |
| 105 |
517305724 |
RH Panel Clip Ass'y, Black |
| 106 |
517305734 |
Pin |
| 107 |
250100158 |
Push Nut |
| 107 |
732610072 |
Push Nut |
| 108 |
250000705 |
Torx Truss Screw M6 X 20 |
| 109 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
