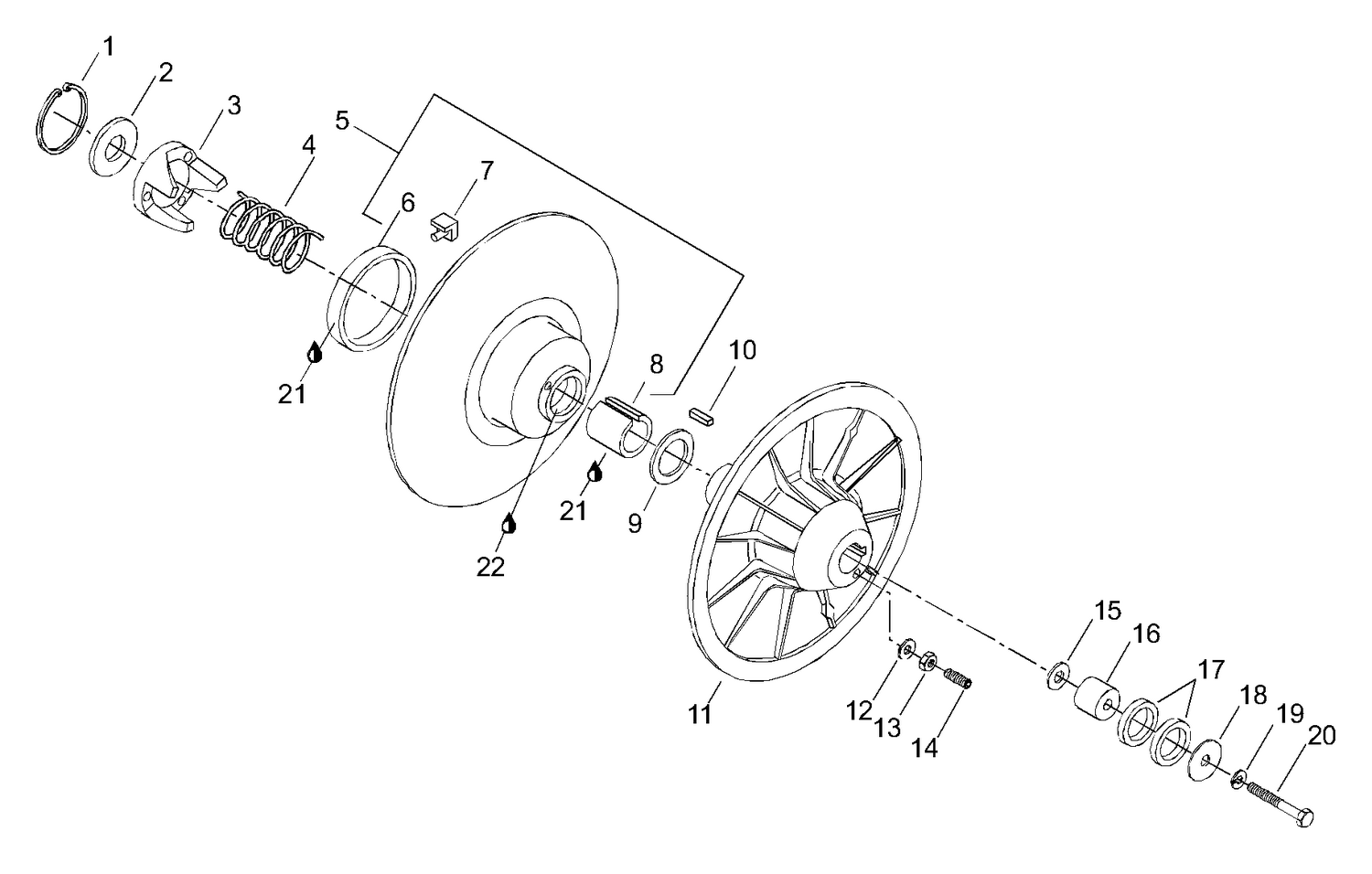

05- Driven Pulley
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 2 | 504141800 | Washer |
| 3 | 417126333 | Cam (44 dgr.) |
| 4 | 414505800 | RELEASE SPRING (ORANGE) - Call your local BRP dealership |
| 6 | 414876600 | GARLOCK BUSHING - Call your local BRP dealership |
| 7 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 8 | 415011200 | BUSHING - Call your local BRP dealership |
| 9 | 504141900 | Washer |
| 10 | 414820800 | Key |
| 11 | 504141600 | Fixed flange |
| 12 | 420245370 | WASHER - Call your local BRP dealership |
| 13 | 232061414 | Nut M6 |
| 14 | 206263044 | Socket head screw |
| 15 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 16 | 504260700 | Sleeve |
| 17 | 504108200 | SHIM - Call your local BRP dealership |
| 18 | 517078700 | WASHER - Call your local BRP dealership |
| 19 | 20014 | Spring washer |
| 20 | 40861 | Screw M8x65 |
| 21 | 413703100 | Loctite 609, 10cc |
