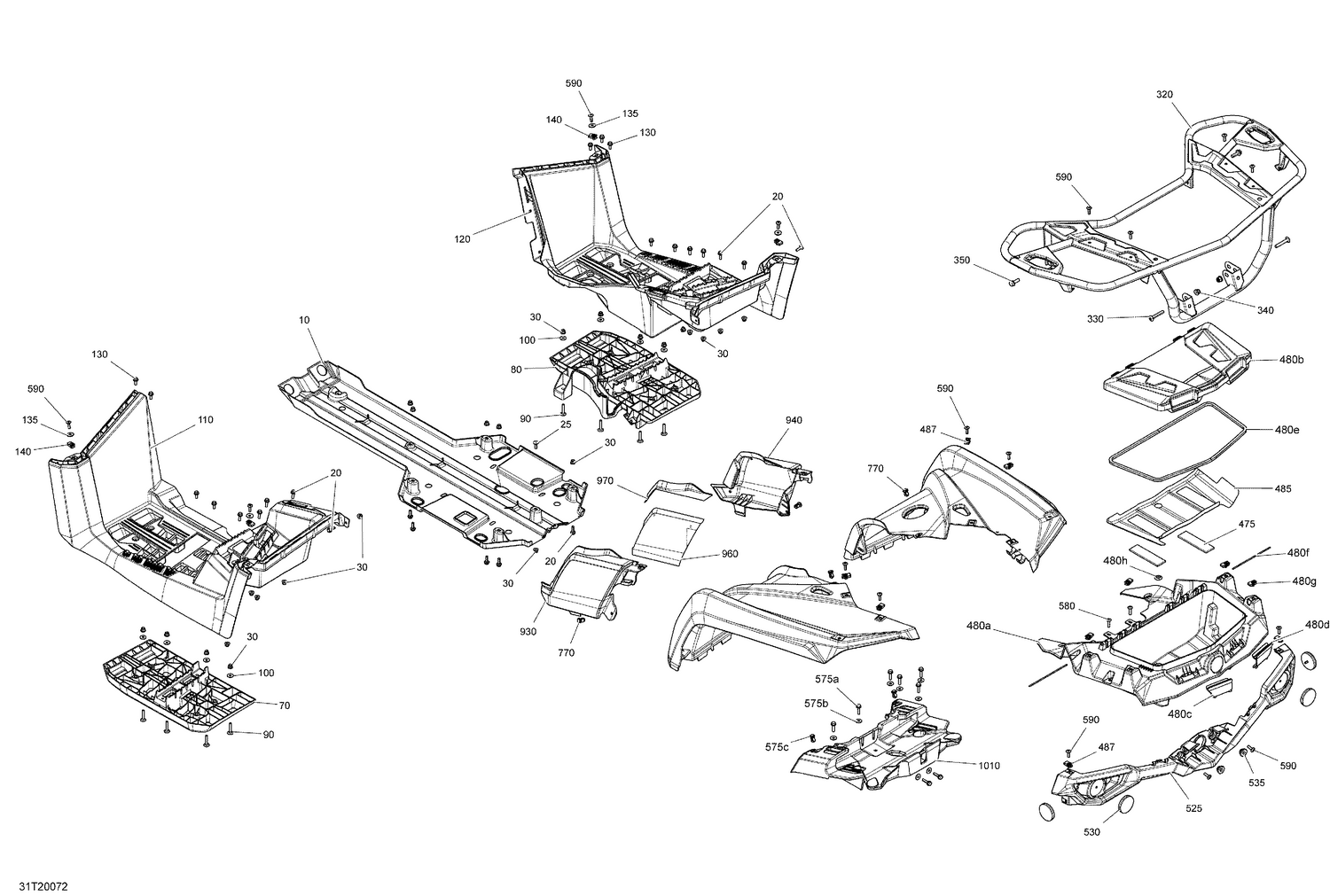

09- Body - Rear Section
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705003525 | LH Footrest Max |
| 120 | 705007724 | RH Footrest Max |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 320 | 715005988 | Rear Luggage Rack Ass'y This part replaces 715002787. |
| 330 | 250000761 | Torx Truss Screw M8 X 50 |
| 340 | 233281464 | Elastic Flange Nut M8 |
| 350 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 475 | 293830163 | Rubber Pad |
| 480a | 715004412 | Storage Cover This part replaces 705007136. |
| 480b | 715004412 | Storage Cover |
| 480c | 705007448 | LH Box Rear Latch |
| 480e | 219704452 | Was 715900411 Neoprene Seal |
| 480f | 705007531 | Retaining Rod |
| 480g | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 480h | 414859400 | CAP - Call your local BRP dealership |
| 485 | 705007487 | Heat Deflector Sheet |
| 487 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 525 | 705005576 | Rear Facia |
| 530 | 705011221 | Red Reflector |
| 535 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 575a | 250000841 | Hex Flange Screw M6 X 25 |
| 575b | 234062670 | Stainless Steel Flat Washer |
| 575c | 293150230 | Tuflok Plastic Rivet |
| 580 | 250000807 | Torx Truss Screw M6 X 25 |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 930 | 715001897 | LH Extension Panel |
| 940 | 705004348 | RH Extension Panel |
| 960 | 705006870 | Heat Shield |
| 970 | 705006871 | Heat Shield |
