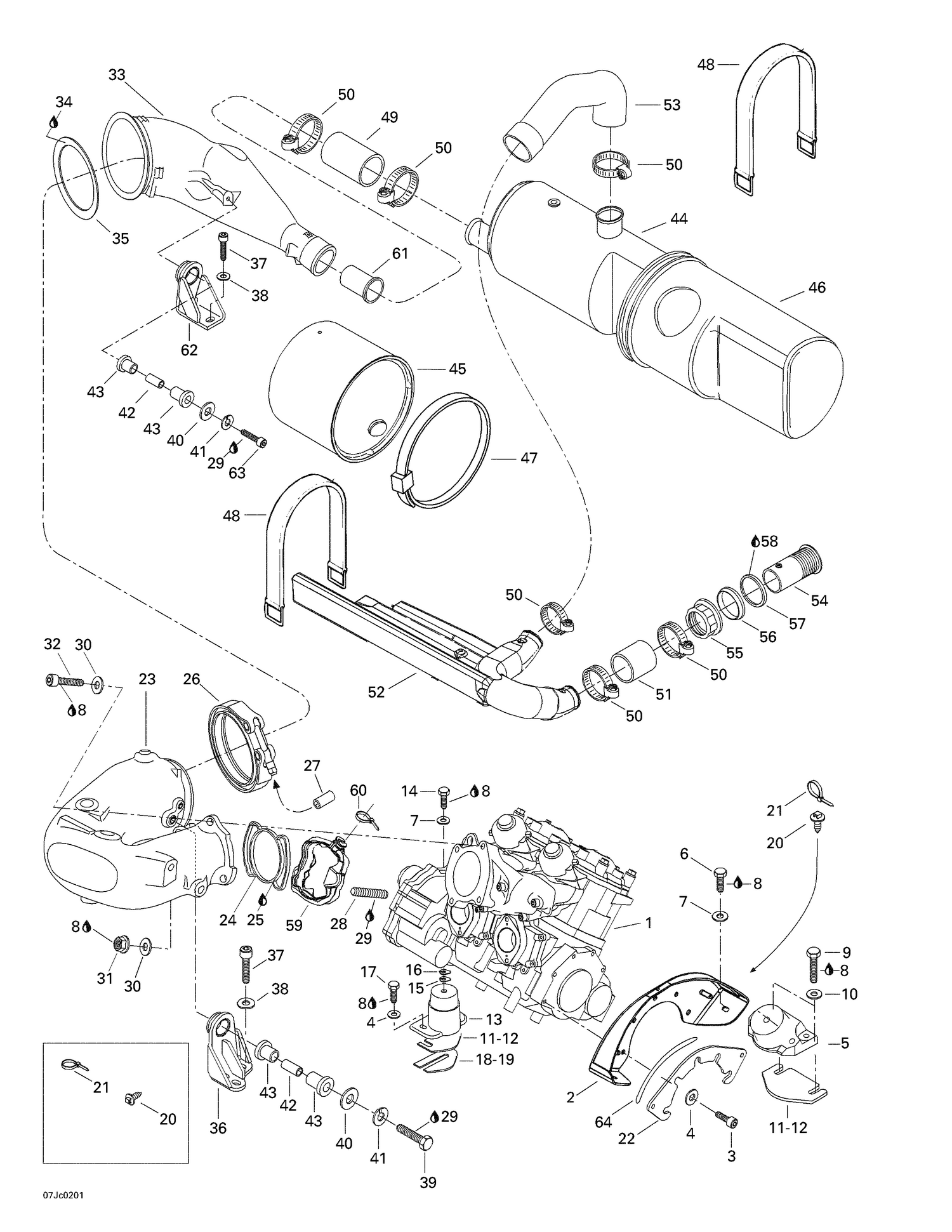

01- Engine Support And Muffler

01- Engine Support And Muffler

Parts (62)

RefPart NumberDescription
1 270000522 Rotax Engine 947 (Silver)
2 270000359 Engine Support
3 205582560 Socket Head Screw M8 X 25, Scotch Grip
4 234081600 Stainless, Flat Washer 8 mm
5 270000421 Rubber Mount, Black
6 207181660 Hex. Screw M8 X 16
7 234082600 Flat Washer 8 mm, Stainless
8 293800060 Loctite 243, 10 ml
9 207184060 Hex. Screw M8 X 40
10 234081600 Stainless, Flat Washer 8 mm
11 270000122 Shim 0.3 mm
12 270000123 SHIM 1.3 MM - Call your local BRP dealership
13 270000422 Rubber Mount, Black
14 207182060 HEX. SCREW M8 X 20 - Call your local BRP dealership
15 270000024 SHIM 0.4 MM - Call your local BRP dealership
16 270000025 SHIM 1.3 MM - Call your local BRP dealership
17 207184060 Hex. Screw M8 X 40
18 0460868 NEEDS DESCRIPTION This part replaces 204250048.
19 204250049 SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.
20 293730040 Mount Dart This part replaces 293730018.
21 414115200 Tie-Rap 180 mm
22 293250110 Gasket
23 274000928 Head Pipe Ass'y
24 290931990 Exhaust Gasket
26 274000510 EXHAUST CLAMP - Call your local BRP dealership
27 219704412 Polyurethane Hose, 8 Mm 3000Mm Long
28 250300008 STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership
29 293800005 Loctite 271, 10 ml
30 211200051 Flat Washer
31 233101600 Hex. Flange Nut M10
32 244003560 SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership This part replaces 205503560.
33 274000658 Exhaust Cone
34 293800090 Sealant, Loctite, 80 ml
35 274000511 SEALING RING - Call your local BRP dealership
36 274000890 Pipe Support
37 244083060 SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
38 250200012 FLAT WASHER M8.4 - Call your local BRP dealership
39 207204060 SCREW-HEX.CAP-DIN.931A2 S.GRIP - Call your local BRP dealership
40 234002600 Flat Washer 10 mm, Stainless
41 234101601 Helicoidal Lock Washer M10
42 274000861 BUSHING - Call your local BRP dealership
43 293830065 RUBBER BUSHING - Call your local BRP dealership
44 274000749 Muffler (Black)
45 274000796 MUFFLER COVER, FRONT - Call your local BRP dealership
46 274000799 Muffler Cover, Rear
47 293750020 WRAP_TIE 828 X 9 - Call your local BRP dealership
48 293850097 Retainer Strap This part replaces 293850021.
49 274000530 EXHAUST HOSE - Call your local BRP dealership
50 293650064 Tridon Clamp
51 274000616 Exhaust Hose
52 295500683 Resonator
53 274000525 Exhaust Hose
54 274000222 EXHAUST OUTLET - Call your local BRP dealership
55 274000224 Nut 72 mm
56 274000225 STABILIZING WASHER - Call your local BRP dealership
57 293250041 GASKET - Call your local BRP dealership
58 296000309 Silicone Sealant 51388, 300 ml
59 274000862 PICK UP ENVELOPE - Call your local BRP dealership
60 293750002 Tie Wrap 142 mm
61 204340255 Exhaust Insert
62 274000878 Pipe Support
63 205004060 SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership
