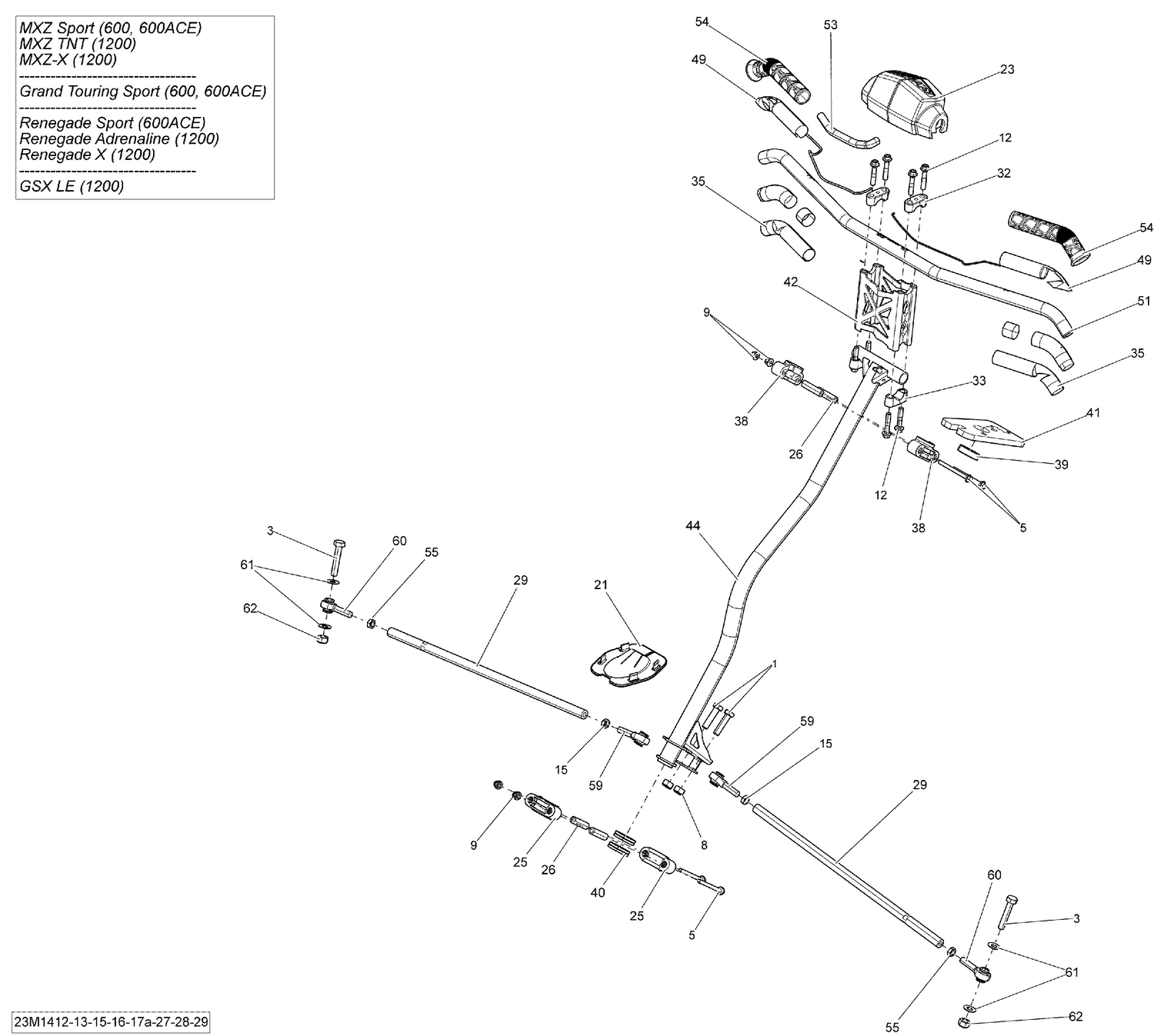

07- Steering
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 3 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 5 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 8 | 232500416 | Elastic Stop Nut M10 |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 12 | 250000352 | Hex. Flange Screw M8 X 40 |
| 15 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 21 | 506152163 | Plate |
| 23 | 506152192 | Steering Pad |
| 25 | 506152217 | Lower Half-Housing |
| 26 | 506152297 | Housing Bushing |
| 29 | 506152496 | Tie-Rod Ass'y |
| 32 | 506152751 | Steering Support This part replaces 506152395. |
| 33 | 506152751 | Steering Support This part replaces 506152395. |
| 35 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 38 | 506152508 | Upper Half-Housing |
| 39 | 506152509 | Upper Anti-Vibration Gasket |
| 40 | 506152518 | Lower Vibration Ring |
| 41 | 506152521 | Bushing |
| 42 | 860200819 | HANDLEBAR EXTENSION KIT (115MM) - Call your local BRP dealership This part replaces 506152571. |
| 44 | 506152964 | Steering Column This part replaces 506152585. |
| 49 | 506152674 | Heating Element 20 WATT |
| 51 | 506152710 | BLACK HANDLE BAR - Call your local BRP dealership |
| 53 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 54 | 506152560 | Grip 148mm |
| 55 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 59 | 506152081 | LH Thread Ball Joint |
| 60 | 506152019 | RH Threaded Ball Joint |
| 61 | 506152582 | Washer |
