| Ref | Part Number | Description |
|---|
| 1 |
0382382 |

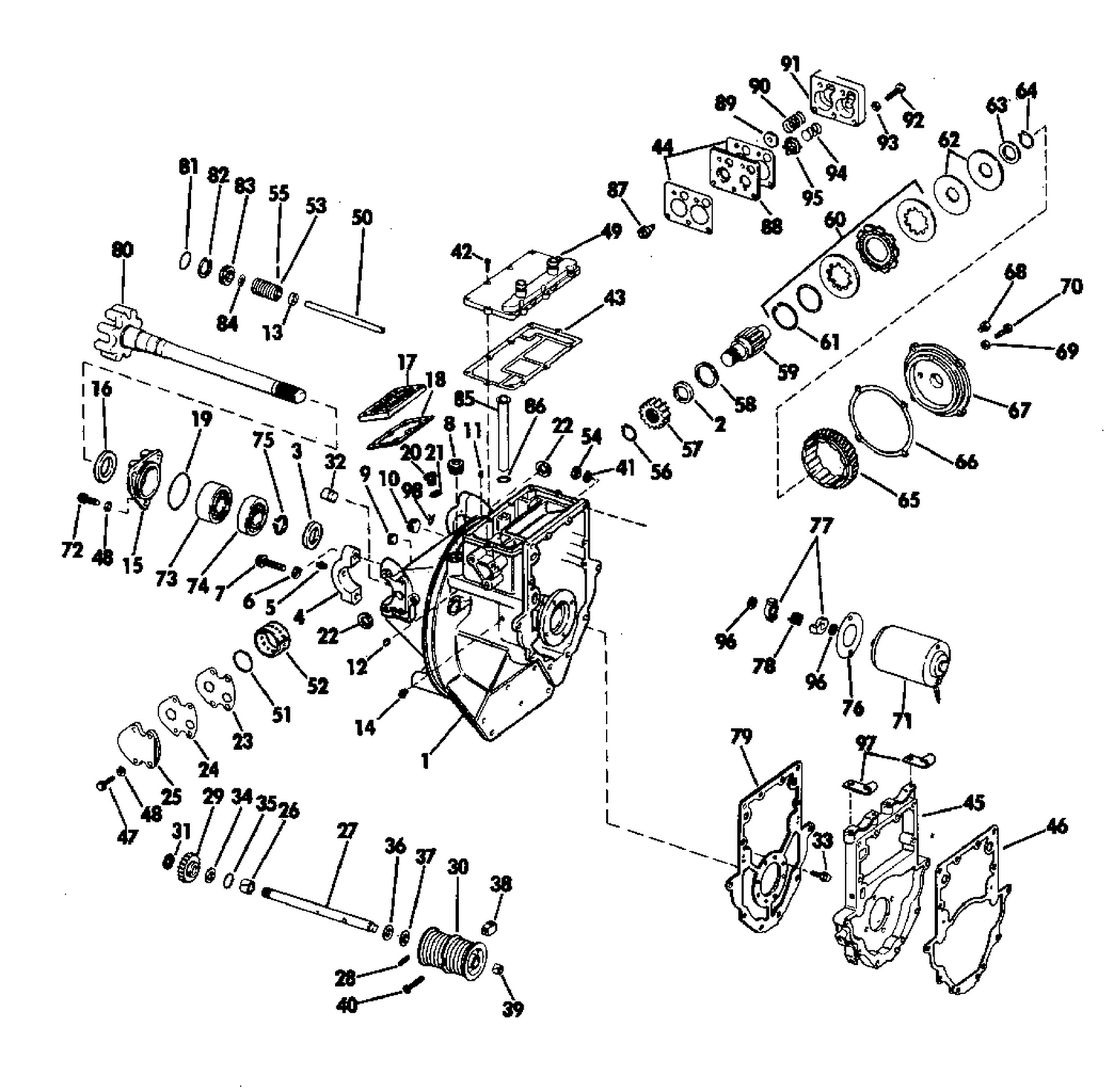

INTERMEDIATE HOUSING & SEAL RETAINER |
| 4 |
0383148 |
PIVOT CAP ASSEMBLY This part replaces 0379139. |
| 6 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 7 |
0308745 |
SCERW,Pivot cap |
| 8 |
0305124 |
PLUG |
| 9 |
0314273 |
PLUG |
| 10 |
3609961 |
PLUG |
| 11 |
0308897 |
PLUG |
| 13 |
0308634 |
BUSHING, Tilt worm shaft |
| 15 |
0313242 |
RETAINER |
| 16 |
0309989 |
OIL RETAINER |
| 17 |
0313247 |
COVER, Oil reservoir |
| 18 |
0313246 |
GASKET, Cover |
| 19 |
0308876 |
O RING CRANKCASE HEAD LOWER |
| 20 |
0313224 |
PLUG,Oil fill |
| 21 |
0315189 |
GASKET, Oil indicator |
| 22 |
0313244 |
SEAL |
| 23 |
0313245 |
PLATE |
| 24 |
0313243 |
GASKET |
| 25 |
0313264 |
COVER |
| 27 |
0313237 |
SHAFT, Steering |
| 28 |
0382325 |
SPIROL PIN |
| 29 |
0908461 |
GEAR, Shaft This part replaces 0313239. |
| 30 |
0313322 |
PULLEY, Steering |
| 31 |
0911316 |
RETAINING RING This part replaces 0313238. |
| 32 |
0310964 |
PLUG |
| 33 |
0307608 |
SCREW |
| 34 |
0308697 |
WASHER |
| 36 |
0309603 |
WASHER |
| 37 |
0308879 |
SHIM |
| 38 |
0308572 |
CLAMP |
| 39 |
0308693 |
BUSHING, Front |
| 40 |
0308685 |
SCREW, Clamp |
| 41 |
0306453 |
LOCKWASHER, Fuel pump |
| 42 |
0307195 |
SCREW RECTIFIER MOUNTING |
| 43 |
0308452 |
GASKET, Water cover |
| 44 |
0305586 |
GASKET |
| 45 |
0310470 |
ADAPTER |
| 46 |
0310652 |
GASKET,Adapter to powerhead |
| 49 |
0308454 |
WATER COVER |
| 50 |
0980183 |
SHAFT, Tilt worm This part replaces 0310613. |
| 51 |
0308626 |
O RING |
| 52 |
0308602 |
LINER |
| 54 |
0306320 |
NUT |
| 55 |
0309525 |
PIN, Tilt worm shaft |
| 56 |
0911318 |
RETAINING RING This part replaces 0308633. |
| 57 |
0308453 |
GEAR |
| 58 |
0308800 |
THRUST WASHER |
| 60 |
0380561 |
CLUTCH DISC & SHIM PKG |
| 62 |
0308809 |
BELLEVILLE SPRING |
| 63 |
0309845 |
SPACER |
| 63 |
0908168 |
WORM This part replaces 0308725. |
| 64 |
0309844 |
RETAINING RING |
| 65 |
0308806 |
WORM WHEEL |
| 66 |
0308799 |
GASKET |
| 67 |
0908564 |
COVER This part replaces 0308798. |
| 69 |
0308807 |
SHAFT |
| 71 |
0382138 |
POWER PISTON ASSY |
| 72 |
0308707 |
SCREW |
| 73 |
0379593 |
BEARING ASSEMBLY, Outer |
| 75 |
0308629 |
RETAINING RING |
| 76 |
0311508 |
GASKET |
| 77 |
0980274 |
COUPLING & KEY This part replaces 0379594. |
| 78 |
0309267 |
SPRING |
| 79 |
0314199 |
GASKET |
| 80 |
0379416 |
DRIVESHAFT & BALL GEAR |
| 82 |
0308632 |
RETAINING RING |
| 83 |
0308631 |
RETAINER BEARING |
| 84 |
0309272 |
WASHER |
| 85 |
0308855 |
WATER TUBE |
| 87 |
0377276 |
VERNATHERM |
| 88 |
0308601 |
PLATE |
| 89 |
0308070 |
VALVE |
| 90 |
0305591 |
SPRING, Vernathem valve |
| 91 |
0305710 |
COVER |
| 92 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 94 |
0305587 |
SPRING, Check valve |
| 95 |
0305654 |
CHECK VALVE |
| 96 |
0310612 |
WASHER |
| 0382773 |
0382773 |
RETAINER & SEAL ASSEMBLY |
