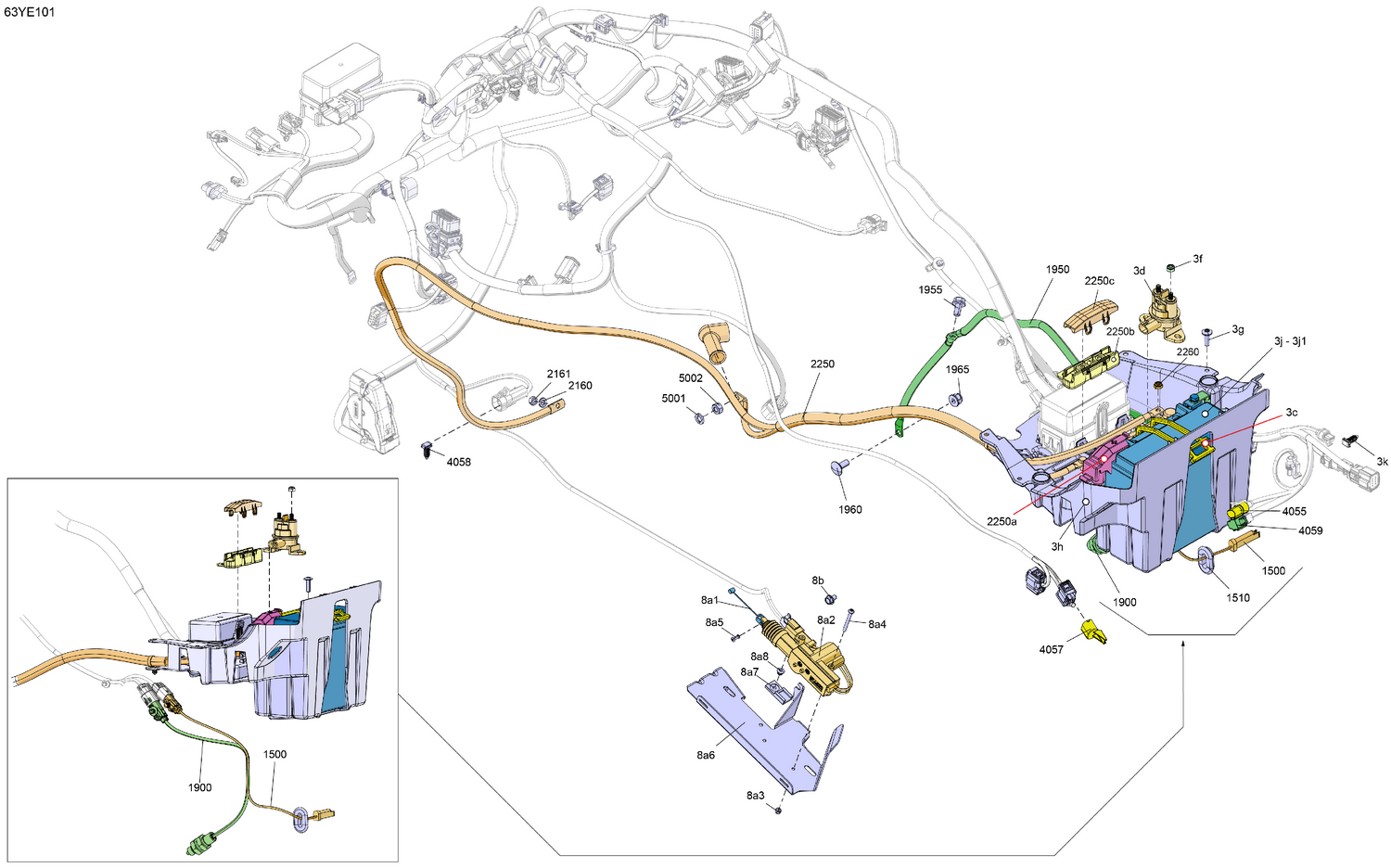

08- Electric - Rear Electric
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 3c | 520000528 | Latch |
| 3d | 278003012 | Starter Relay |
| 3f | 232561600 | Hex. Elastic Stop Nut M6 |
| 3g | 250000722 | Torx Screw M6 X 20 |
| 3h | 710008943 | Battery Support |
| 3j1 | 715500541 | Battery Bolt Kit |
| 3k | 710002033 | Connector Holder |
| 8a1 | 710002889 | Reverse Cable |
| 8a2 | 710011269 | Actuator |
| 8a3 | 232541414 | Elastic Stop Nut M4 |
| 8a4 | 205444056 | Socket Head Screw M4 X 40 |
| 8a5 | 390403000 | Pop Rivet 5/32 |
| 8a6 | 710010657 | Actuator Support |
| 8a7 | 270000141 | Clip |
| 8a8 | 293150293 | Pop Rivet 3/16 X ,425 |
| 8b | 210261250 | Hex. Flange Screw M6 X 12 |
| 1500 | 705601717 | Passenger Footpeg Position Sensor |
| 1510 | 517307638 | Oval Grommet |
| 1900 | 710009604 | Brake Switch |
| 1950 | 710008953 | Negative Battery Cable |
| 1955 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 1960 | 207782046 | Carriage Bolt M8 X 20 |
| 1965 | 233281464 | Elastic Flange Nut M8 |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2250a | 710008983 | Cap |
| 2250b | 710008098 | Fuse Holder Support |
| 2250c | 710008154 | Fuse Holder Cover |
| 2260 | 232561600 | Hex. Elastic Stop Nut M6 |
| 4055 | 710004906 | Connector Plug |
| 4057 | 710004902 | Connector Plug |
| 4058 | 710002033 | Connector Holder |
| 4059 | 710004903 | Connector Plug |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
