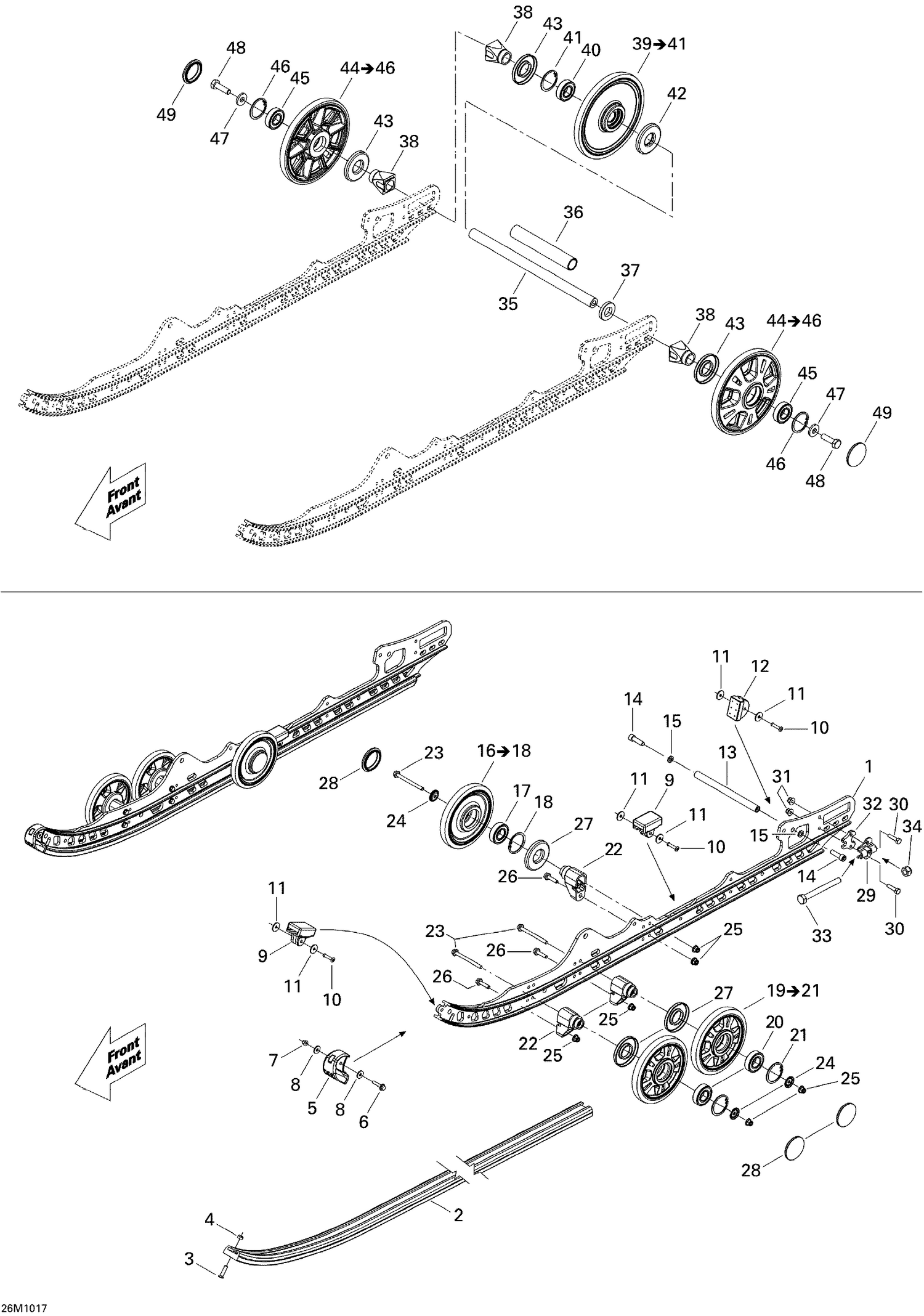

08- Rear Suspension X
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192318 | RAIL_SUSPENSION 137 - Call your local BRP dealership |
| 2 | 503191306 | Black, Slider Shoe 137'' |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503191137 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 391301600 | Washer |
| 9 | 503190576 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 503191291 | Rubber Stopper |
| 13 | 503191260 | Axle Strap |
| 14 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 15 | 503189564 | Washer |
| 17 | 503190396 | Ball Bearing |
| 18 | 415129371 | Retaining Ring |
| 20 | 503190396 | Ball Bearing |
| 21 | 415129371 | Retaining Ring |
| 22 | 503193894 | Casted Support This part replaces 503191833. |
| 23 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 24 | 503191820 | Wheel Cup M6 |
| 25 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 26 | 207662544 | Hex. Flange Screw M6 X 25 |
| 27 | 503190434 | Labyrinth Seal |
| 28 | 570063600 | Wheel Cap |
| 29 | 503192583 | Tensioner This part replaces 503190380. |
| 30 | 207063044 | Hex. Screw M6 X 30 |
| 31 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 32 | 503193250 | Spacer This part replaces 503190379. |
| 33 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 34 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 35 | 503190429 | Rear Axle |
| 36 | 503196317 | Spacer This part replaces 503190430. |
| 37 | 503190432 | Washer |
| 38 | 503190428 | Rear Wheel Spacer |
| 40 | 503190396 | Ball Bearing |
| 41 | 415129371 | Retaining Ring |
| 42 | 503190682 | Labyrinth Seal |
| 43 | 503190434 | Labyrinth Seal |
| 45 | 503190396 | Ball Bearing |
| 46 | 415129371 | Retaining Ring |
| 47 | 503190439 | Washer |
| 48 | 250000019 | Hex. Screw With Nylon |
