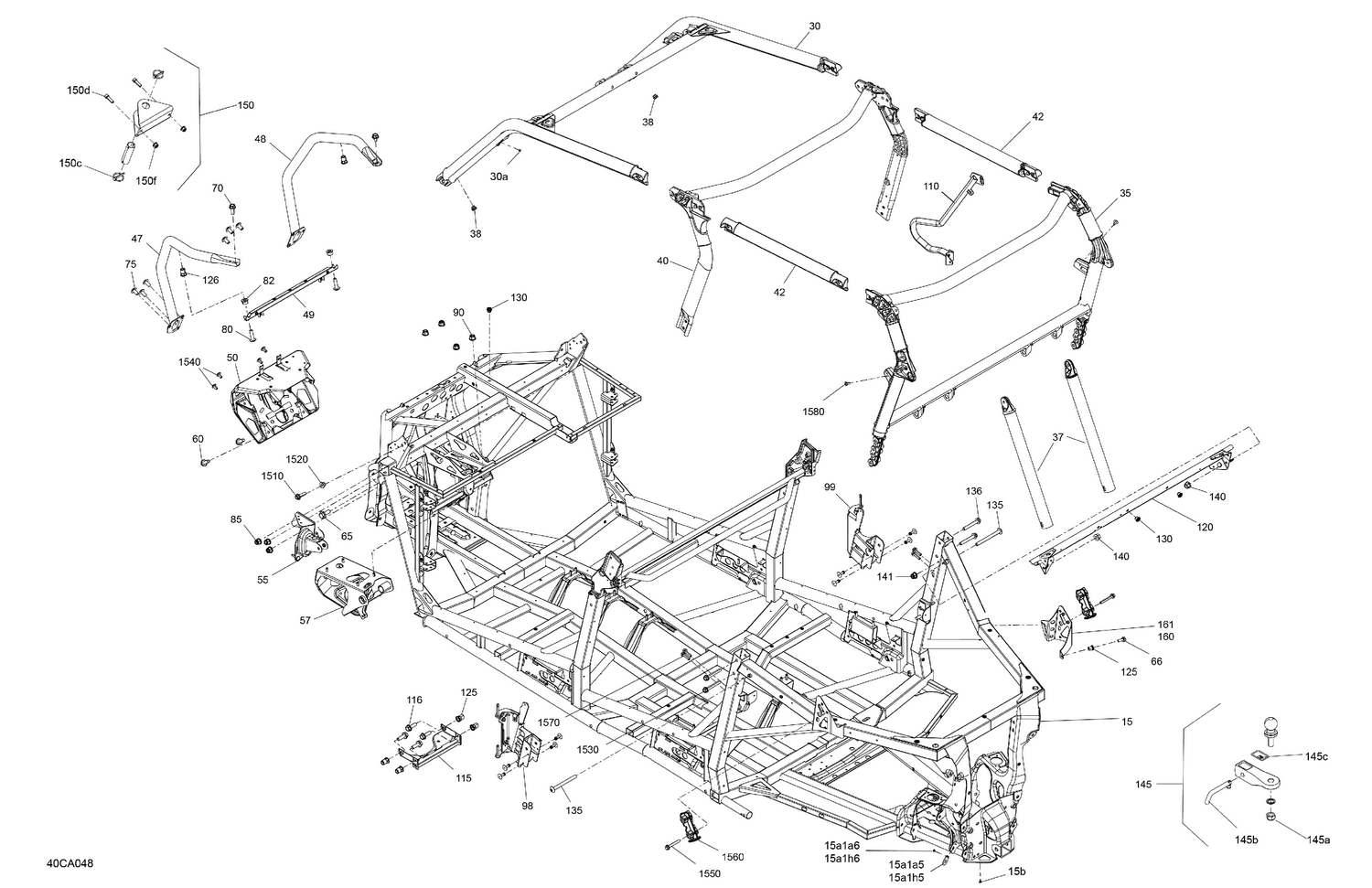

06- Frame - System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 15a1a5 | 705209479 | Shim |
| 15a1a6 | 390402200 | Pop Rivet 3/16" |
| 15a1h5 | 705209479 | Shim |
| 15a1h6 | 390402200 | Pop Rivet 3/16" |
| 15b | 390402200 | Pop Rivet 3/16" |
| 30a | 390402200 | Pop Rivet 3/16" |
| 35 | 715009349 | Deep Black, Rear Cage Ass'y |
| 37 | 705211125 | Deep Black, Rear Cage Extension |
| 38 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 40 | 703501203 | Mid Cage Max |
| 42 | 705209848 | Deep Black, Cage Extension |
| 47 | 705206303 | LH Front Bumper |
| 48 | 705206308 | RH Front Bumper |
| 49 | 705206313 | Cross Member |
| 50 | 705209043 | Deep Black, Front Bumper |
| 55 | 705206217 | Brake Support |
| 57 | 705206294 | DPS Support |
| 60 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 65 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 66 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 70 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 75 | 250000746 | Torx Truss Screw M8 X 16 |
| 80 | 250000745 | Hex Torx Truss M8 X30 |
| 82 | 705207229 | Bushing |
| 85 | 233281416 | Hex. Elastic Flange Nut M8 |
| 90 | 233281416 | Hex. Elastic Flange Nut M8 |
| 98 | 705211564 | LH Male Door Hinge Ass'y |
| 99 | 705211565 | RH Male Door Hinge Ass'y |
| 110 | 705207629 | RH Protector Tube (Sandtex Black) |
| 115 | 705211563 | Bearing Support |
| 116 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 120 | 705209434 | Central Tube |
| 125 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 126 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 135 | 250000806 | Torx Truss M8 X 90 |
| 136 | 250000954 | Torx Screw M6 X 70 |
| 140 | 233081436 | Hex. Flange Nut |
| 141 | 250000954 | Torx Screw M6 X 70 |
| 145a | 250100104 | Elastic Flange Nut M20 |
| 145b | 705204490 | Hitch Pin |
| 145c | 704906897 | Hitch Approval Decal |
| 150c | 605456518 | Pin |
| 150d | 205003044 | Socket Screw M10 x 30 |
| 150f | 233201414 | Hex. Flange Elastic Nut M10 |
| 160 | 705211569 | LH Rear Anchorage Support |
| 161 | 705211571 | RH Rear Anchorage Support |
| 1510 | 250000855 | Hex. Flange Screw M10 X 35 |
| 1520 | 233201466 | Flange Elastic Nut M10 |
| 1530 | 207607056 | Hex. Flange Screw M10 X 70 |
| 1540 | 250000746 | Torx Truss Screw M8 X 16 |
| 1550 | 207686044 | Hex. Flange Screw M8 x 60 |
| 1560 | 705210648 | Sleeve This part replaces 705209210. |
| 1570 | 207502546 | Hex. Flange Screw M10 X 25 |
