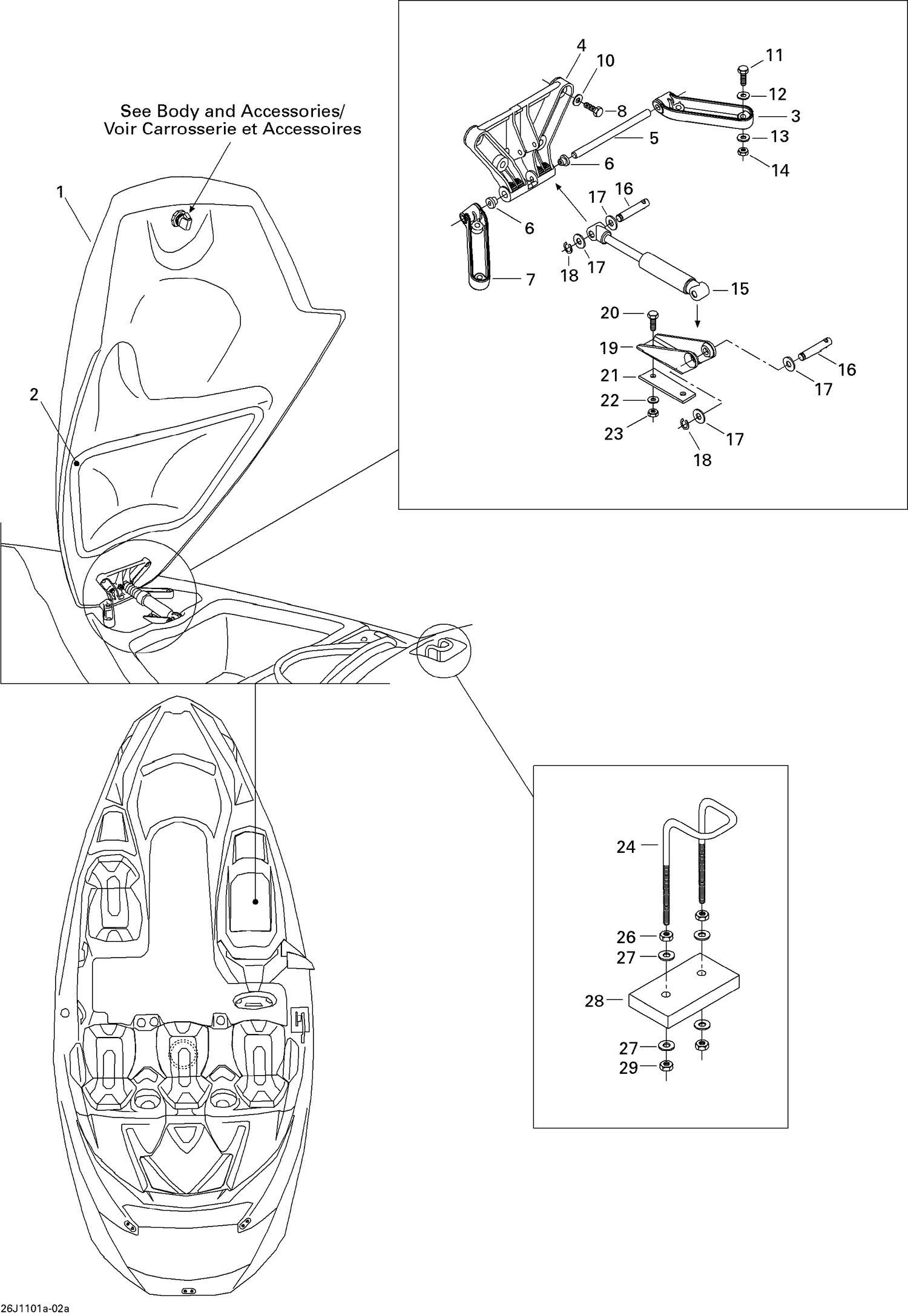

| Ref | Part Number | Description |
|---|
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
269700022111 |
RH HINGE - Call your local BRP dealership |
| 4 |
269700038 |
COVER HINGE - Call your local BRP dealership |
| 5 |
269700024 |
AXLE - Call your local BRP dealership |
| 6 |
293350016 |
CUSHION - Call your local BRP dealership |
| 7 |
269700023111 |
LH HINGE - Call your local BRP dealership |
| 8 |
207162560 |
Hex. Screw M6 X 25 |
| 10 |
234061600 |
Stainless Flat Washer M6 |
| 11 |
207063560 |
Hex. Screw M6 X 35 |
| 12 |
234061600 |
Stainless Flat Washer M6 |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 15 |
269501993 |
Shock-Gas This part replaces 269501864. |
| 16 |
211400006 |
SHORT PIN - Call your local BRP dealership |
| 17 |
234081600 |
Stainless, Flat Washer 8 mm |
| 18 |
293370008 |
CIRCLIP - Call your local BRP dealership |
| 19 |
291000855 |
SHOCK SUPPORT - Call your local BRP dealership |
| 20 |
207162560 |
Hex. Screw M6 X 25 |
| 21 |
291000079 |
REINFORCEMENT PLATE - Call your local BRP dealership |
| 22 |
234062600 |
Flat Washer M6, Stainless |
| 23 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 24 |
204620326 |
HOOK - Call your local BRP dealership |
| 26 |
232061600 |
Hex. Nut M6 |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
204620270 |
REINFORCEMENT PLATE - Call your local BRP dealership |
