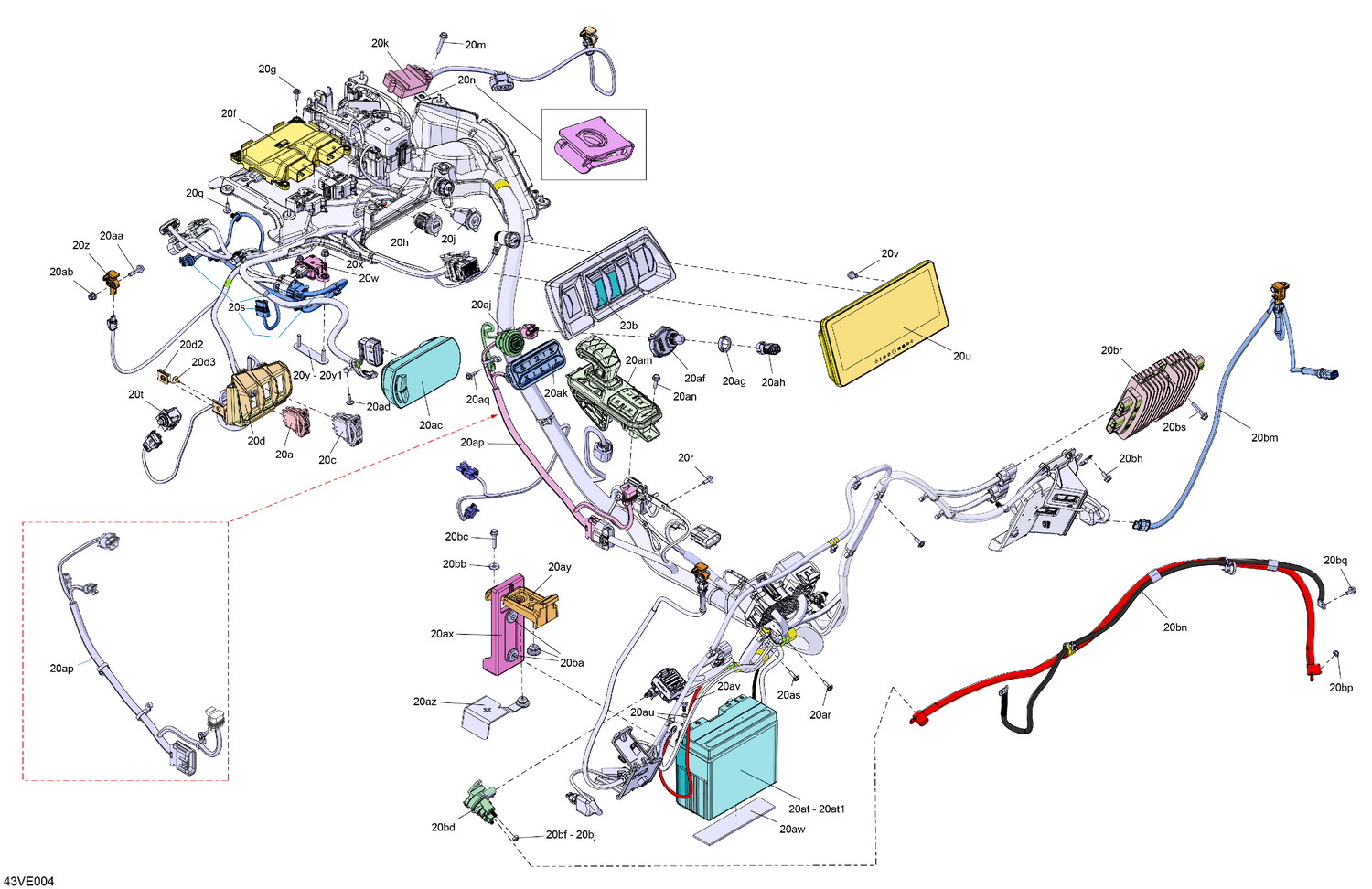

08- Electric - Central Electric
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 20a | 710007663 | Light Switch |
| 20aa | 207662554 | Hex. Flange Screw M6 X 25 |
| 20ab | 233261494 | Hex. Flange Elastic Nut M6 |
| 20ac | 710008298 | Multifunction Compact Gauge |
| 20ad | 250000725 | Screw M4 X 16 |
| 20af | 710008832 | Terminal DESS CAN |
| 20ag | 278004274 | Specialized Nut |
| 20ah | 710004964 | Grey Key RFID |
| 20aj | 710005213 | Start-Stop Button |
| 20ak | 710010054 | Multifunction Switch |
| 20am | 710007338 | Electronic Gear Shift Lever |
| 20an | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 20ap | 710007667 | Console Wiring Harness |
| 20aq | 250000959 | Screw PT Type K-50 X 16 |
| 20ar | 250000725 | Screw M4 X 16 |
| 20as | 250000959 | Screw PT Type K-50 X 16 |
| 20at1 | 250000282 | Battery Bolt Kit |
| 20au | 710009082 | Washer |
| 20av | 710009084 | Screw |
| 20aw | 293830126 | Rubber Pad |
| 20ax | 710004788 | Fixation Plate |
| 20ay | 710009128 | Battery Support |
| 20az | 710006471 | Battery Cable Cap |
| 20b | 710007173 | Plug Carling |
| 20ba | 705014429 | Rubber Stopper |
| 20bb | 234062410 | Flat Washer 6 mm |
| 20bc | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 20bd | 278003012 | Starter Relay |
| 20bf | 232561200 | Brass Elastic Stop Nut M6 |
| 20bh | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 20bj | 232561200 | Brass Elastic Stop Nut M6 |
| 20bm | 710008618 | Junction Wiring Harness |
| 20bn | 710007347 | Starter Wiring Harness |
| 20bp | 232561200 | Brass Elastic Stop Nut M6 |
| 20bq | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 20br | 710007558 | Voltage Regulator |
| 20c | 710007664 | Horn Switch |
| 20d2 | 250100208 | Panel Nut M6 X 1.0 |
| 20d3 | 250000805 | Plastite Screw M4 X 10 |
| 20f | 710010598 | BCM Moldule OPT #1 |
| 20g | 250000959 | Screw PT Type K-50 X 16 |
| 20h | 219400510 | USB Outlet |
| 20k | 278004506 | GPS |
| 20m | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 20n | 250100208 | Panel Nut M6 X 1.0 |
| 20q | 250000959 | Screw PT Type K-50 X 16 |
| 20r | 250000959 | Screw PT Type K-50 X 16 |
| 20s | 710008927 | Accelerator Pedal Wiring Harness |
| 20t | 710010023 | Door Switch |
| 20u | 710010375 | Multifunction Gauge 10 |
| 20v | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 20w | 710005998 | Yaw Rate Sensor |
| 20x | 233261494 | Hex. Flange Elastic Nut M6 |
| 20y1 | 710009651 | Sensor Support ED |
| 20z | 710004221 | Acceleration Sensor |
