| Ref | Part Number | Description |
|---|
| 1 |
0307028 |
SCREW |
| 2 |
0309924 |
SCREW |
| 3 |
0387432 |
CRANKCASE HEAD BRG. ASSY. |
| 5 |
0317831 |
Circlip |
| 6 |
0305123 |
O RING |
| 8 |
0396623 |
CRANKSHAFT ASSY. This part replaces 0389599. |
| 9 |
0319244 |
JOINT ANNULAIRE |
| 9 |
0324817 |
SEAL RING, 4 white stripes |
| 10 |
0317762 |
PALTE,Lower bearing |
| 11 |
0385503 |
BEARING , Ball |
| 12 |
0396610 |
CRANKCASE HEAD ASSY. This part replaces 0385502. |
| 14 |
0317763 |
SCREW & SEAL, Plate |
| 15 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 16 |
0308213 |
RETAINING RING |
| 17 |
0395627 |
BEARING & RETAINER This part replaces 0388595. |
| 18 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 19 |
0387787 |
BEARING Assembly, Connecting rod |
| 20 |
0394930 |
RING SET, Standard This part replaces 0385661. |
| 20 |
0396504 |
RING SET, .030 O.S This part replaces 0385663. |
| 20 |
0439001 |
RING SET, 0.020 in. O.S. This part replaces 0385662. |
| 21 |
0390982 |
PISTON, .020 o.s. |
| 21 |
5006658 |
Pstn&Ring Kit This part replaces 0390981. |
| 21 |
5006669 |
Pstn&Ring Kit .030 This part replaces 0390983. |
| 22 |
0327861 |
Wrist Pin This part replaces 0317818. |
| 23 |
5006383 |
CONNECTING ROD This part replaces 0387831. |

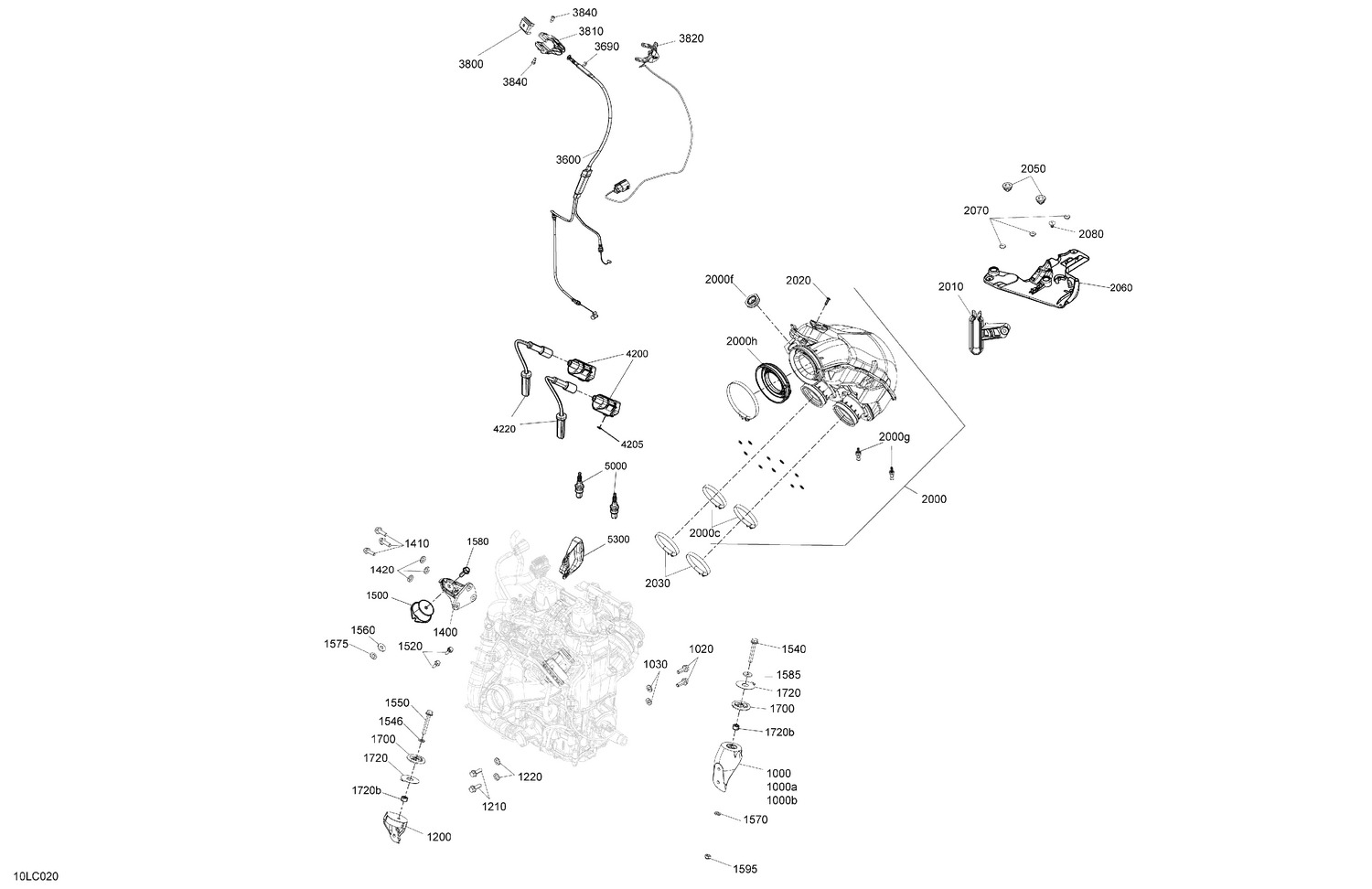

| 1000a |
512061024 |
Rear PTO Support |
| 1000b |
512061516 |
Vibration Damper |
| 1020 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1030 |
250200146 |
Conical Spring Washer M8 |
| 1200 |
512061025 |
Front PTO Support |
| 1210 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1220 |
250200146 |
Conical Spring Washer M8 |
| 1400 |
512061027 |
MAG Support |
| 1410 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1420 |
250200146 |
Conical Spring Washer M8 |
| 1500 |
512061514 |
Rubber Mount |
| 1520 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 1540 |
207585544 |
Hex. Flange Screw M8 X 55 |
| 1546 |
250200146 |
Conical Spring Washer M8 |
| 1550 |
207585544 |
Hex. Flange Screw M8 X 55 |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1575 |
250200146 |
Conical Spring Washer M8 |
| 1580 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 1585 |
503183200 |
Yellow, Washer |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061137 |
Engine Stopper |
| 1720a |
512061300 |
Spacer |
| 1720b |
512061198 |
Spacer |
| 2000c |
293650212 |
GEMI Clamp |
| 2000f |
512061083 |
Rubber |
| 2000g |
420441840 |
Distance Screw |
| 2000h |
508000805 |
Boot |
| 2010 |
512061325 |
Cable Guide |
| 2020 |
250000759 |
Torx Truss Pt K40 X 16 |
| 2030 |
293650212 |
GEMI Clamp |
| 2050 |
420201630 |
Rubber Cap |
| 2060 |
512061357 |
Airbox Support |
| 2070 |
293150103 |
Pop Rivet 3/16 |
| 2080 |
293150104 |
Pop Rivet 3/16 |
| 3600 |
512061442 |
Throttle Cable |
| 3690 |
414274500 |
Circlip |
| 3800 |
512060859 |
Upper Housing Ass'y |
| 3810 |
512060860 |
Lower Housing |
| 3820 |
512061266 |
Throttle Ass'y |
| 3840 |
250000991 |
Flanged Screw M5x12 |
| 4200 |
512061358 |
Ignition Coil |
| 4205 |
389804300 |
Push Nut |
| 4220 |
512061631 |
Spark Plug Cable Ass'y This part replaces 512061360. |
| 5000 |
415130429 |
Spark Plug NGK BPR8ES |
