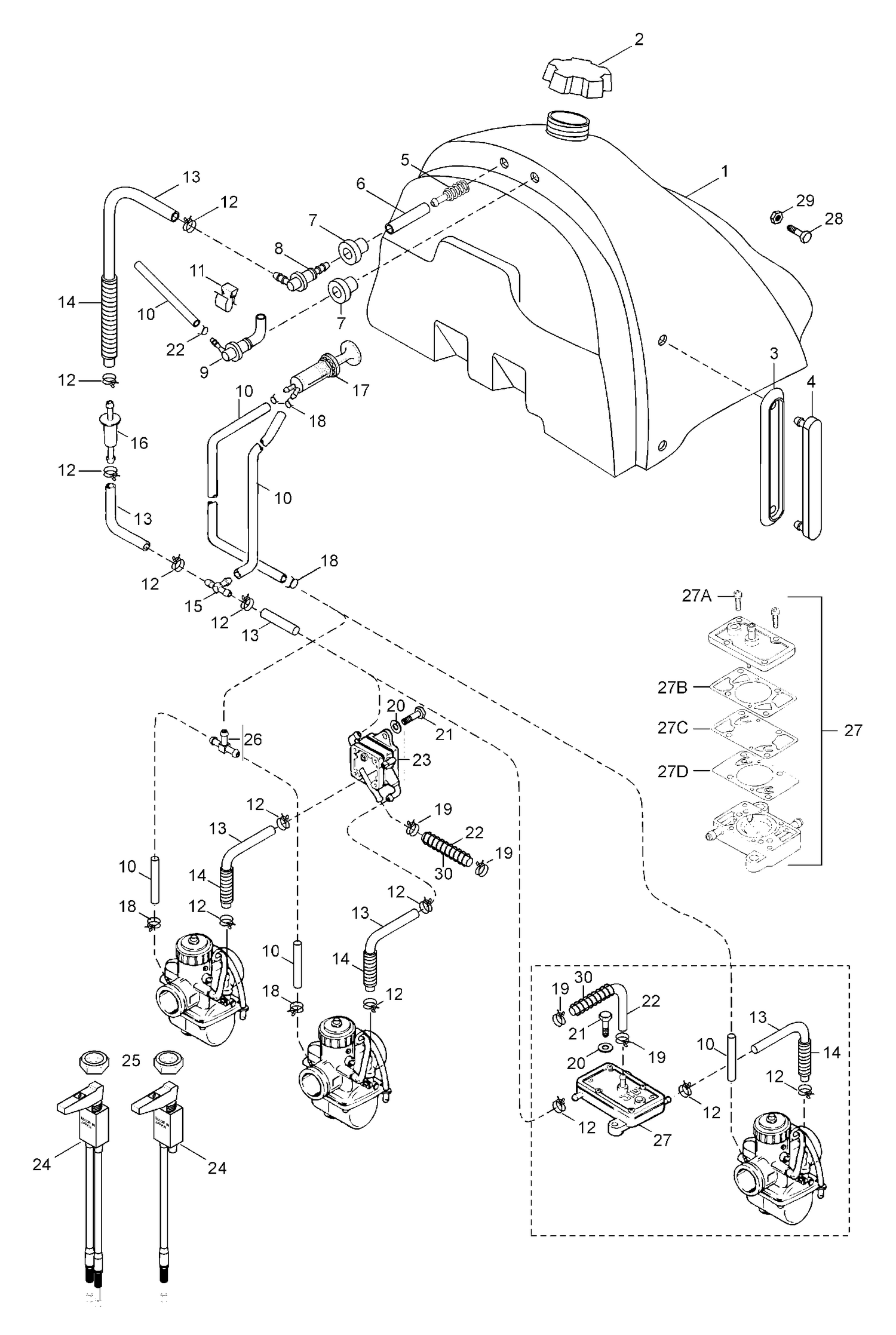

| Ref | Part Number | Description |
|---|
| 1 |
5241552 |
Fuel tank |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 572230500. |
| 3 |
570018000 |
Housing gauge |
| 4 |
572015900 |
Fuel gauge |
| 5 |
414872100 |
Fuel filter |
| 6 |
39048 |
Fuel line 13.5/8.5 |
| 7 |
280000674 |
Grommet This part replaces 28037. |
| 8 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 9 |
5442152 |
Air vent fitting |
| 10 |
39035 |
Air-line |
| 11 |
414227300 |
Clip |
| 12 |
27086 |
CLAMP - Call your local BRP dealership |
| 13 |
39004 |
Fuel line 8/5 |
| 14 |
28012 |
Tubing |
| 15 |
21067 |
T-fitting |
| 16 |
21065 |
Fuel filter |
| 17 |
415060500 |
Primer This part replaces 414479200. |
| 18 |
543230 |
Clamp |
| 19 |
414420700 |
Universal Spring Clamp |
| 20 |
20052 |
Spring washer |
| 21 |
40029 |
Screw M6x16 |
| 22 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 23 |
403800600 |
FUEL PUMP - Call your local BRP dealership |
| 24 |
535482 |
Cable choke |
| 25 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 26 |
21062 |
T-fitting |
| 27 |
Not |
Available As Spare Part - Fuel pump - DOES NOT APPLY TO THIS MODEL |
| 27A |
Not |
Available As Spare Part - Screw + washer - DOES NOT APPLY TO THIS MODEL |
| 27B |
Not |
Available As Spare Part - Gasket - DOES NOT APPLY TO THIS MODEL |
| 27C |
Not |
Available As Spare Part - Pump diaphgram - DOES NOT APPLY TO THIS MODEL |
| 27D |
Not |
Available As Spare Part - Pumpcase gasket - DOES NOT APPLY TO THIS MODEL |
| 28 |
40211 |
Screw M6x35 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
