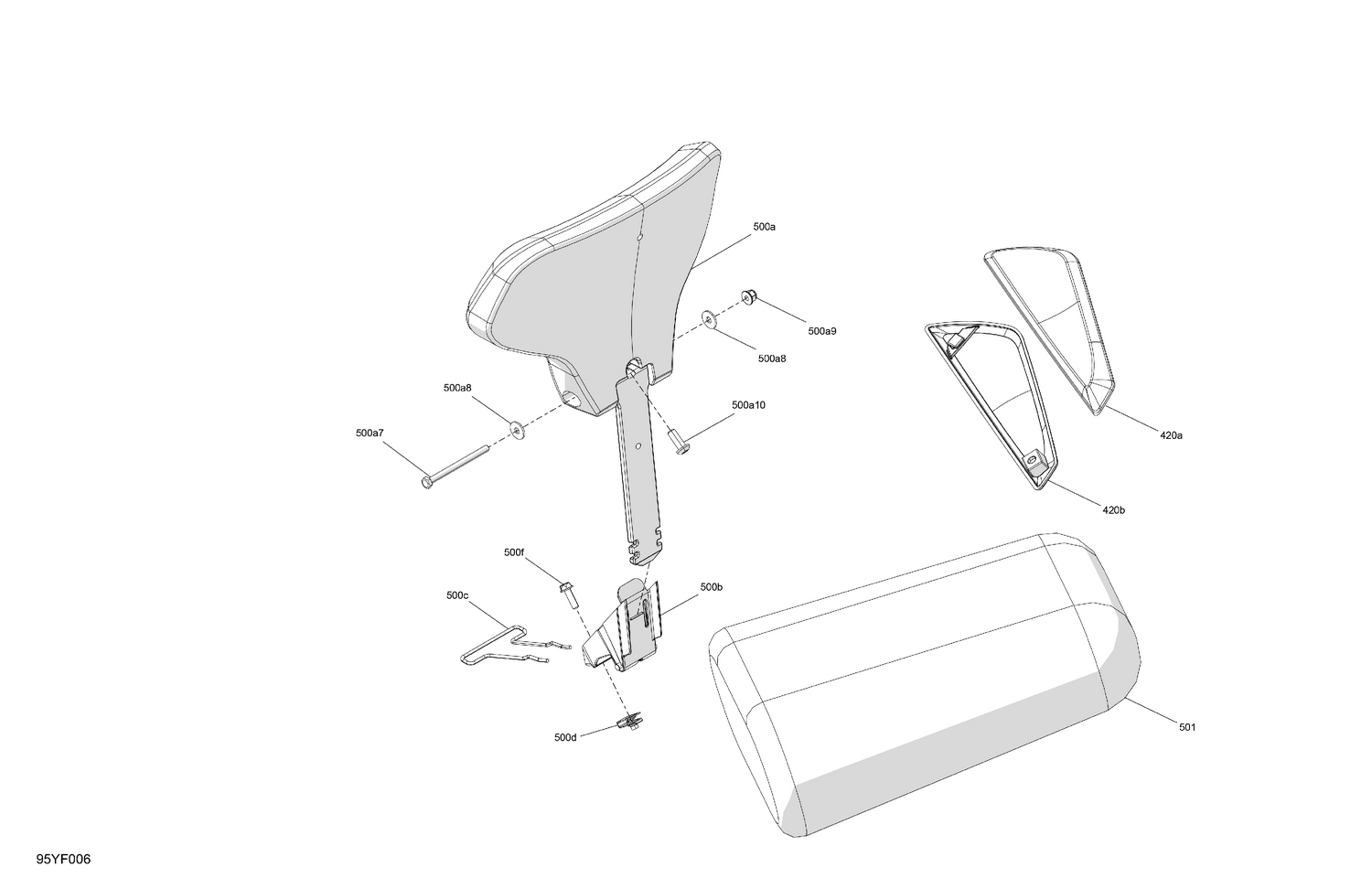

09- Miscellaneous - Utilities
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 420a | 705007411 | Black Deep, LH Windshield Cap |
| 420b | 705007412 | Black Deep, RH Windshield Cap |
| 500a10 | 250000885 | Head Screw M8 x 20 |
| 500a7 | 207068060 | Hex. Screw M6 x 80 |
| 500a8 | 234062600 | Flat Washer M6, Stainless |
| 500a9 | 233261494 | Hex. Flange Elastic Nut M6 |
| 500b | 708001678 | Backrest Slider |
| 500c | 708003188 | Latch Rod |
| 500d | 250100198 | Panel Nut M6 X 1.0 |
| 500f | 210262050 | Hexagonal Head Screw |
