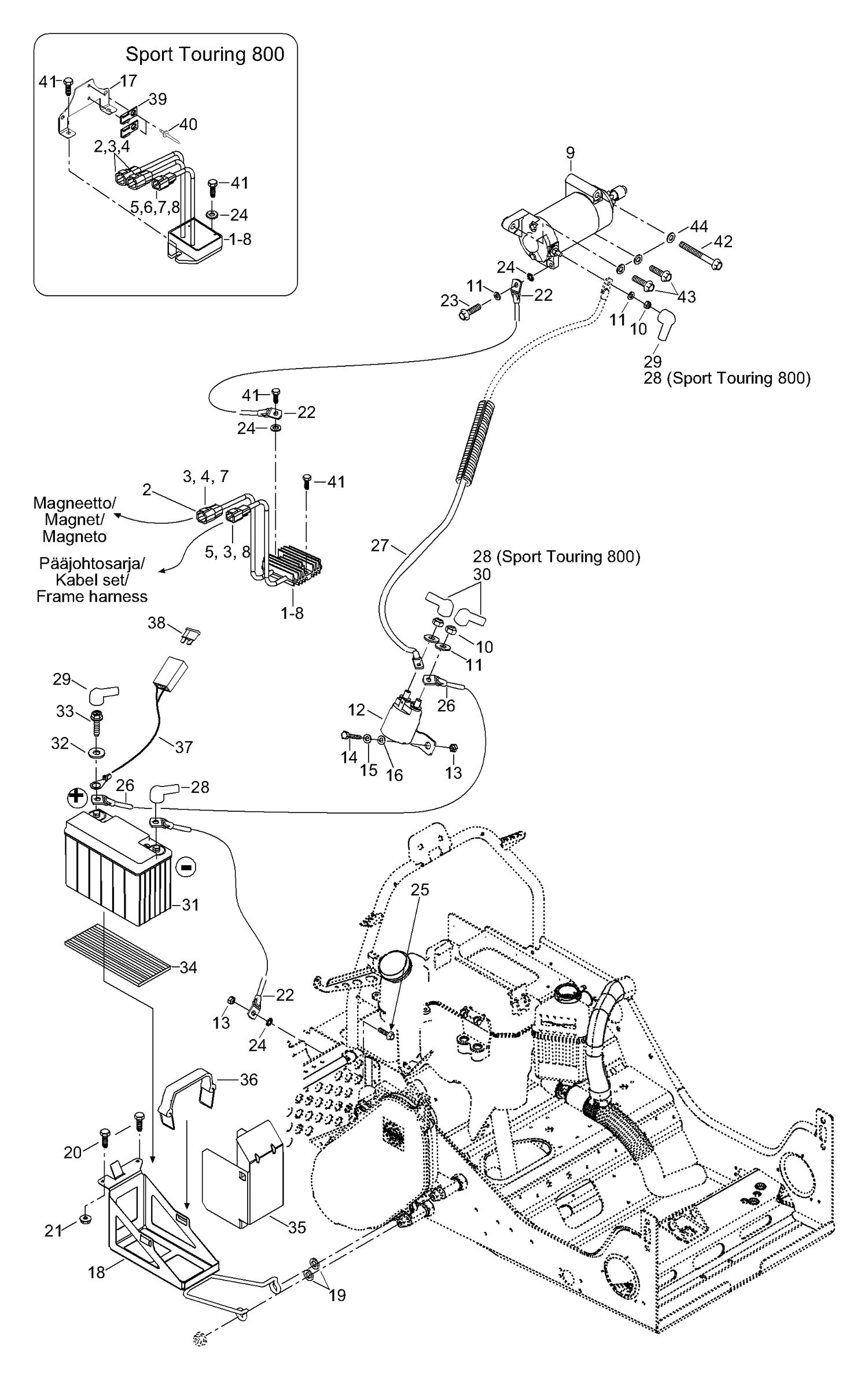

10- Electric Starter — Parts Catalog

Parts (41)

Ref	Part Number	Description
2	278001477	FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
3	515175568	Male terminal
4	278001478	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
5	409206900	Male Housing, 2 Circuits
6	278000631	Male terminal
7	293000052	Sealing Cap
8	409207500	Lock, female
9	515176133	Electric start This part replaces 515176003.
10	33010	Lock Nut M6 (1=10Pcs)
11	20003	Washer
12	515176011	Relay-starter
13	233261414	Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
14	40029	Screw M6 x 16
15	Not	Available As Spare Part - Spring washer - DOES NOT APPLY TO THIS MODEL
16	Not	Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL
17	515175923	Bracket
18	515175848	Battery support
19	20005	WASHER M10 - Call your local BRP dealership
20	40308	Allen screw M5 x 16
21	233251434	Flanged Elastic Nut M5 This part replaces 33062.
22	515175483	GROUND WIRE - Call your local BRP dealership
23	207361644	Screw M6 x 16
24	20017	Lock washer serrated
25	40029	Screw M6 x 16
26	515175555	Battery wire
27	5448151	Battery wire
28	570151000	Protector cap
29	Not	Available As Spare Part - Protector cap - DOES NOT APPLY TO THIS MODEL
30	Not	Available As Spare Part - Protector cap - DOES NOT APPLY TO THIS MODEL
32	391302100	FLAT WASHER - Call your local BRP dealership
33	207161644	Screw M6x16
34	5347314	Rubber
35	515175643	DEFLECTOR - Call your local BRP dealership
36	515176044	Retainer strap This part replaces 515175475.
37	Not	Available As Spare Part - Chargening wire - DOES NOT APPLY TO THIS MODEL
38	409003900	Fuse 20 A This part replaces 278001143.
39	Not	Available As Spare Part - Clip - DOES NOT APPLY TO THIS MODEL
40	Not	Available As Spare Part - Rivet - DOES NOT APPLY TO THIS MODEL
41	40322	SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership
42	207587544	Hex. Flange Screw M8 X 75, Scotch Grip
43	207583044	Hex. Flange Screw M8 X 30, Scotch Grip
