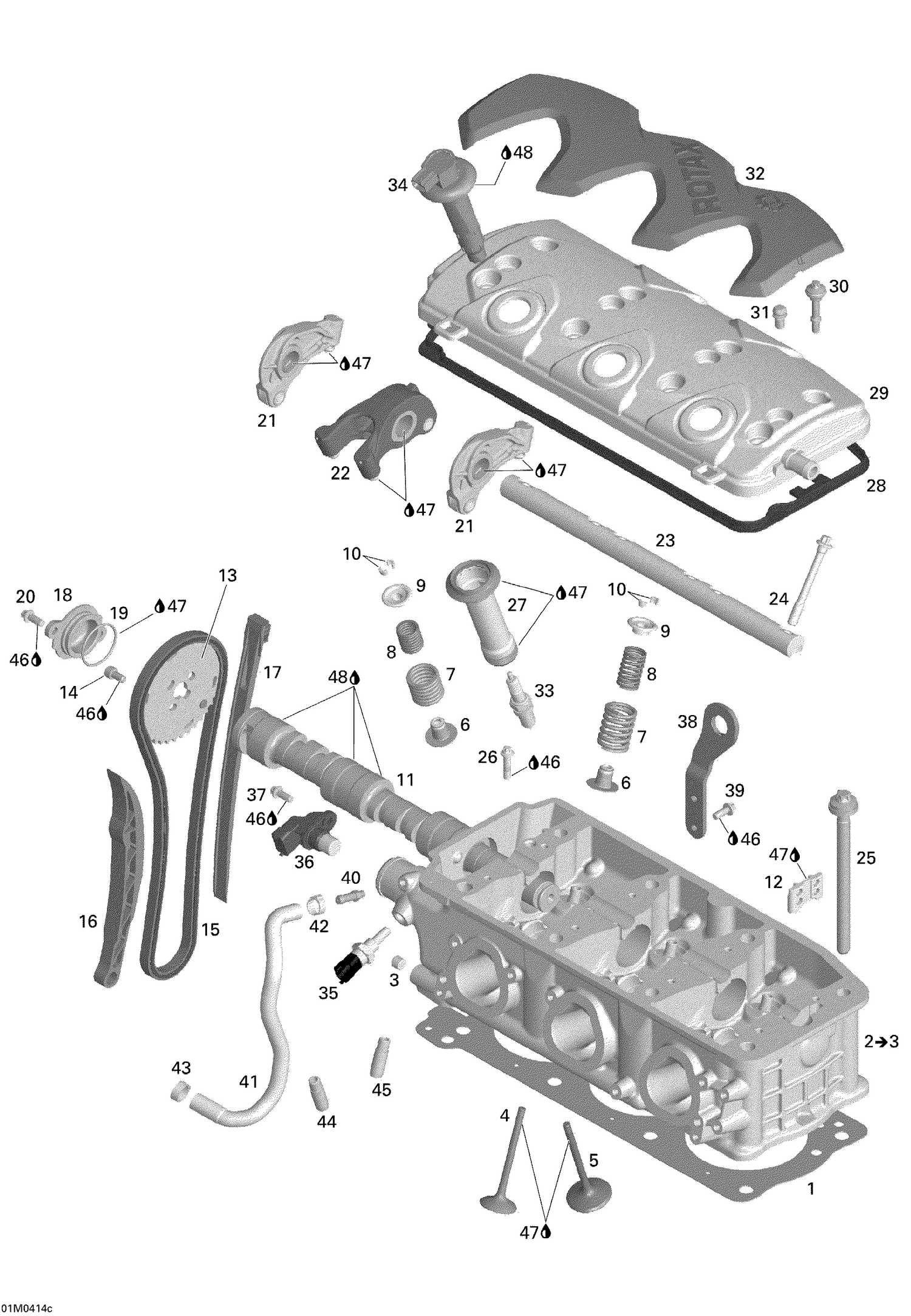

| Ref | Part Number | Description |
|---|
| 1 |
420950771 |
Cylinder Head Gasket This part replaces 420950770. |
| 3 |
420641323 |
Plug Screw M10 X 1 |
| 4 |
420254027 |
Exhaust Valve 31 mm |
| 5 |
420253163 |
Intake Valve 38MM This part replaces 420254290. |
| 6 |
420630202 |
Valve Steam Seal This part replaces 420630200. |
| 7 |
420238180 |
Valve Spring |
| 8 |
420838280 |
Valve Spring Inside |
| 9 |
420254283 |
Valve Spring Retainer This part replaces 420254280. |
| 10 |
420253645 |
Valve Cotter |
| 11 |
420837621 |
CAMSHAFT - Call your local BRP dealership |
| 12 |
420851694 |
Camshaft Guide This part replaces 420851692. |
| 13 |
420254309 |
Timing Gear, 38 Teeth This part replaces 420254307. |
| 14 |
420840032 |
Allen Screw M6 X 12 This part replaces 420841339. |
| 15 |
420898042 |
Camshaft Chain This part replaces 420898040. |
| 16 |
420236541 |
Chain Tension Guide This part replaces 420236540. |
| 17 |
420236501 |
Chain Guide This part replaces 420236500. |
| 18 |
420660100 |
CAMSHAFT COVER - Call your local BRP dealership |
| 19 |
420950870 |
O-Ring |
| 20 |
420641048 |
Torx Flange Screw M6 X 16 |
| 21 |
420254329 |
Rocker Arm, Exhaust This part replaces 420254326. |
| 22 |
420254316 |
Rocker Arm, Inner This part replaces 420254315. |
| 23 |
420854592 |
Rocker Arm Shaft |
| 24 |
420641080 |
Torx Screw M8 X 72 |
| 25 |
420641110 |
Torx Flange Screw M11 X 147 |
| 26 |
420641238 |
Torx Flange Screw M6 X 25 |
| 27 |
420851754 |
Spark Plug Pipe This part replaces 420851750. |
| 28 |
420950820 |
Valve Cover Gasket |
| 29 |
420811580 |
Valve Cover |
| 30 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420440560. |
| 31 |
420641488 |
TORX SCREW M6 X 8 - Call your local BRP dealership |
| 32 |
420660167 |
Valve Cover This part replaces 420660162. |
| 33 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 34 |
296000307 |
Ignition Coil Kit This part replaces 420664020. |
| 35 |
278002895 |
Temperature Sensor This part replaces 420222425. |
| 36 |
420664046 |
Camshaft Position Sensor Ass'y This part replaces 420664040. |
| 37 |
420641048 |
Torx Flange Screw M6 X 16 |
| 38 |
420951380 |
TRANSPORT BRACKET FRONT - Call your local BRP dealership This part replaces 420851612. |
| 39 |
420641048 |
Torx Flange Screw M6 X 16 |
| 40 |
420924724 |
Hose Nipple This part replaces 420924720. |
| 41 |
420822160 |
FORMED HOSE - Call your local BRP dealership |
| 42 |
420851458 |
Clamp |
| 43 |
293650125 |
Oetiker Clamp This part replaces 420853303. |
| 44 |
420253929 |
Valve Guide This part replaces 420253924. |
| 45 |
420253929 |
Valve Guide This part replaces 420253924. |
| 46 |
293800060 |
Loctite 243, 10 ml |
| 47 |
293600054 |
Synth Oil 4T 12x1 |
