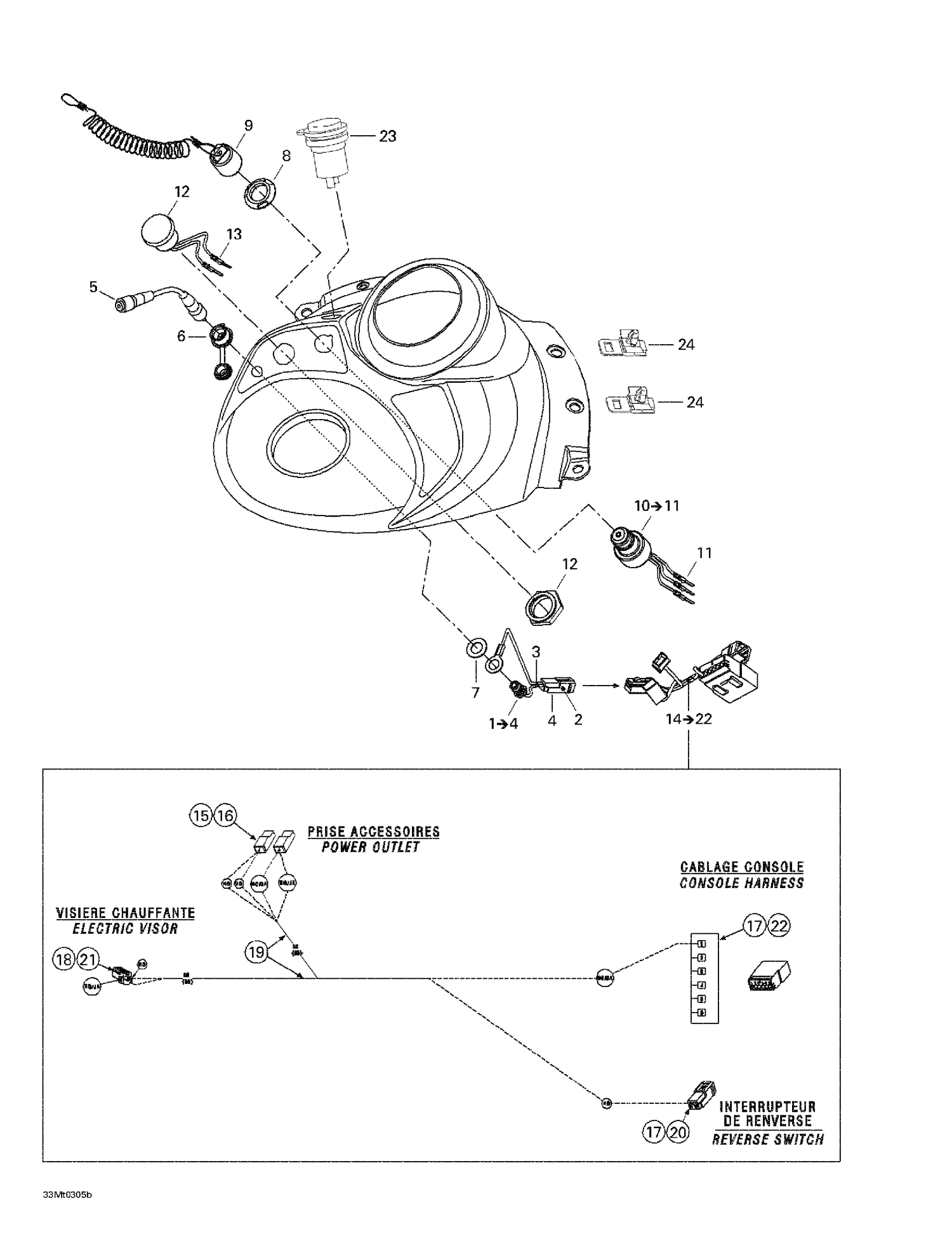

10- Electrical System - Console
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175232 | Male Terminal |
| 3 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 4 | 515175654 | Male Terminal Housing, 2 Circuits |
| 5 | 515175971 | EXTENSION - Call your local BRP dealership |
| 6 | 572103300 | Cap |
| 7 | 503175800 | Washer |
| 8 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 9 | 515178284 | DESS This part replaces 515166900. |
| 11 | 515175232 | Male Terminal |
| 12 | 515175952 | Reverse Knob |
| 13 | 515175232 | Male Terminal |
| 15 | 409010100 | Female Terminal |
| 16 | 409010400 | Female Terminal Housing, 1 Circuit |
| 17 | 515175232 | Male Terminal |
| 18 | 515175231 | Female Terminal |
| 19 | 515175314 | GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 20 | 515175654 | Male Terminal Housing, 2 Circuits |
| 21 | 515175658 | Female Housing, 2 Circuits |
| 22 | 515175662 | Male Terminal Housing, 6 Circuits |
| 23 | 861507200 | Outlet Power Kit, 12 Volts This part replaces 710000024. |
