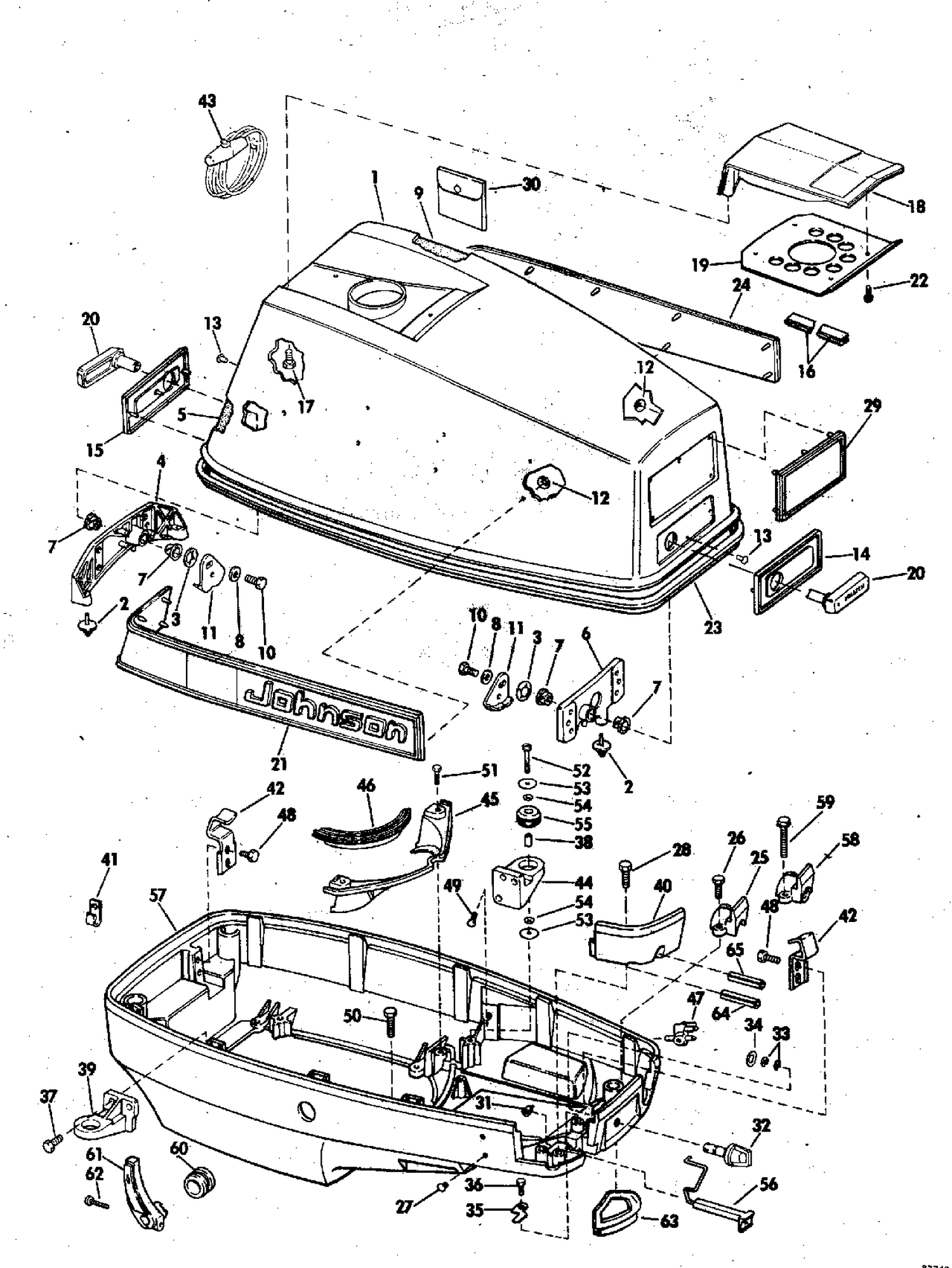

| Ref | Part Number | Description |
|---|
| 1 |
0385450 |
MOTOR COVER ASSY |
| 1 |
0385451 |
MOTOR COVER ASSY |
| 6 |
0316025 |
LOCATING BLANKET, Front |
| 10 |
0552062 |
SCREW, Clamp |
| 13 |
0314135 |
RIVER, Locating bracket |
| 14 |
0317107 |
APPLIQUE, Front handle |
| 15 |
0317112 |
APPLIQUE |
| 16 |
SEAL,Baffle |
Ref: 17 0324644 SCREW, Solecoid mounting This part replaces 0316194. 0324644 |
| 18 |
0316082 |
TILT HANDLE |
| 19 |
0316077 |
BAFFLE, Tilt handle |
| 20 |
0322568 |
HANDLE & SHAFT This part replaces 0384963. |
| 21 |
0317719 |
APPLIQUE,Stbd |
| 22 |
0316195 |
SCREW |
| 24 |
0317718 |
APPLIQUE,Port |
| 25 |
0318286 |
CLAMP |
| 27 |
0317895 |
PLUG, Lower motor cover |
| 29 |
0317722 |
APPLIQUE,Motor cover front |
| 30 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 31 |
0313329 |
LOCKWASHER, Carburetor link |
| 32 |
0315708 |
ADJ.KNOB SLOW SPEED |
| 33 |
0315786 |
RETAINER, Knob |
| 34 |
0316403 |
SPRING WASHER |
| 35 |
0316061 |
SPRING, Choke knob |
| 36 |
0313117 |
SCR,Clamp,eng cable |
| 37 |
0551793 |
SCREW |
| 38 |
0302406 |
SLEEVE |
| 39 |
0316003 |
SUPPORT, Front stbd |
| 40 |
0318284 |
CLAMP, Cable |
| 41 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 42 |
0323474 |
HOOK, Cover to housing This part replaces 0316069. |
| 43 |
0378347 |
CORDE DE LANCEUR |
| 44 |
0316002 |
SUPPORT, Front port |
| 45 |
0318557 |
FRAME, Front |
| 46 |
0316064 |
SEAL, Frame |
| 47 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 48 |
0306487 |
SCREW |
| 49 |
0313117 |
SCR,Clamp,eng cable |
| 50 |
0300646 |
VIS, ancrage |
| 51 |
0312299 |
VIS, serre-câble |
| 52 |
0308995 |
SCREW, Front mount |
| 55 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 56 |
0385370 |
CHOKE KNOB & ROD |
| 56 |
0385371 |
CHOKE KNOB & ROD |
| 57 |
0318282 |
LOWER MOTOR COVER |
| 57 |
0385753 |
MOTOR COVER,Lower |
| 58 |
0385752 |
COVER & EYELET ASSY |
| 59 |
0307151 |
SCREW |
| 60 |
0317405 |
GROMMET, Lever to cover |
| 61 |
0317387 |
SHIFT LEER |
| 63 |
0318574 |
SEAL, Steering arm |
| 64 |
0307066 |
SLEEVE, Shift cable |
| 65 |
0318807 |
SLEEVE, Throttle cable |
| 0385759 |
0385759 |
OWNER'S MANUAL |
| 0386141 |
0386141 |
DECAL SET |
| 0386142 |
0386142 |
DECAL SET |
