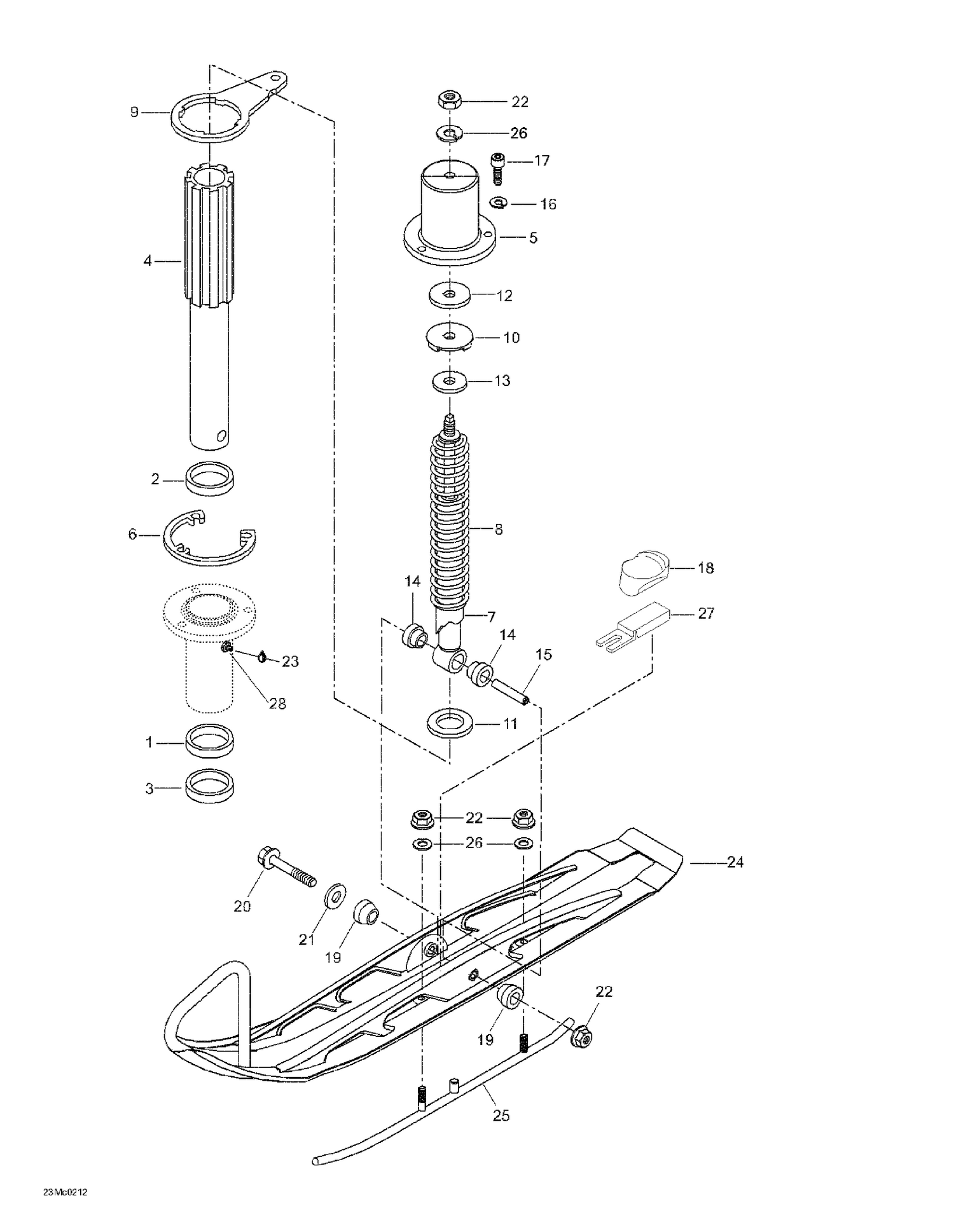

| Ref | Part Number | Description |
|---|
| 1 |
414803200 |
Lower Cushion |
| 2 |
414803100 |
Upper Cushion |
| 3 |
316373 |
Seal - Call your local BRP dealership This part replaces M316373. |
| 4 |
M5243952 |
Ski Leg |
| 5 |
M5240019 |
Welded cover |
| 6 |
503145600 |
SPACER - Call your local BRP dealership |
| 7 |
414803600 |
SHOCK - Call your local BRP dealership |
| 8 |
M5240897 |
Spring |
| 9 |
5340383 |
Steering Arm 8Te This part replaces M5340383. |
| 10 |
570025800 |
Stopper |
| 11 |
549493 |
Washer This part replaces M549493. |
| 12 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M5440399. |
| 13 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M549492. |
| 14 |
572034500 |
Cushion |
| 15 |
549716 |
Ski Cushion This part replaces M549716. |
| 16 |
234181401 |
Lock Washer 8 mm |
| 17 |
205082044 |
Socket Head Screw M8 X 20 |
| 18 |
M5341750 |
STOPPER - Call your local BRP dealership |
| 19 |
547543 |
Cone Rubber This part replaces M547543. |
| 20 |
M40354 |
Hex. Screw M10 X 125 |
| 21 |
M20012 |
WASHER-BLACK - Call your local BRP dealership |
| 22 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 23 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 24 |
M5245338 |
Welded Ski |
| 25 |
M5345694 |
Ski runner |
| 26 |
234001410 |
Flat Washer 10 mm |
| 27 |
M5445639 |
Support Plate |
