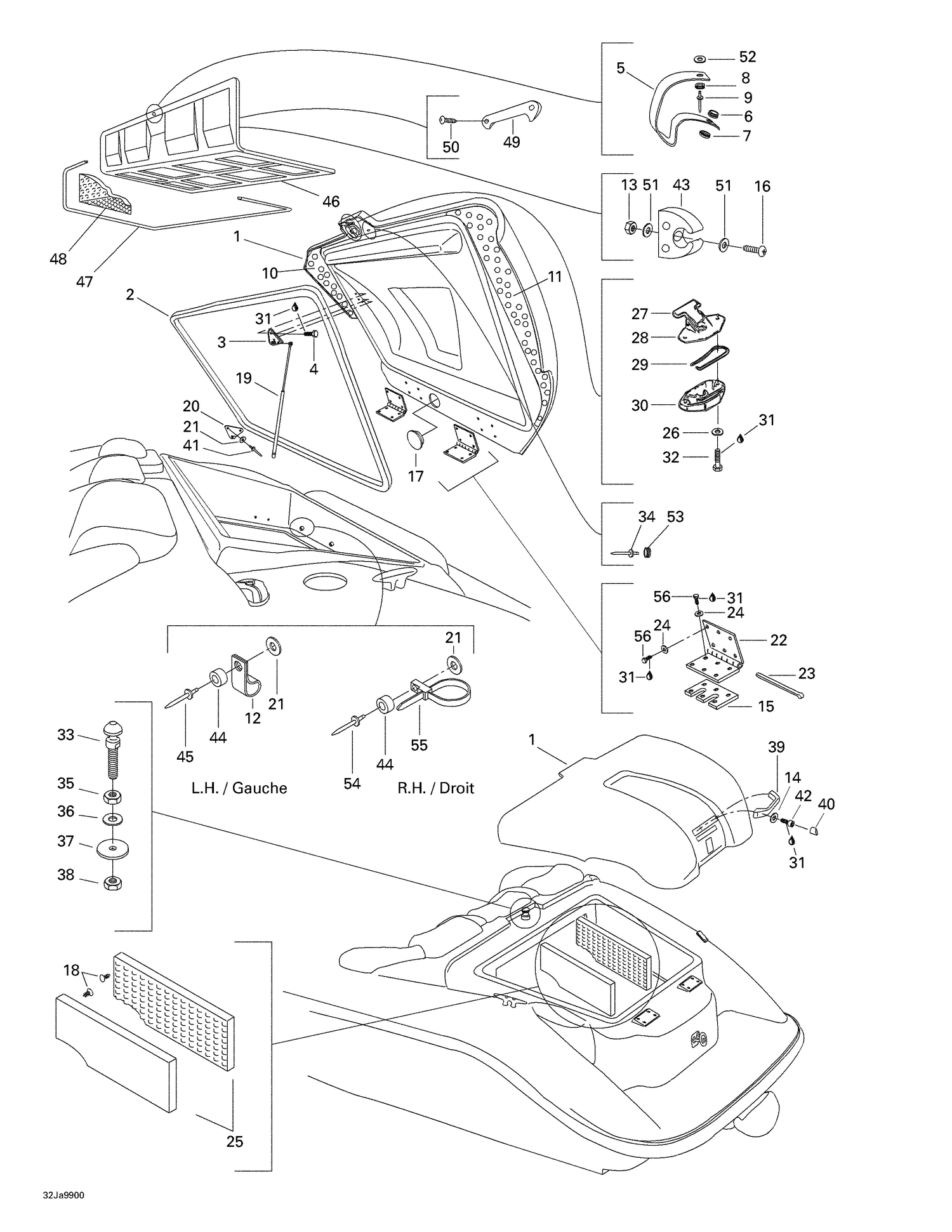

09- Engine Compartment
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 295500373 | Engine Cover |
| 2 | 219704365 | Was 293200017 Neoprene Seal |
| 3 | 291000654 | CYLINDER SUPPORT - Call your local BRP dealership |
| 4 | 207151660 | HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 5 | 204000075 | Nylon Strap (Black) (Meter) |
| 6 | 204000083 | SNAP BASE - Call your local BRP dealership |
| 7 | 204000085 | SNAP COVER - Call your local BRP dealership |
| 8 | 204000084 | BOTTOM SNAP - Call your local BRP dealership |
| 9 | 293150015 | Pop Rivet 1/8” |
| 10 | 204320011 | LH Foam Cover |
| 11 | 204320012 | RH Foam Cover |
| 12 | 414839700 | Clip Cable |
| 13 | 232541600 | Elastic Stop Nut M4 |
| 14 | 234061600 | Stainless Flat Washer M6 |
| 15 | 204070047 | SPACER 3.2 MM - Call your local BRP dealership |
| 16 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 17 | 293720017 | GROMMET - Call your local BRP dealership |
| 18 | 293730006 | Black, Dart |
| 19 | 204070199 | Cylinder |
| 20 | 291000615 | Shock Support |
| 21 | 234051600 | Flat Washer M5, Stainless |
| 23 | 204070205 | Cotter Pin M2.5 X 12 |
| 24 | 234061600 | Stainless Flat Washer M6 |
| 25 | 237500012 | LH Engine Compartment Foam |
| 26 | 234061600 | Stainless Flat Washer M6 |
| 27 | 269700109 | Latch Ass'y This part replaces 269000016. |
| 28 | 269700109 | Latch Ass'y This part replaces 269700020. |
| 29 | 269700017 | Latch Spring |
| 30 | 269700109 | Latch Ass'y This part replaces 269000015. |
| 31 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 32 | 207162560 | Hex. Screw M6 X 25 |
| 33 | 204700001 | Latch Stud |
| 34 | 293150015 | Pop Rivet 1/8” |
| 35 | 232100600 | Hex. Jam Nut M10 |
| 36 | 234002600 | Flat Washer 10 mm, Stainless |
| 37 | 291000628 | RUBBER WASHER - Call your local BRP dealership |
| 38 | 232501600 | HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 40 | 204070025 | Snap Cap (Marine) |
| 41 | 293150043 | Pop Rivet 3/16" |
| 42 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 43 | 291000642 | Pole Support |
| 44 | 293830043 | Rubber Stopper |
| 45 | 293150014 | Pop Rivet 3/16" |
| 46 | 295500299 | Access Cover |
| 47 | 219704368 | Seal Tray 1000Mm Long |
| 48 | 237500013 | Luggage Foam |
| 49 | 291000608 | HANDLE, WHITE - Call your local BRP dealership |
| 50 | 241141660 | Hex. Flange Screw K40 X 16 |
| 51 | 234040600 | Flat Washer 4 mm |
| 52 | 234032600 | Flat Washer M3, Stainless |
| 53 | 204000084 | BOTTOM SNAP - Call your local BRP dealership |
| 54 | 293150013 | Pop Rivet 3/16" |
| 55 | 293750017 | Tie-Rap |
| 237500011 | Engine | Foam R.H 237500011 |
