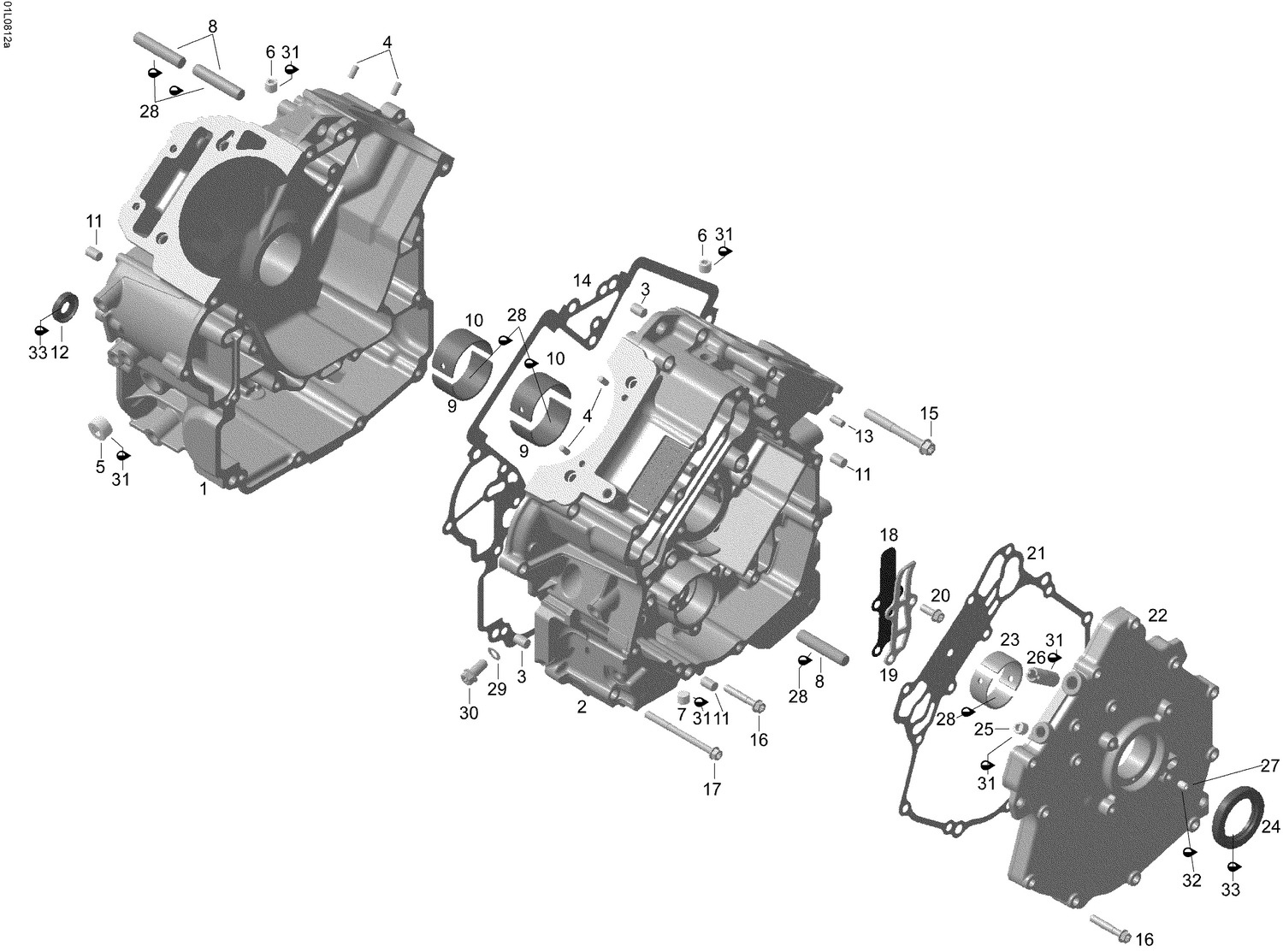

01- Crankcase
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Crankcase MAG |
| 2 | Not | Available As Spare Part - Crankcase PTO |
| 3 | 420632010 | Center Pin 8 X 12 |
| 4 | 420929650 | Pin |
| 5 | 420240170 | Plug |
| 6 | 420641323 | Plug Screw M10 X 1 |
| 7 | 420840651 | PLUG SCREW M12 X 1.5 - Call your local BRP dealership |
| 8 | 420229302 | Location Pin This part replaces 420229301. |
| 9 | 420233960 | Bearing sleeve |
| 10 | 420233965 | Bearing sleeve |
| 11 | 420632010 | Center Pin 8 X 12 |
| 12 | 420650315 | Oil Seal This part replaces 420650310. |
| 13 | 420932780 | Pin |
| 14 | 420651220 | Gasket |
| 15 | 420440402 | Hex. screw M8 x 65 |
| 16 | 420641258 | Hex. screw M6 x 35 |
| 17 | 420440657 | Flanged Torx Screw M6 X 75 This part replaces 420440652. |
| 18 | 420224721 | Valve Plate This part replaces 420224720. |
| 19 | 420224725 | Reed valve stop |
| 20 | 420641048 | Hex. screw M6 x 16 |
| 21 | 420651211 | Gasket This part replaces 420651210. |
| 23 | 420233995 | Bearing half |
| 24 | 420631933 | Oil Seal This part replaces 420631932. |
| 25 | 420641323 | Plug Screw M10 X 1 |
| 26 | 420256332 | Hose nipple |
| 27 | 420841771 | SET SCREW M6 X 8 - Call your local BRP dealership |
| 28 | 293600054 | Engine oil 4 strokes, 0W40, 12 x 1 liter |
| 29 | 420950141 | Sealing Ring A 8X13 DIN 7603 |
| 30 | 420440852 | Flanged Torx Screw M8 X 16 |
| 31 | 293800060 | Loctite 243, 10 ml |
| 32 | 219703000 | Sealant Loctite 648 This part replaces 420899788. |
