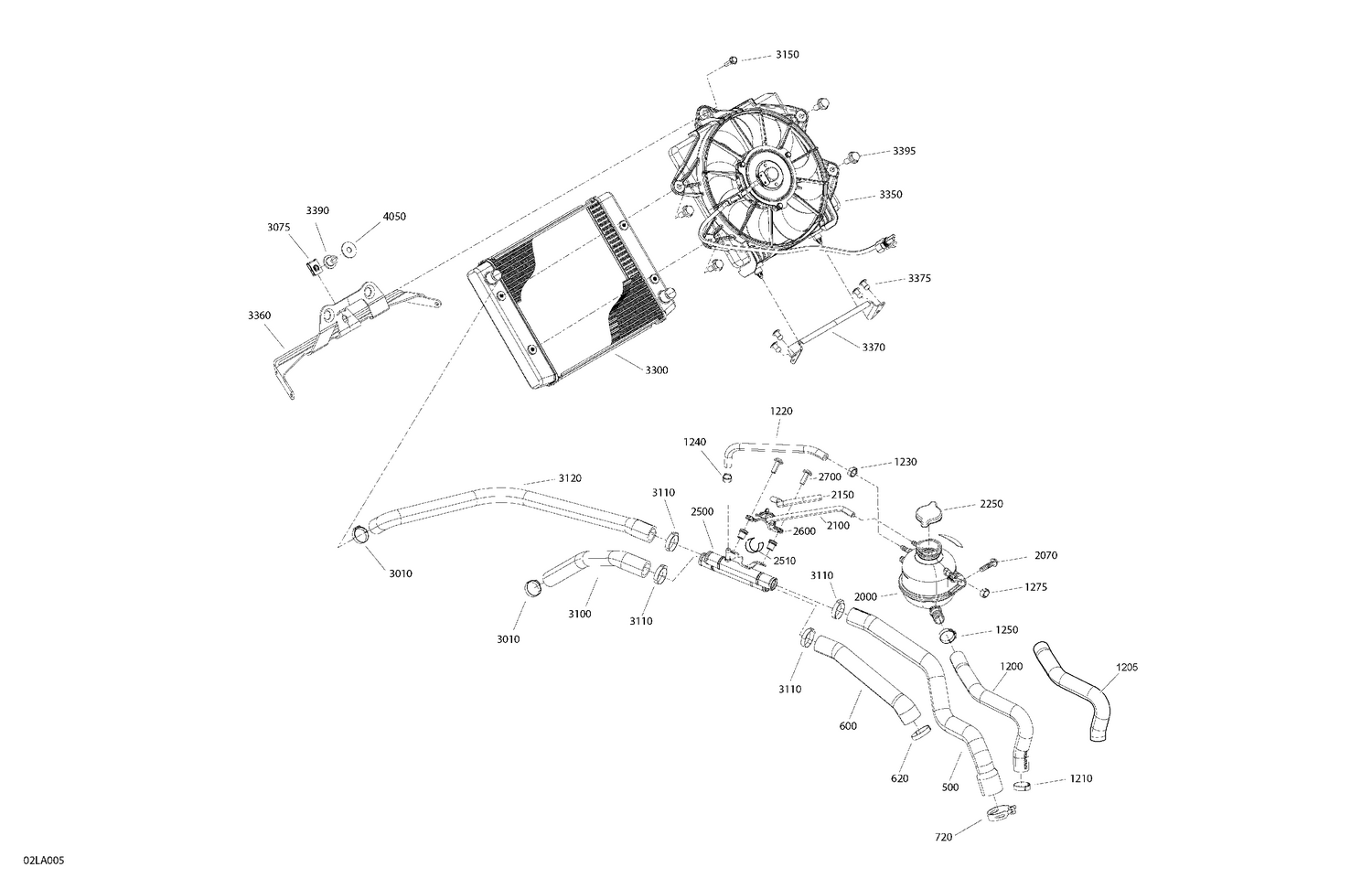

02- Engine - Cooling
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001275 | Radiator Hose In |
| 600 | 509001013 | Engine Outlet Hose |
| 620 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001083 | Hose Coolant Tank |
| 1205 | 509000513 | Protector Tube 32 mm |
| 1210 | 293650099 | Oetiker Gear Clamp |
| 1220 | 509001035 | Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001033 | Cooling Tank |
| 2070 | 241152060 | Hex. Flange Screw K50 X 20 |
| 2100 | 415110000 | Polyurethane Hose 5.2 mm |
| 2150 | 503195447 | Protector Tube |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500 | 509001030 | Coolant Pipe |
| 2510 | 512061214 | Protector |
| 2600 | 509001049 | Clamp |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 3010 | 293650099 | Oetiker Gear Clamp |
| 3075 | 250100208 | Panel Nut M6 X 1.0 |
| 3100 | 509001350 | Radiator Hose IN This part replaces 509001085. |
| 3110 | 293650141 | Oetiker Gear Clamp |
| 3120 | 509001084 | Hose Radiator Out |
| 3150 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3300 | 509001057 | Radiator Front |
| 3350 | 509001114 | Fan |
| 3360 | 509001204 | Central Radiator Support |
| 3370 | 509001024 | Lower Radiator Support |
| 3375 | 390909100 | Avex Rivet |
| 3390 | 293900100 | BUSHING |
| 3395 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 4050 | 250200082 | Flat Washer |
