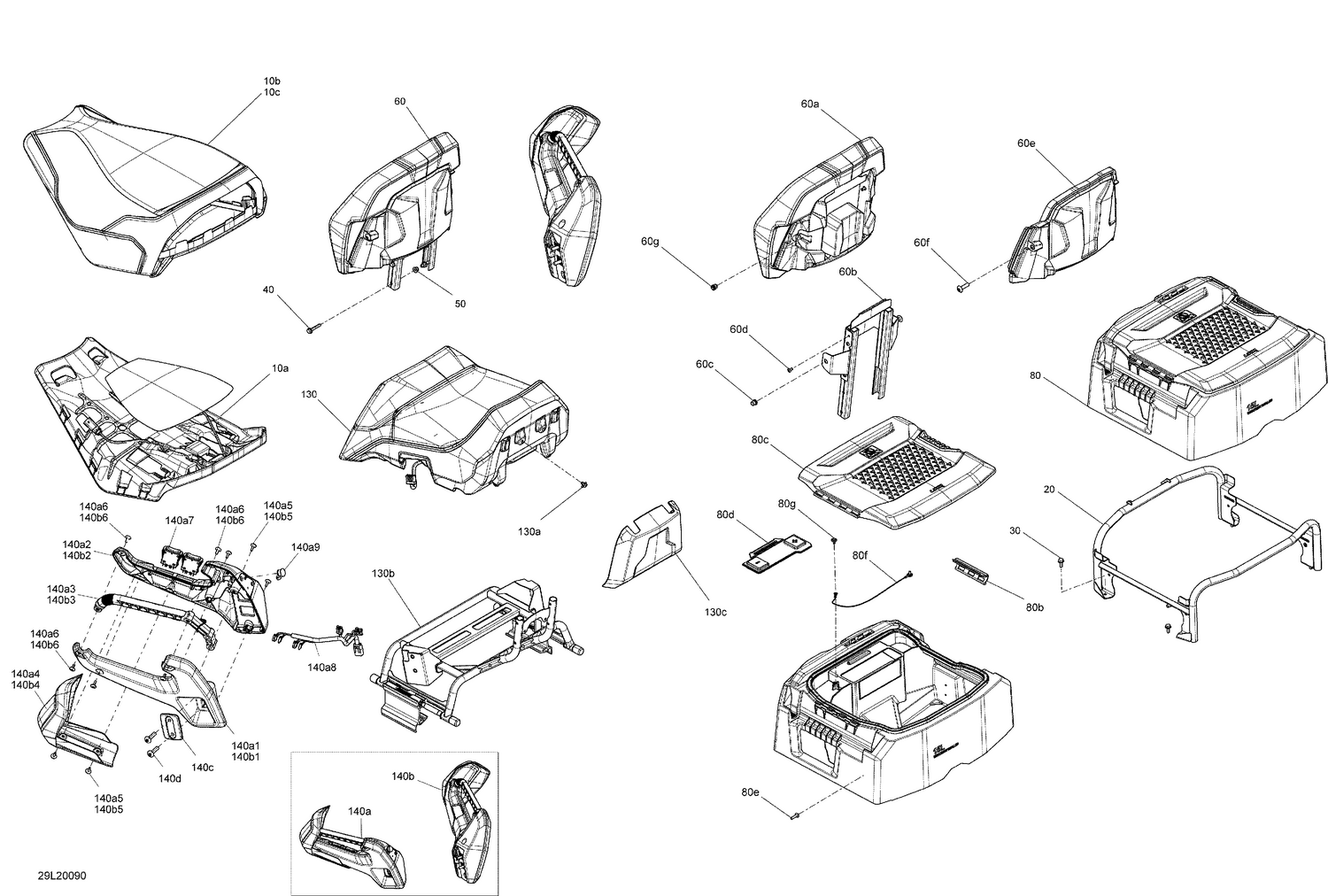

09- Seat - Main Section - GT
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006721 | Seat Base |
| 10b | 510008182 | Front Foam Seat This part replaces 510006722. |
| 10c | 510006724 | Seat Cover |
| 20 | 510007010 | Seat Support Ass'y |
| 30 | 207661644 | Hex. Flange Screw M6 X 16 |
| 40 | 207663544 | Hex. Flange Screw M6 X 35 |
| 50 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 60a | 510006886 | Foam And Upholstery Ass'y |
| 60c | 250100065 | Clinching Nut Hexert M8 |
| 60d | 390909200 | Avex Rivet |
| 60e | 510006734 | Backrest Support |
| 60g | 250100065 | Clinching Nut Hexert M8 |
| 80b | 269502449 | Latch This part replaces 269502402. |
| 80c | 511001274 | Box Cover |
| 80d | 510006789 | Access Cover |
| 80e | 250000724 | Torx Screw M5 X 20 |
| 80f | 293750092 | Retaining Cable |
| 80g | 250000805 | Plastite Screw M4 X 10 |
| 130a | 293150027 | Avdel Rivet |
| 130b | 510006817 | Passenger Chassis Module Ass'y |
| 130c | 510006848 | Seat Trim |
| 140a | 510006814 | LH Heated Passenger Hand Hold Ass'y |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a2 | XXX | Not Available As Spare Parts |
| 140a3 | 510006488 | Passenger Heated Handhold |
| 140a4 | 510006495 | LH Passenger Handle Deflector |
| 140a5 | 250000889 | Screw M4 X 16 |
| 140a6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140a7 | 515178505 | Rocker Switch |
| 140a8 | 515178665 | Wiring Harness Heated Grip |
| 140a9 | 572103300 | Cap |
| 140b | 510006485 | RH Heated Passenger Hand Hold Ass'y |
| 140b1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140b2 | XXX | Not Available As Spare Parts |
| 140b3 | 510006488 | Passenger Heated Handhold |
| 140b4 | 510006495 | LH Passenger Handle Deflector |
| 140b5 | 250000889 | Screw M4 X 16 |
| 140b6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
