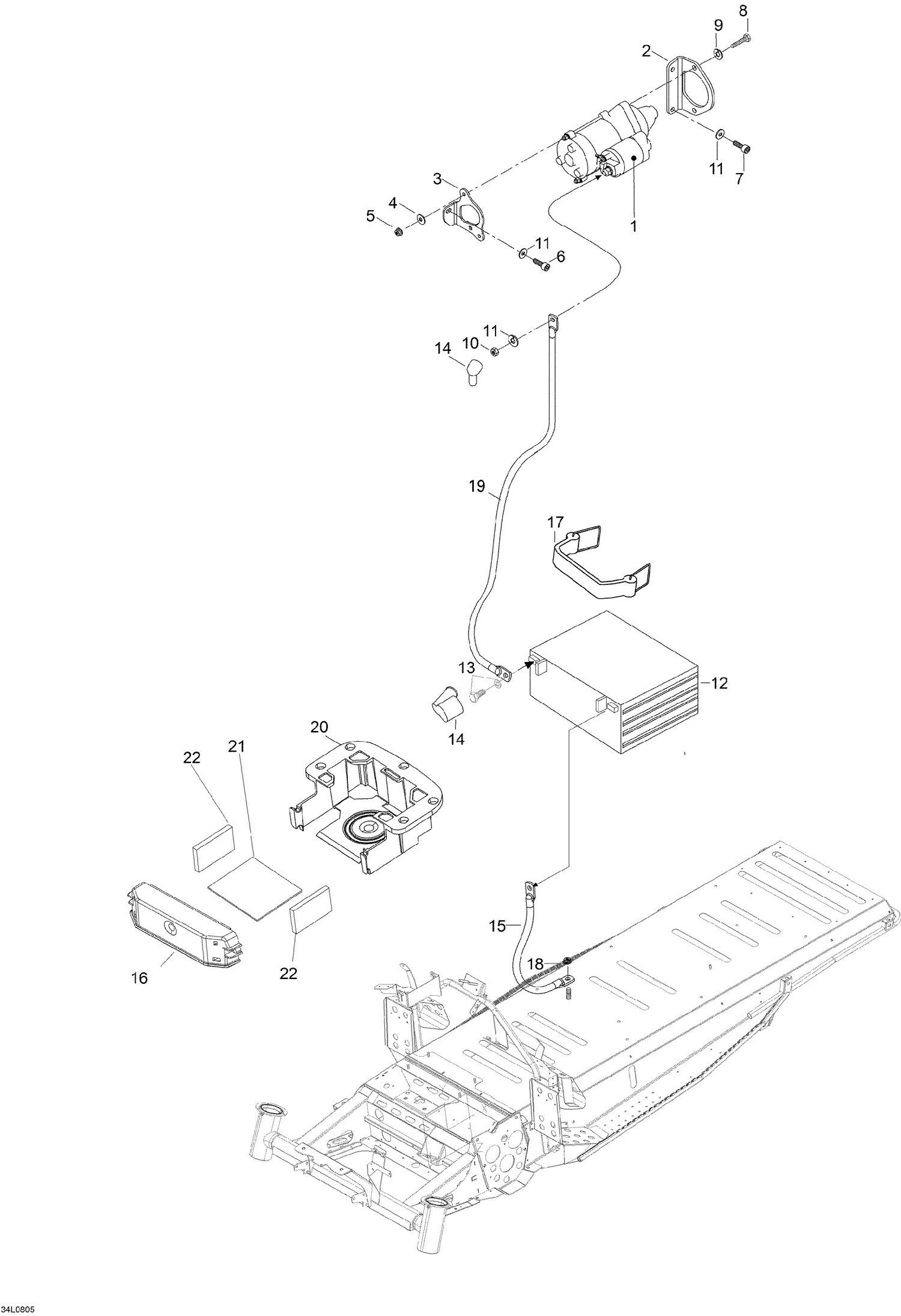

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 3 |
420951426 |
STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 4 |
20008 |
Washer |
| 5 |
33009 |
Elastic stop nut M5 |
| 6 |
40066 |
Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
40305 |
Socket head screw M8 x 20 |
| 8 |
40036 |
Hex. screw M8 x 20 |
| 9 |
20014 |
Lock washer |
| 10 |
33003 |
Nut M8 |
| 11 |
20014 |
Washer |
| 13 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 14 |
570151000 |
Protector cap |
| 15 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 16 |
605255586 |
BATTERY COVER - Call your local BRP dealership |
| 17 |
605356180 |
Battery strap This part replaces 515175955. |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 20 |
605255588 |
Battery Holder - Call your local BRP dealership |
| 21 |
605355846 |
FOAM - Call your local BRP dealership |
