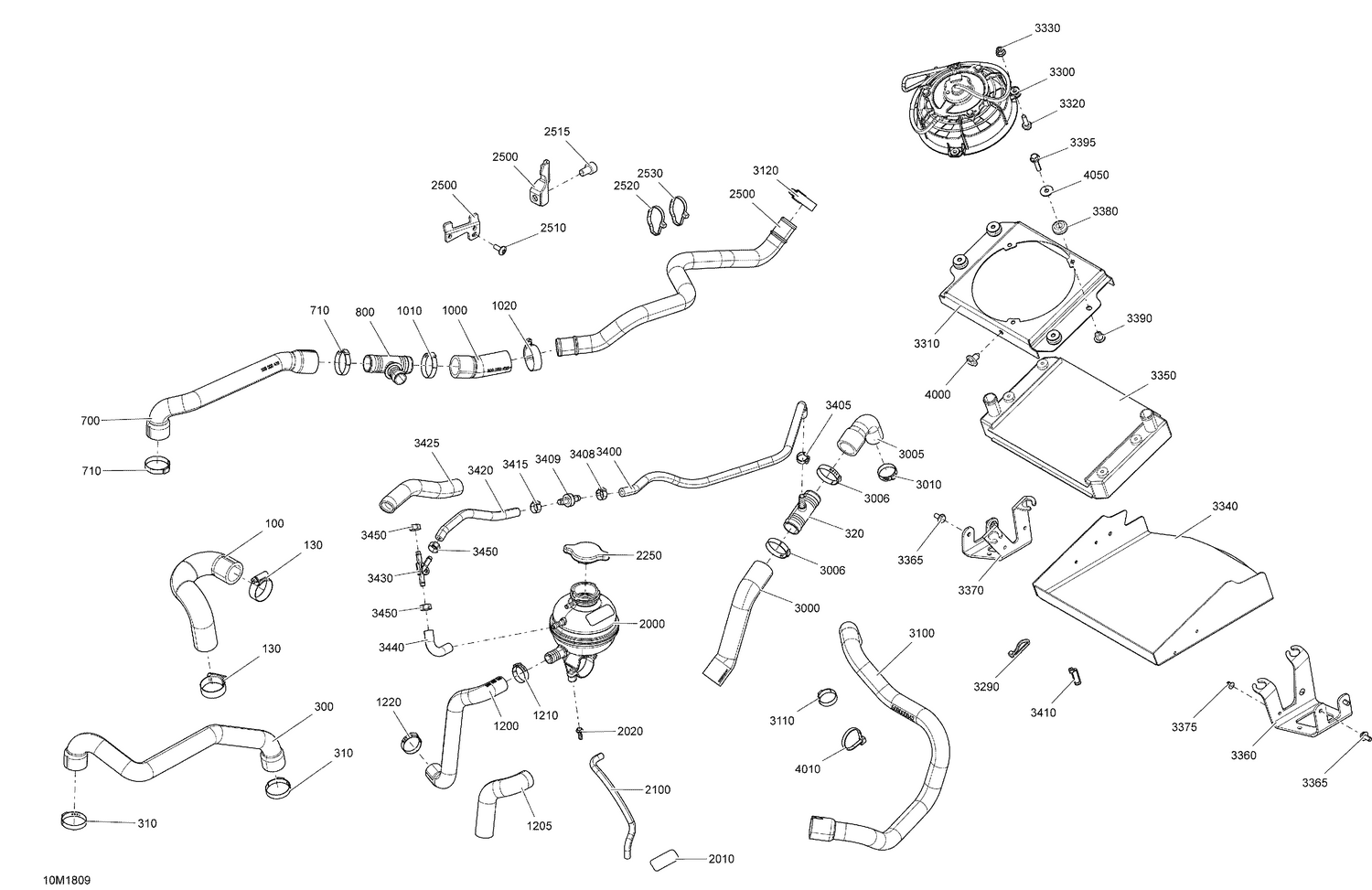

01- Cooling - 1200 4-TEC
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000440 | Outlet Hose |
| 130 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 300 | 509000370 | RADIATOR HOSE - Call your local BRP dealership |
| 310 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 320 | 509000510 | T-Fitting |
| 700 | 509000439 | Radiator Hose |
| 710 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 800 | 509000372 | T-Fitting |
| 1000 | 509000438 | Radiator Hose |
| 1010 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509000441 | Hose |
| 1205 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 293650099 | Crimp Clamp |
| 2000 | 509000937 | Réservoir Antigel |
| 2010 | 516005904 | Warning Decal |
| 2020 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500 | 509000938 | WATER PIPE - Call your local BRP dealership |
| 2510 | 250000365 | Torx Screw M6 X 16 |
| 2515 | 205501644 | Socket Screw M10 X 16 |
| 3000 | 509000941 | RADIATOR HOSE - Call your local BRP dealership |
| 3005 | 509000944 | Radiator Hose |
| 3006 | 509000162 | Gear Clamp |
| 3010 | 293650099 | Crimp Clamp |
| 3100 | 509000942 | RADIATOR HOSE - Call your local BRP dealership |
| 3110 | 293650099 | Crimp Clamp |
| 3120 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3300 | 709200573 | Fan |
| 3310 | 509000714 | Fan Support |
| 3320 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3330 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3340 | 509000835 | Air Inlet Deflector |
| 3350 | 509000488 | Radiator |
| 3360 | 509000933 | Support |
| 3365 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3370 | 509000934 | Support |
| 3375 | 390909100 | Avex Rivet |
| 3380 | 709000582 | Grommet This part replaces 293720053. |
| 3390 | 293900100 | Bushing |
| 3395 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3400 | 509000940 | BREATHER HOSE - Call your local BRP dealership |
| 3405 | 293650047 | Crimp Clamp, 15.3-706R |
| 3408 | 293650125 | Oetiker Clamp |
| 3409 | 509000153 | Check Valve |
| 3415 | 293650125 | Oetiker Clamp |
| 3420 | 509001069 | Hose-formed This part replaces 509000765. |
| 3425 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 3430 | 293710140 | Y-Fitting |
| 3440 | 509001070 | Hose This part replaces 509000776. |
| 3450 | 293650046 | Oetiker Clamp |
| 4000 | 293730040 | Mount Dart |
| 4050 | 250200082 | Flat Washer |
| 4088 | 414115200 | Tie-Rap 180 mm |
