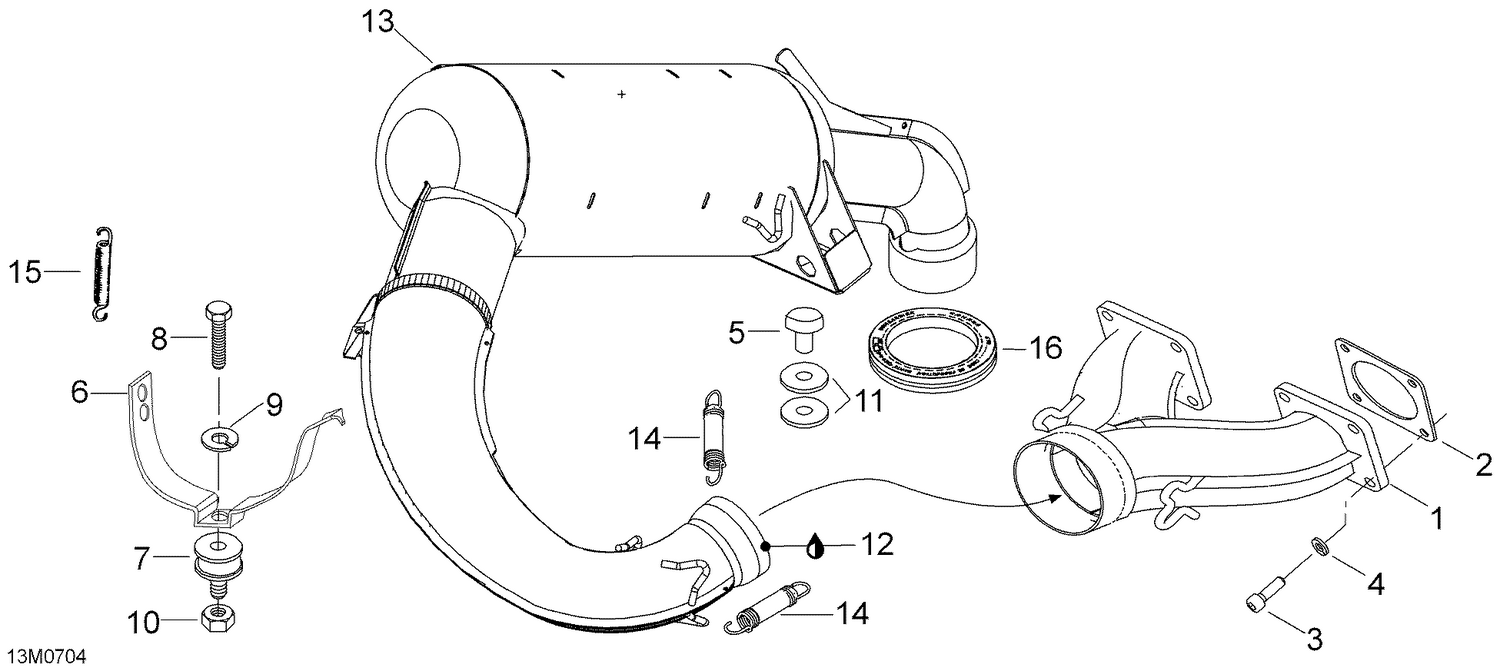

01- Exhaust System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420879459 | Exhaust Manifold |
| 2 | 420850114 | GASKET - Call your local BRP dealership |
| 3 | M40135 | Socket Head Screw M8 X 30 |
| 4 | 234181401 | Lock Washer 8 mm |
| 5 | 570044700 | Rubber Bumper |
| 6 | M535108 | Support |
| 7 | M28245 | Rubber Bumper |
| 8 | M40034 | Screw |
| 9 | 234181401 | Lock Washer 8 mm |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 20077 | M8 Washer This part replaces M20077. |
| 12 | 293800090 | Sealant, Loctite, 80 ml |
| 13 | 420979823 | Muffler_Exhaust - Call your local BRP dealership |
| 14 | 420938796 | Spring This part replaces 420938795. |
| 15 | M543225 | Spring |
