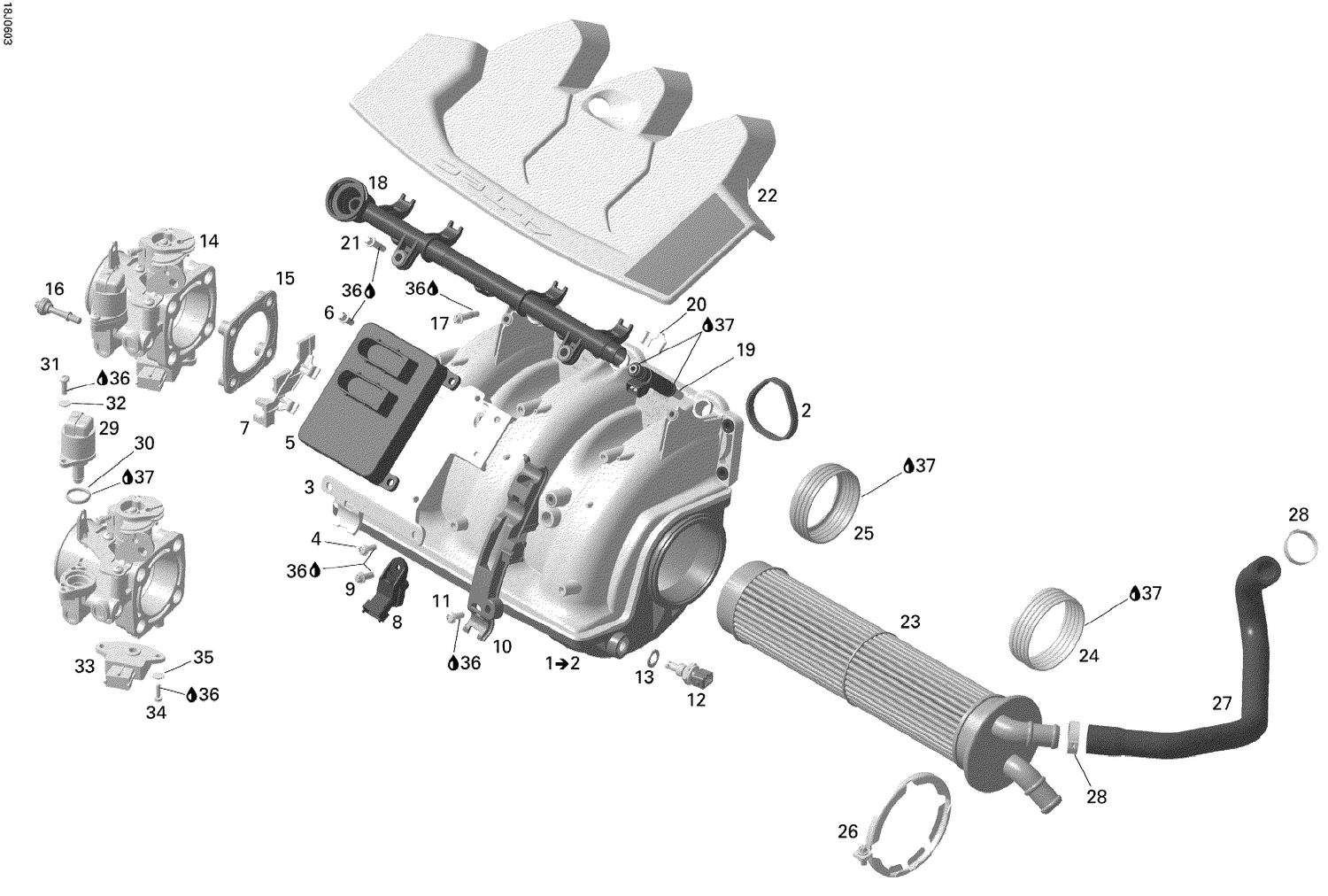

| Ref | Part Number | Description |
|---|
| 2 |
420950740 |
Gasket |
| 3 |
420851521 |
BASE PLATE - Call your local BRP dealership |
| 4 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 5 |
420664946 |
ELECTRONIC BOX - Call your local BRP dealership |
| 6 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 7 |
420660402 |
CONNECTOR BRACKET - Call your local BRP dealership |
| 8 |
420274058 |
Pressure Sensor This part replaces 420274057. |
| 9 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 10 |
420660410 |
WIRING SUPPORT - Call your local BRP dealership |
| 11 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 12 |
420222421 |
Temperature Sensor This part replaces 420222429. |
| 13 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 14 |
420892450 |
Throttle Body This part replaces 420889026. |
| 15 |
420950792 |
Rubber Gasket |
| 16 |
420440568 |
Hex Screw M6 X 30 This part replaces 420440567. |
| 17 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 420440237. |
| 18 |
420874391 |
FUEL RAIL ASS'Y - Call your local BRP dealership |
| 19 |
420874520 |
Fuel Injector |
| 20 |
420853030 |
Injector Clip This part replaces 420851531. |
| 21 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 420440237. |
| 22 |
270000677 |
COVER ASS'Y - Call your local BRP dealership This part replaces 270000654. |
| 23 |
420889654 |
Intercooler This part replaces 420889652. |
| 24 |
420631990 |
PROFILE RING - Call your local BRP dealership |
| 25 |
420631995 |
Profile Ring |
| 26 |
420853253 |
Gear Clamp |
| 27 |
420822173 |
FORMED HOSE - Call your local BRP dealership This part replaces 420822172. |
| 28 |
420851673 |
Gear Clamp |
| 29 |
420963051 |
Idle Bypass Valve This part replaces 420963050. |
| 30 |
420631780 |
O-Ring |
| 31 |
420440911 |
Binding Head Screw M5 X 16 |
| 32 |
420845710 |
Snap Ring |
| 33 |
420866120 |
Position Sensor This part replaces 270000251. |
| 34 |
208641660 |
Phillips Screw M4 X 16 |
| 35 |
234042600 |
Flat Washer 4 mm, Stainless |
| 36 |
293800060 |
Loctite 243, 10 ml |
