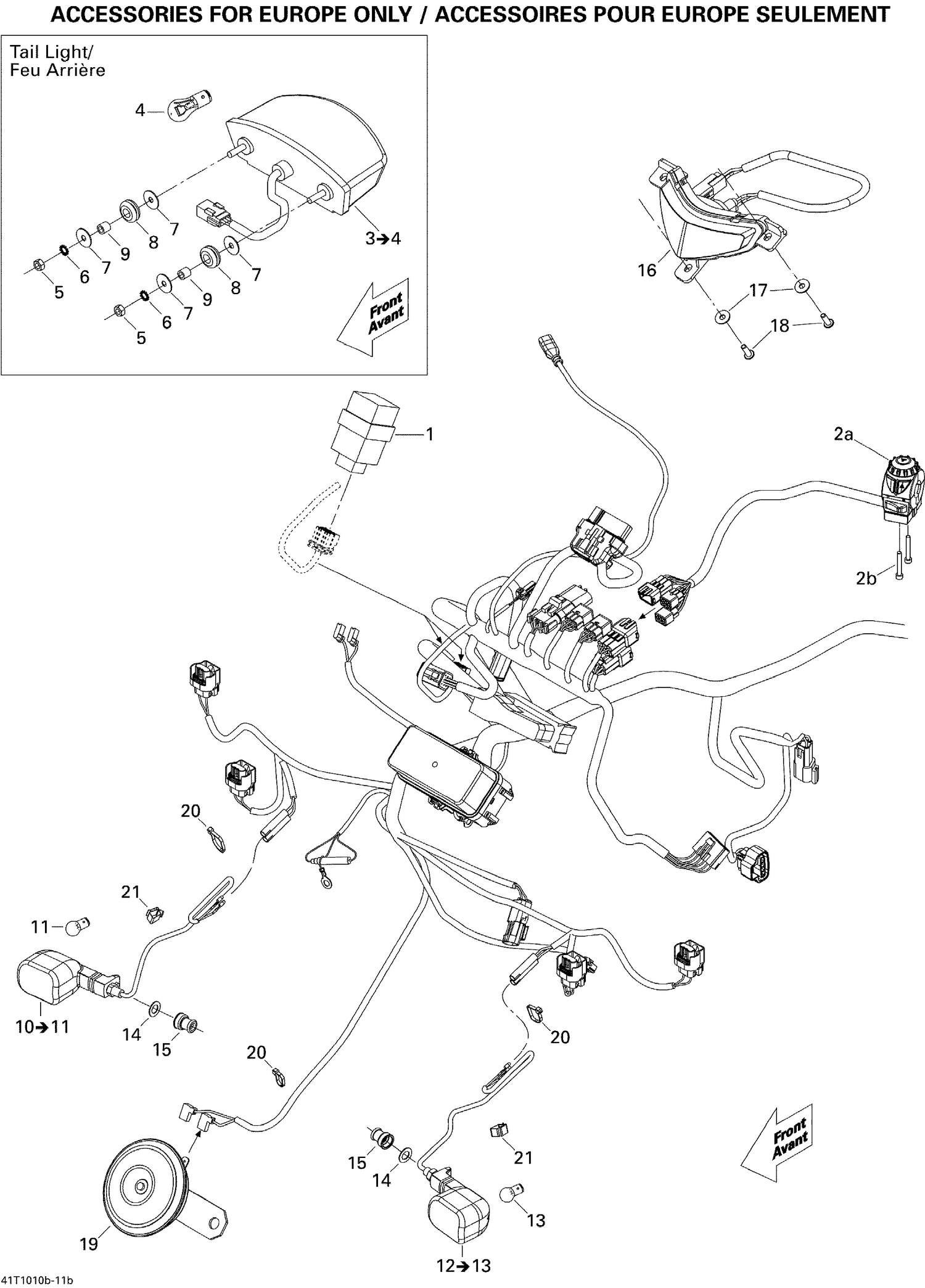

10- Electrical Accessories Europe
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710001447 | FLASHER UNIT - Call your local BRP dealership |
| 2a | 710001428 | Multi function Handle |
| 2b | 710001428 | Multi function Handle |
| 4 | 520000758 | Bulb This part replaces 410504100. |
| 5 | 232061600 | Hex. Nut M6 |
| 6 | 234461608 | External Serrated Lock Washer 6 mm |
| 7 | 224060201 | Flat Washer |
| 8 | 709000582 | Grommet This part replaces 293720053. |
| 9 | 293900105 | Bushing This part replaces 293900045. |
| 11 | 710000662 | Flasher Bulb |
| 13 | 710000662 | Flasher Bulb |
| 14 | 503175800 | Washer |
| 15 | 710001826 | CAP GUARD - Call your local BRP dealership |
| 16 | 710001042 | Day Light |
| 17 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 18 | 241641040 | PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 19 | 710004791 | Horn This part replaces 710000983. |
| 20 | 414115200 | Tie-Rap 180 mm |
